Description

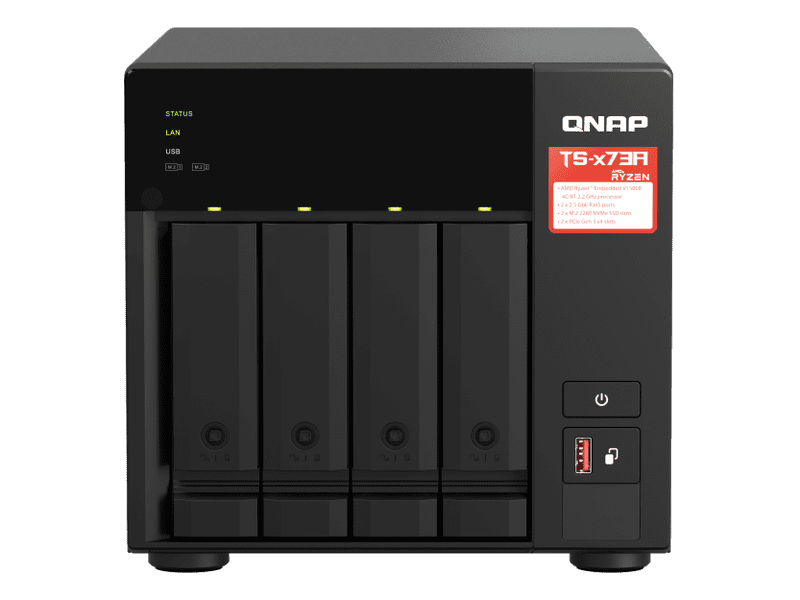

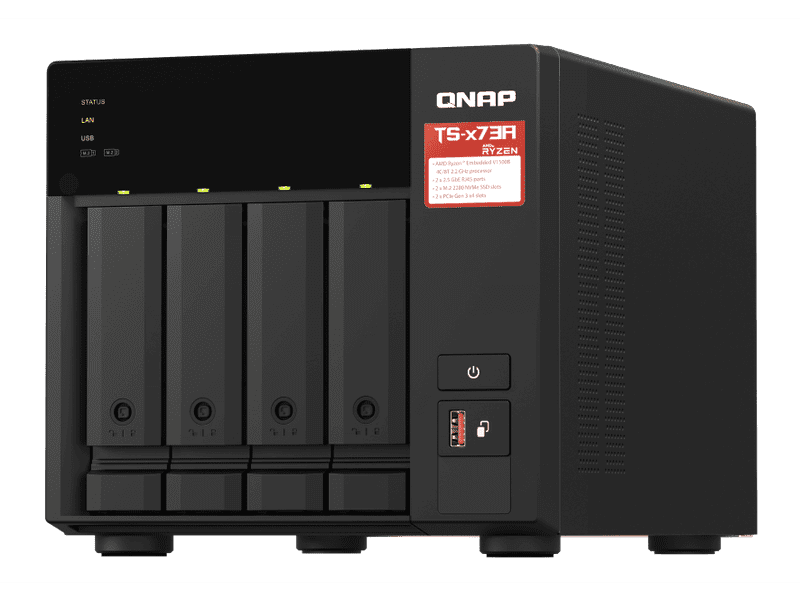

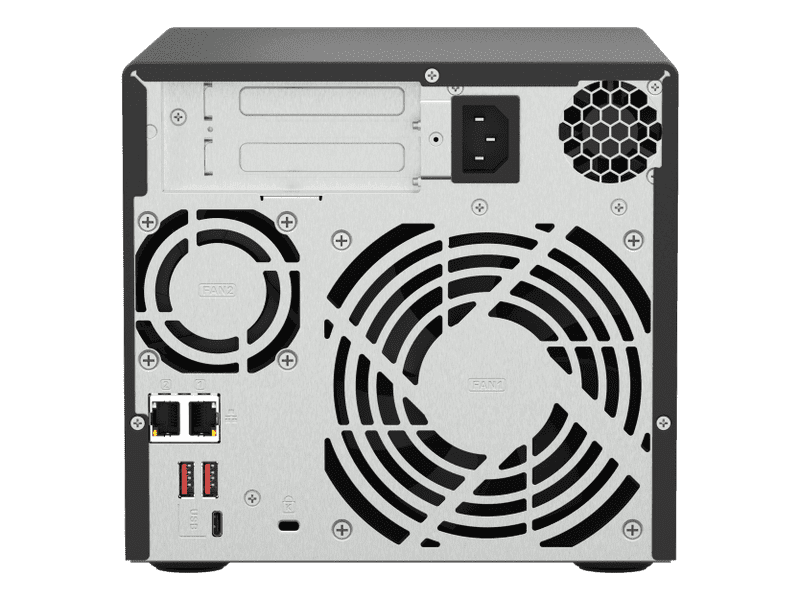

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
-
2.5GbE connectivity
Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
Flexible PCIe expansion
Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
-
GPU applications
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
SSD cache acceleration
Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
-
Virtualization applications
Host containerized applications and virtual machines with various operating systems.
-
Supports QTS/QuTS hero OS
Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Learn More: 2.5GbE Solution, QSW series Switches
Specifications
CPU | AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor |
CPU Architecture | 64-bit x86 |
Graphic Processors | Optional via a PCIe adapter |
Floating Point Unit | ✓ |
Encryption Engine | ✓(AES-NI) |
Hardware-accelerated Transcoding | Optional via a PCIe adapter |
System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
Maximum Memory | 64 GB (2 x 32 GB) |
Memory Slot | 2 x SO-DIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable |
✓
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
SSD Cache Acceleration Support | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
10 Gigabit Ethernet Port | Optional via a PCIe adapter |
Wake on LAN (WOL) | ✓ |
Jumbo Frame | ✓ |
PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps |
IR Sensor | ✓(QNAP RM-IR004) |
HDMI Output | Optional via a PCIe adapter |
Form Factor | Tower |
LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
Buttons | Power, Reset, USB Auto Copy |
Dimensions (HxWxD) | 188.2 × 199.3 × 280.8 mm |
Weight (Net) | 5.03 kg |
Weight (Gross) | 6.04 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
Power Consumption: HDD Sleep Mode | 19.576 W |
Power Consumption: Operating Mode, Typical | 29.792 W
Tested with drives fully populated.
|
Fan | System fan: 1 x 120mm CPU fan: 1 x 60mm |
Sound Level | 21.4 db(A) |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
