Description
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

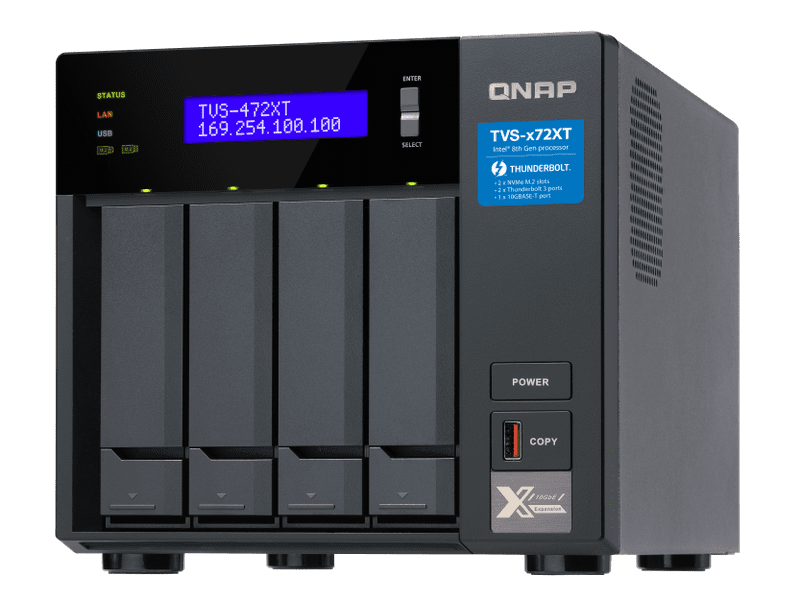

Powered by an 8th generation Intel® Pentium® Gold processor, the high-performance TVS-472XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
- High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.
- 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
- PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
- Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
- 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Specifications
CPU | Intel® Pentium G5400T 2-core 3.1 GHz Processor |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics 610 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | |
System Memory | 4 GB SODIMM DDR4 (2 x 2 GB) |
Maximum Memory | 32 GB ( 2 x 16 GB) |
Memory Slot | 2 x SO-DIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Drive Bay | 4 x 3.5-inch |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
SSD Cache Acceleration Support | |
Gigabit Ethernet Port (RJ45) | 2 |
10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
Jumbo Frame | |
Thunderbolt Port | 2 |
PCIe Slot | 2 Slot 1: PCIe Gen3 x16 (CPU) Slot 2: PCIe Gen3 x4 (PCH) Slot 1 is preinstalled with a Thunderbolt 3 adapter
|
USB 3.0 port | 1 |
USB 3.1 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps 2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps |
IR Sensor | (QNAP RM-IR004 & MCE) |
HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
Audio Input | 1 x 3.5mm microphone input jacks |
Audio Output | speaker, 3.5mm line out jack |
Form Factor | Tower |
LED Indicators | HDD 1-4, Status, LAN, USB port, M.2 port |
LCD Display/ Button | |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 188.2 × 199.3 × 279.6 mm |
Weight (Net) | 5.4 kg |
Weight (Gross) | 7.01 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V |
Power Consumption: HDD Sleep Mode | 24.14 W |
Power Consumption: Operating Mode, Typical | 37.32 W
With WD10EFRX drives fully populated
|
Fan | System: 1 x 12cm fan (12V DC) CPU: 2 x 6cm blower fan |
Sound Level | 28.1 db(A) |
System Warning | Voice prompts or Buzzer |
Kensington Security Slot |
