Overview

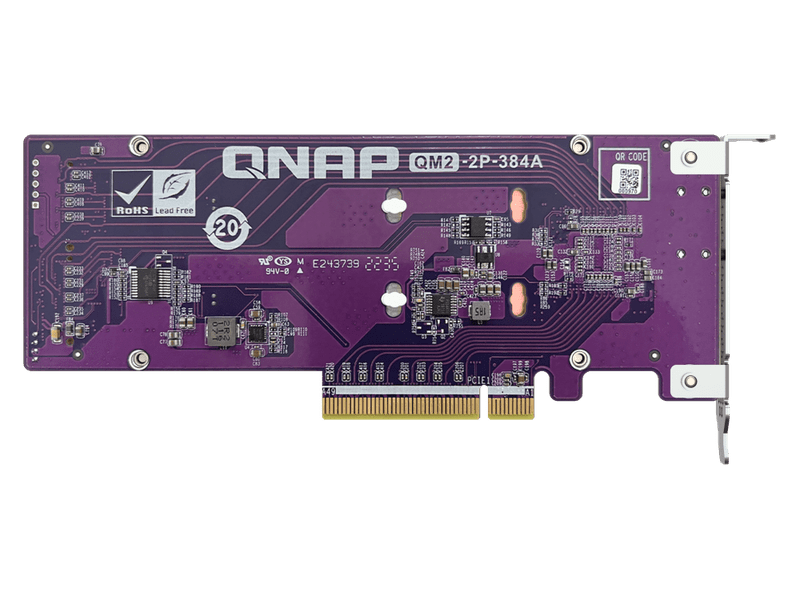

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Compatible with: TVS-hx74, TVS-1282T3, TS-hx87XU-RP
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Compatible with: TVS-hx74, TVS-1282T3, TS-hx87XU-RP
| General | |
|---|---|
| Model | QM2-2P-384A |
| Product Type | M.2 SSD Expansion Card |
| Application | Add M.2 NVMe SSDs to QNAP NAS or PC for caching or storage |
| Form Factor | Half-height, half-length PCIe card |

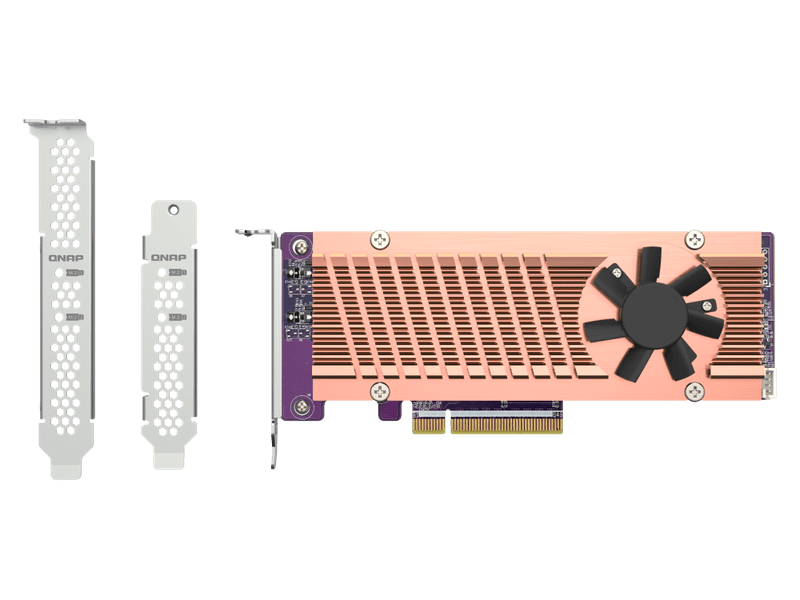

| Bracket Options | Low-profile and full-height brackets included |
| Interface | |
| Host Interface | PCIe Gen3 x8 |
| SSD Interface | 2 x M.2 2280 PCIe Gen3 x4 NVMe |
| Supported SSD Sizes | 2280 (22mm x 80mm) |
| RAID Support | Software RAID via QTS or host OS |
| Cooling | |

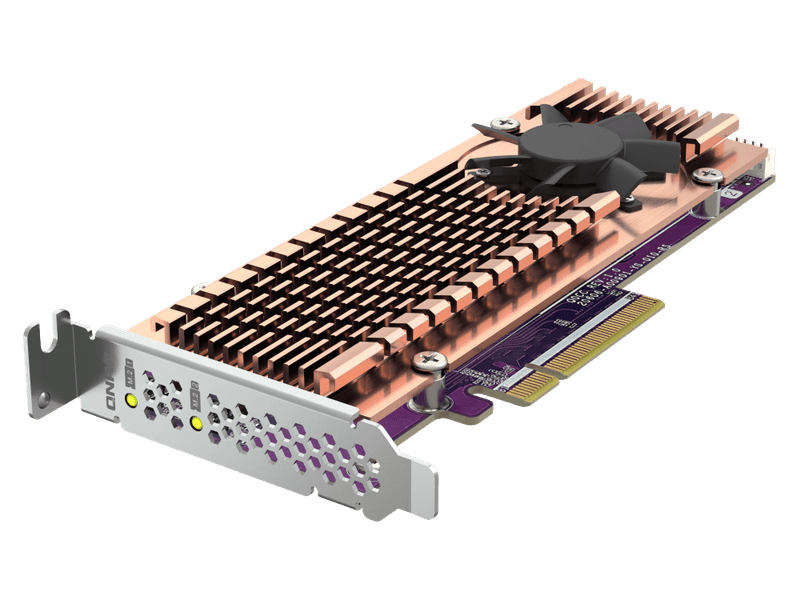

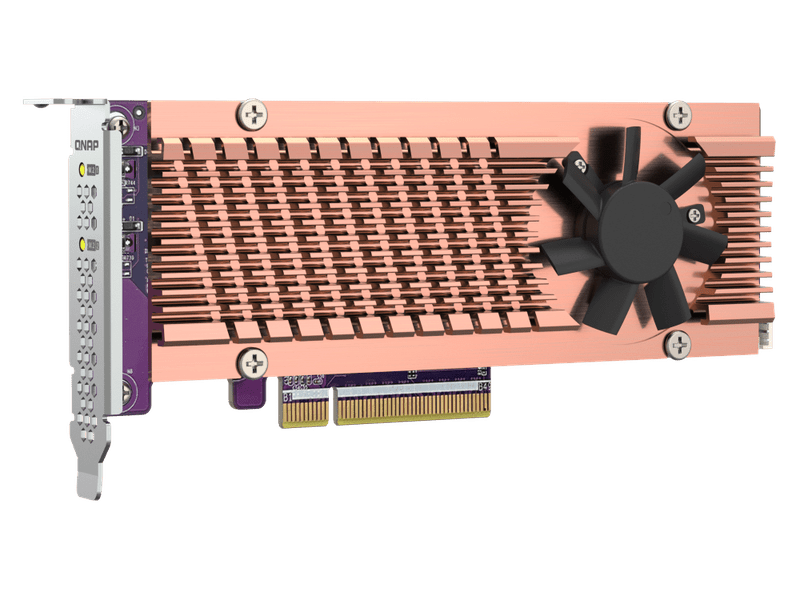

| Cooling Type | Aluminum heatsink with active fan |
| Thermal Pads | Pre-installed high-conductivity pads |
| Compatibility | |
| Supported NAS OS | QTS 4.3.6 or later |
| Supported NAS Models | QNAP NAS with available PCIe Gen3 x8 slot |
| Supported PC OS | Windows 10/11, Linux (kernel 3.10+) |
| Physical | |
| Dimensions (L x W x H) | 168 × 69 × 18 mm |
| Weight | Approx. 180 g |
| Color | Black with silver heatsink |
| Environmental | |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Package Contents | |
| Included Items | QM2-2P-384A card, thermal pads, fan, low-profile bracket, quick installation guide |
| Certifications | |
| Compliance | CE, FCC, VCCI, BSMI, RoHS |
