Overview

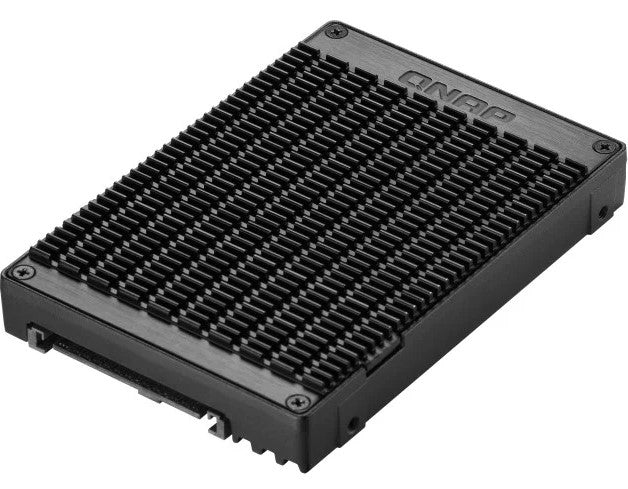

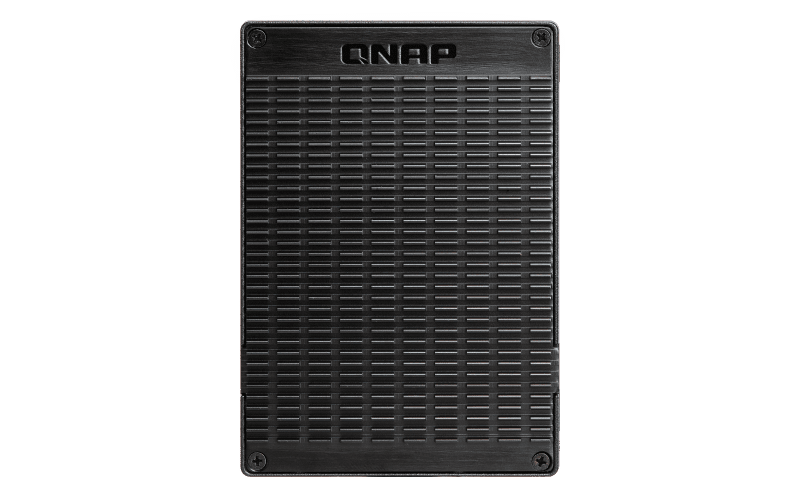

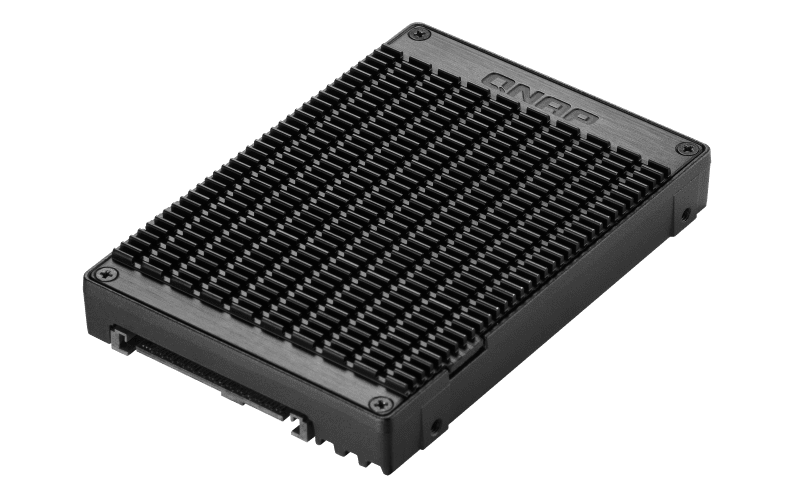

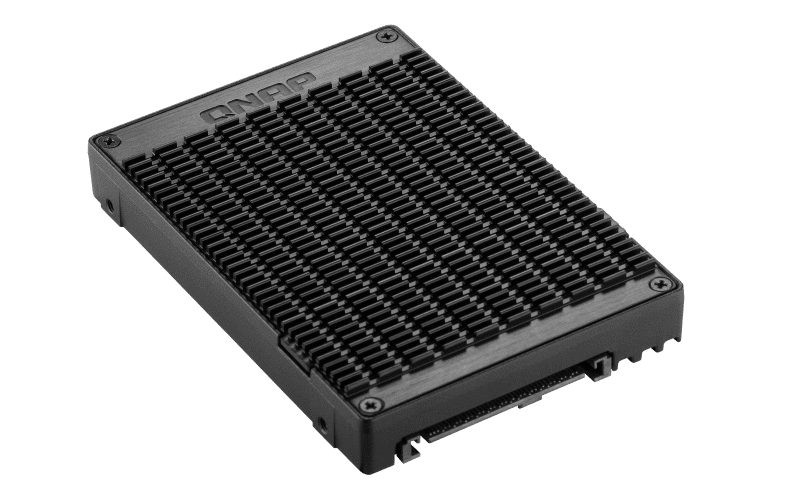

U.2 NVMe to dual M.2 NVMe SSD convert/adapter
U.2 NVMe to dual M.2 NVMe SSD convert/adapter
| General | |
|---|---|
| Model | QDA-U2MP |
| Product Type | M.2 SSD to U.2 Adapter |
| Application | Install two M.2 PCIe NVMe SSDs into a U.2 (SFF-8639) bay |
| Compatibility | QNAP NAS and PCs with U.2 interface |
| Installation | Tool-less tray design |
| Interface | |
| Host Interface | U.2 (SFF-8639) |
| SSD Interface | 2 x M.2 2280 PCIe Gen3 x4 NVMe |
| Supported SSD Sizes | 2280 (22mm x 80mm) |
| RAID Support | Software RAID via host system |
| Physical | |
| Dimensions (HxWxD) | 15 × 70 × 100 mm |
| Weight | Approx. 100 g |
| Material | Aluminum alloy |
| Color | Black |
| Cooling | Passive heatsink with thermal pads |
| Environmental | |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Package Contents | |
| Included Items | QDA-U2MP adapter, thermal pads, quick installation guide |
| Certifications | |
| Compliance | CE, FCC, RoHS |
