Description
Overview

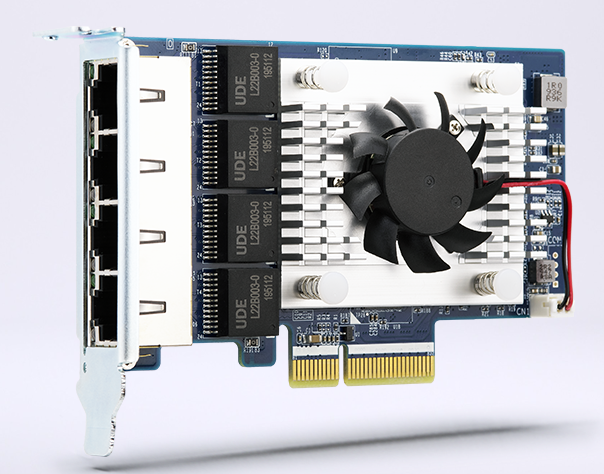

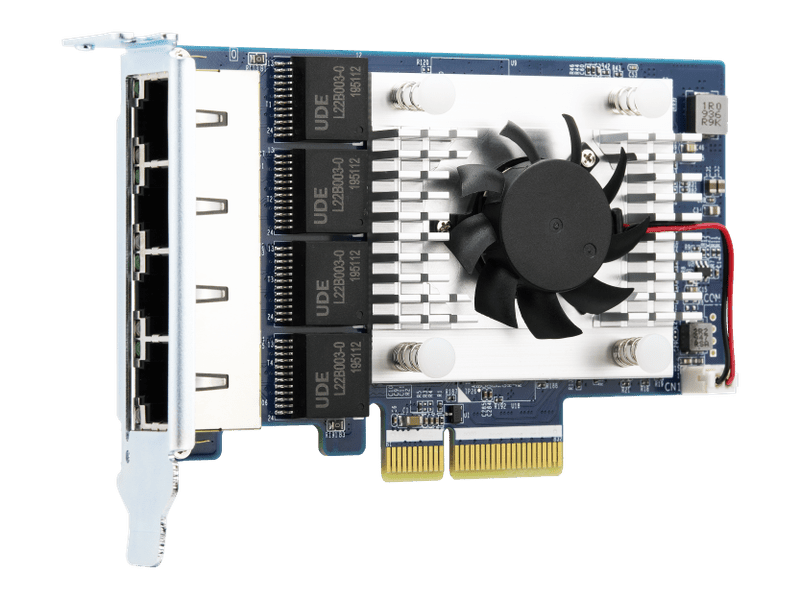

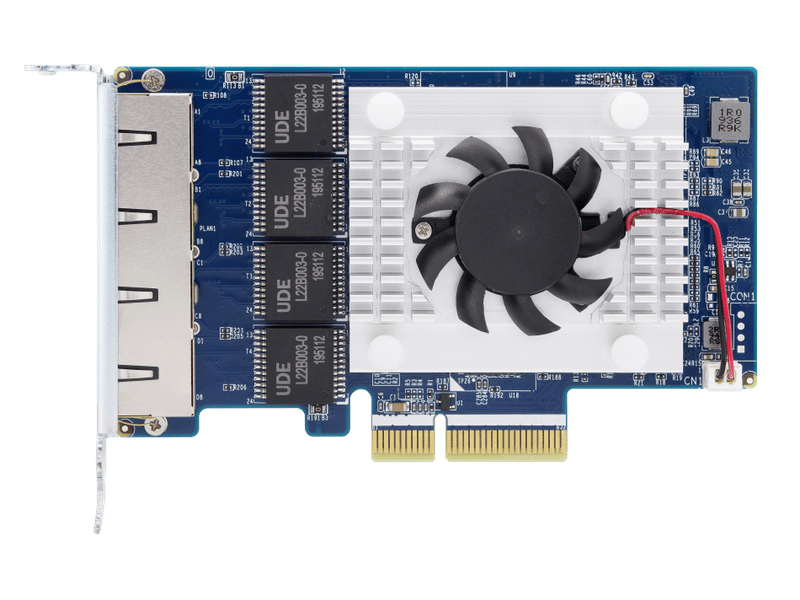

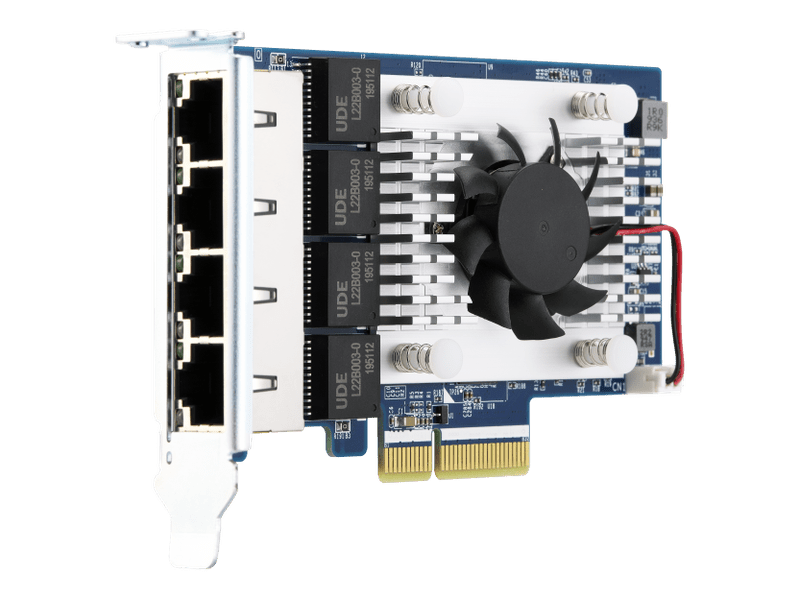

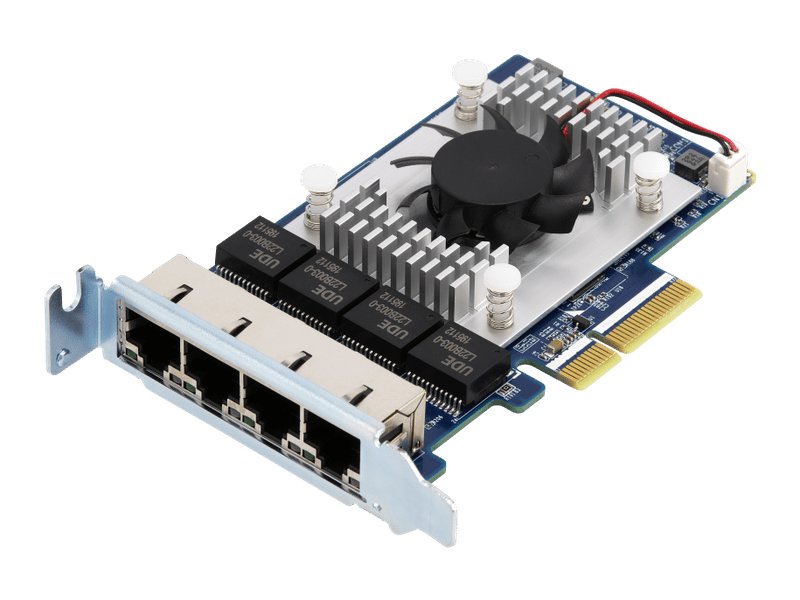

QXG-5G4T-111C
Flexible, fast, economical
QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications.
5 GbE network expansion card
The 5 GbE network expansion card delivers speeds of up to 5 Gbps. You can easily upgrade the transfer speed in your network environment with existing cables.
QXG-5G4T-111C
Flexible, fast, economical
QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications.
5 GbE network expansion card
The 5 GbE network expansion card delivers speeds of up to 5 Gbps. You can easily upgrade the transfer speed in your network environment with existing cables.
| Network Card Specifications | |
|---|---|
| Dimensions (L × W × H) | 122.15 mm length × 1-slot width × Low-profile (PCBA size, bracket excluded) |
| Controller | Marvell AQtion AQC111C; Driver download: Marvell AQtion Driver Downloads (not required for QTS) |
| Number of Ports | 4 × NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe Gen 3.0 x4 |
| Transmission Rates | 5Gbps / 2.5Gbps / 1Gbps / 100Mbps |
| IEEE Standards | IEEE 802.3an, IEEE 802.3bz |

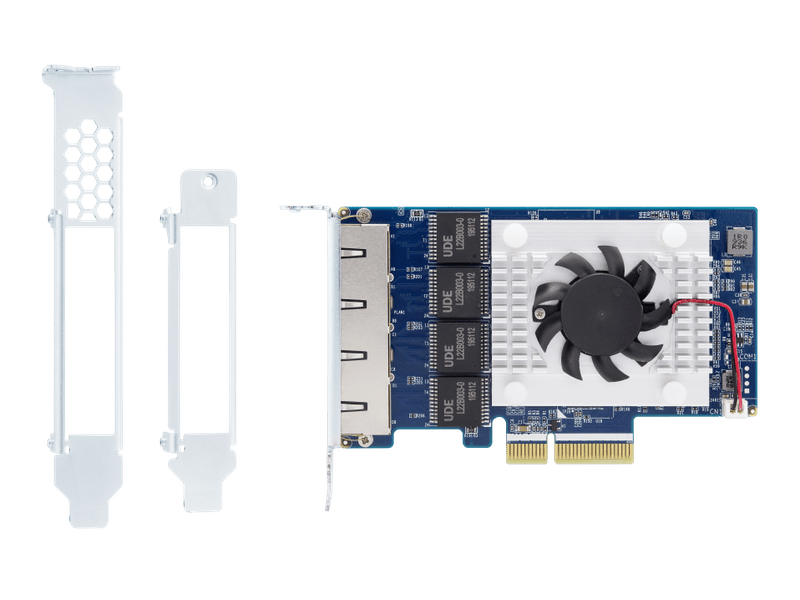

| Bracket | Low-profile bracket pre-installed; full-height and specialized brackets bundled (for selected QNAP NAS) |
| Supported NAS Operating Systems | QTS / QuTS hero (upgrade recommended); Windows (driver required); Linux (driver required) |
| Supported QNAP NAS | Models with PCIe slot(s); 1 free slot required |
| Ubuntu Support | Ubuntu 18.04 / 20.04 |
| Windows Support | Windows 8 / 10 |
| Port and Cable | RJ-45; over CAT-5e class cable |
| Package Contents | 1 × Network card; 1 × QIG; 3 × Brackets |
