Overview

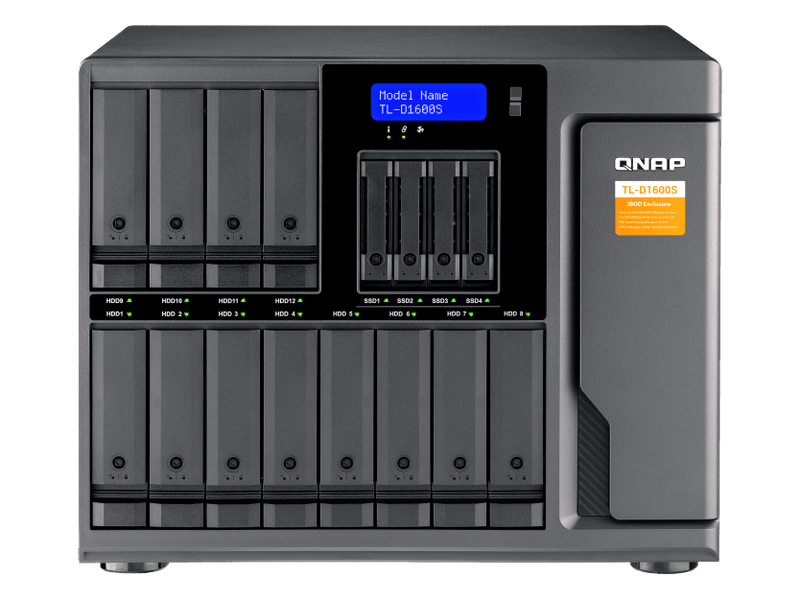

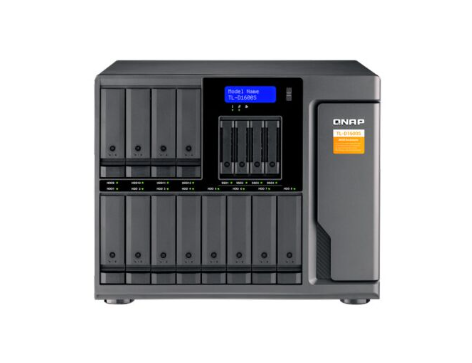

TL-D1600S
High-performance desktop SATA 6Gbps JBOD storage enclosure

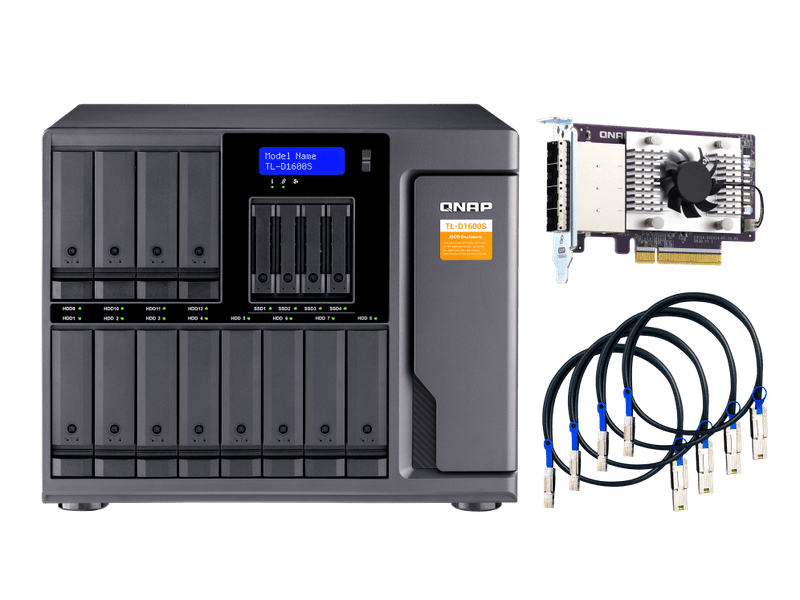

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

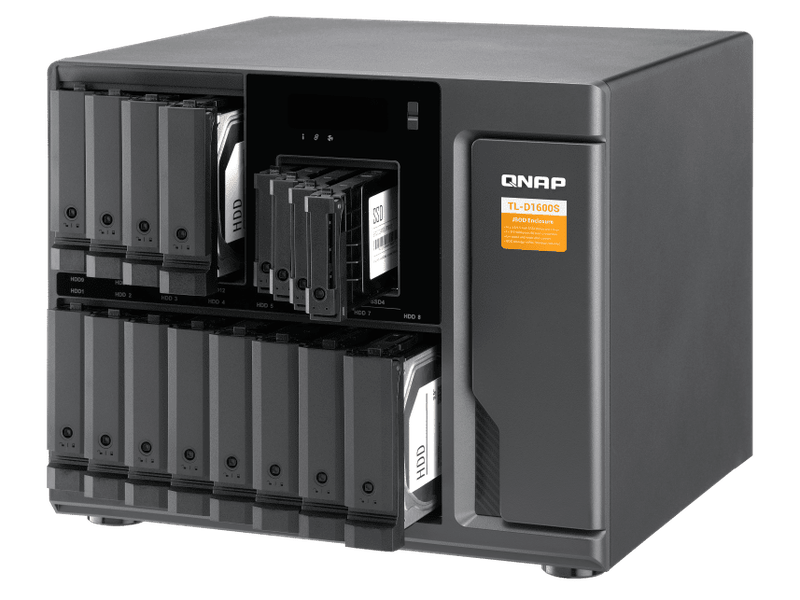

Lockable drive trays
Lockable hard drive trays prevent accidental drive removal.
High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
Flexible storage management
Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.
TL-D1600S
High-performance desktop SATA 6Gbps JBOD storage enclosure
TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
Lockable drive trays
Lockable hard drive trays prevent accidental drive removal.
High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
Flexible storage management
Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.
| QNAP TL-D1600S Specifications | |
|---|---|
| JBOD Connection Interface | SATA |
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives 2.5-inch bays: 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
|
| Hot-swappable | ✓ |
| Form Factor | Tower |

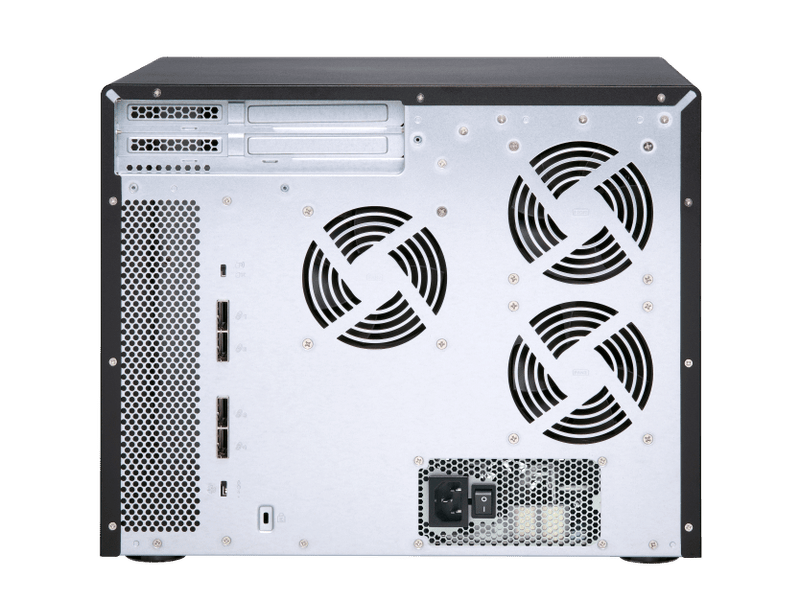

| Host Interface | 4 x SFF-8088 |
| LED Indicators | HDD 1-16, Status, Link, Fan error |
| LCD Display/ Button | ✓ |
| Buttons | Power switch |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 13.49 kg |
| Weight (Gross) | 14.87 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 93.66 W
Tested with drives fully populated.
|
| Fan Mode Switch | ✓(Auto, high, medium, low) |
| Fan | 3 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✓ |
| QTS / QuTS hero | ✓ |
| Windows | ✓ |
| Ubuntu | ✓ |
| Standard Warranty | 2 |
