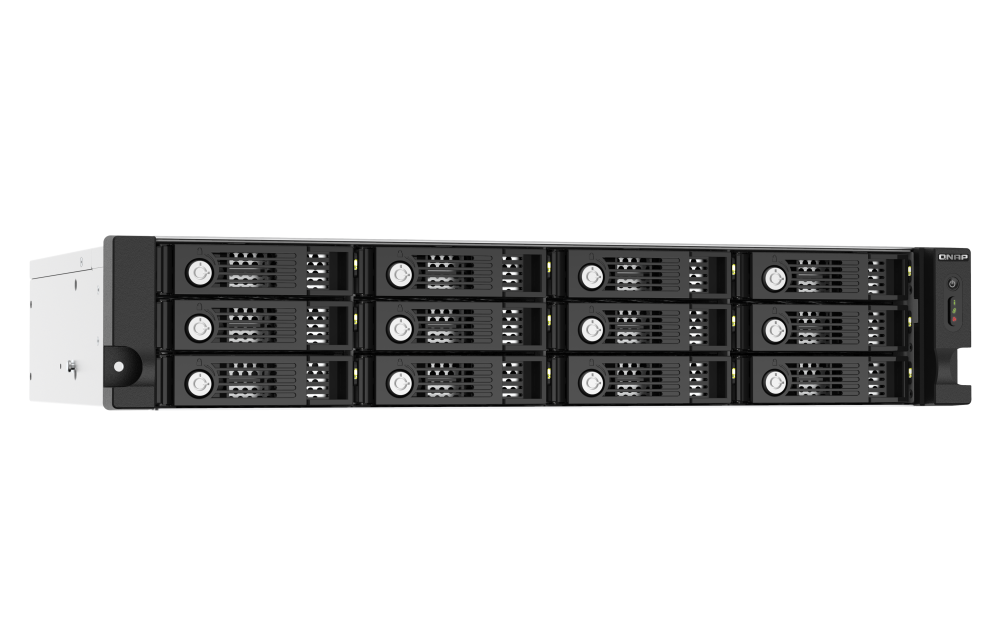

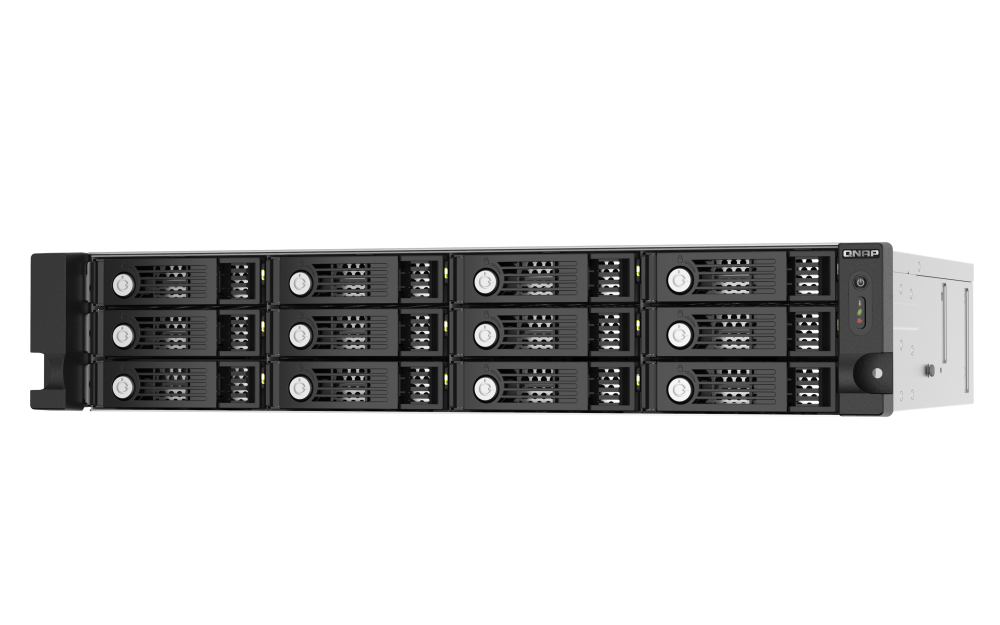

QNAP TL-R1220Sep-RP 12-bay 2U rackmount SAS 12Gbps (NO RAIL)

QNAPSKU: TL-R1220Sep-RP

JBOD expansion enclosure with SAS expander 2.5:/3.5" SAS 12Gbps & SAS/SATA 6Gbps drives 5 yr wty

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$4,513.00

Estimate shipping

Description

Overview

TL-R1220Sep-RP
Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining

The TL-R1220Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 3.4PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1220Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1220Sep-RP can achieve smoother data transmission and continuous system operation.

Note:
1. The QNAP NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe SAS storage expansion card installed. Check PCIe SAS card compatibility
2. Non-Server versions of Windows have a 63TB limit for a single volume. Thus, when connecting QNAP storage expansion products, the same limitation applies. For volumes larger than 63TB, it is recommended to use the Windows Server operating system.

Supported NAS System DataBolt Bandwidth Optimization Multipath Routing
Expand the storage space of a QTS/QuTS hero NAS, supports up to 3.4PB raw capacity by daisy-chaining up to 16 expansion enclosures. Combine two 6Gb/s connections into one 12 Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure. Ensure smooth data transmission and continuous operation by using the TL-R1220Sep-RP with a NAS that supports multipath routing.
Storage Management Remote Files Transfer Easy Installation & Storage
Manage the storage space and settings of the TL-R1220Sep-RP with Storage & Snapshot Manager on the host NAS. Conserve network bandwidth and performance by using the TL-R1220Sep-RP to transfer huge files from one device to another. With a short-depth design, the TL-R1220Sep-RP is suitable for universal deployment.

QNAP TL-R1220Sep-RP Specifications
JBOD Connection Interface SAS
Drive Bay 12 x 3.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SAS 12Gb/s, 6Gb/s hard disk drives
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Hot-swappable
Form Factor 2U Short Depth Rackmount
Host Interface 4 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644)

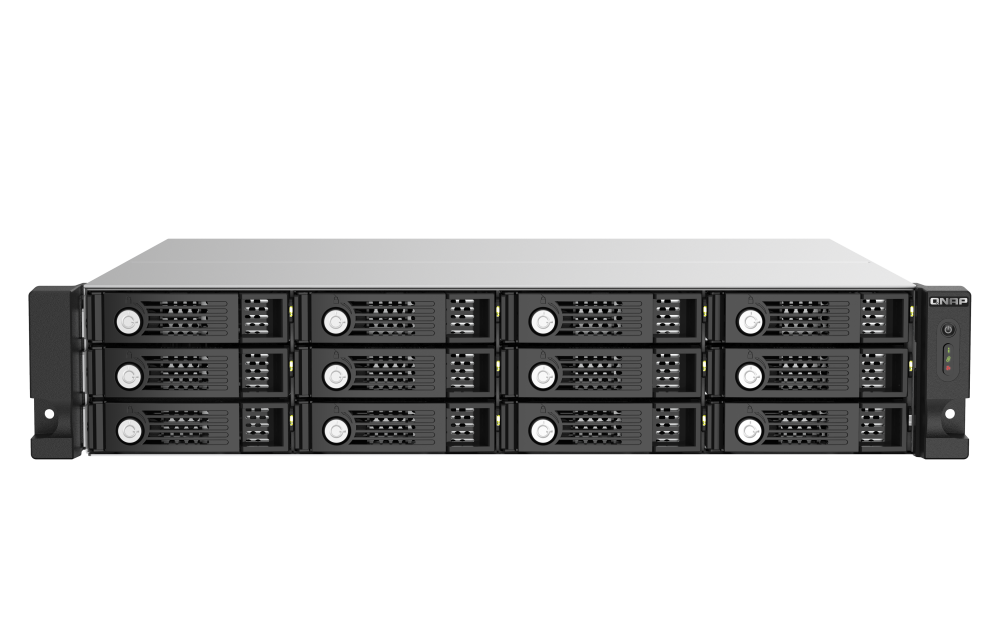

LED Indicators Front panel: HDD 1-12, Power, Status, Link, Fan error

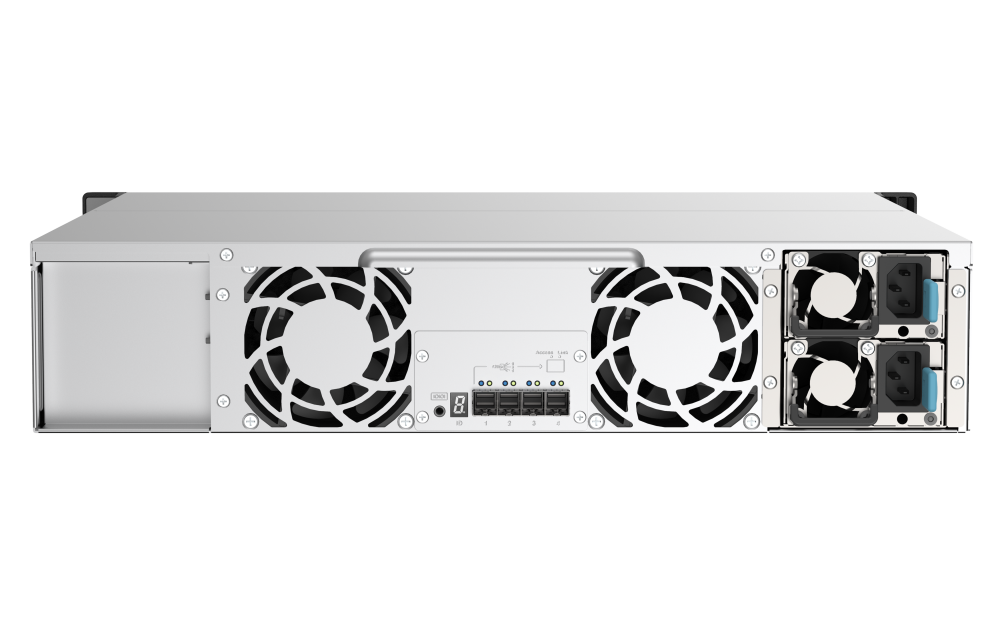

Rear panel: SAS connector, Enclosure ID
Buttons Power
Dimensions (HxWxD) 88.65 × 482 × 370.65 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net) 10.66 kg
Weight (Gross) 14.26 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100 - 240V
Power Consumption: Operating Mode, Typical 163.38 W
Tested with drives fully populated.
Fan 2 x 80mm, 12VDC
System Warning Buzzer
QTS / QuTS hero
Windows
Supports JBOD cascading
Supports expanding NAS storage pools
Supports Multi-path
Standard Warranty 5
Management Managed via QNAP QTS / QuTS hero OS
1. Supports disk S.M.A.R.T. information
2. RAID expansion enclosure identifier
3. Locate RAID expansion enclosures
4. Locate hard disks on RAID expansion enclosure
5. Smart fan control by detecting system and hard drive temperature
6. In-band SAS firmware update
