TL-R400S
High-performance short-depth rackmount SATA 6GB/s JBOD storage enclosure

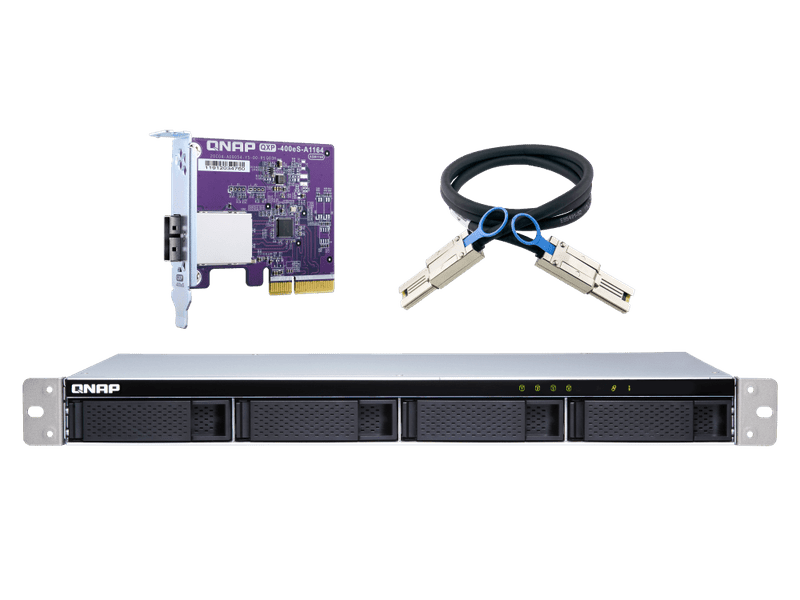

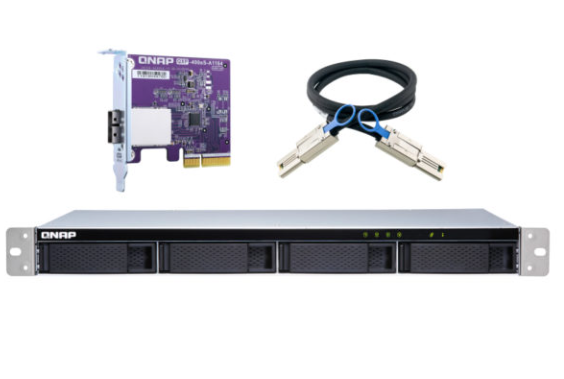

TL-R400S Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-R400S features four 3.5-inch SATA 6Gb/s drive bays, the shallow rack design is perfect for installing the TL-R400S in a compact rack, or in areas with a lot of cabling. TL-R400S comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
High capacity & compatibility
High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows® and Ubuntu® computers and servers.
High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
Short depth design
The short depth rackmount NAS is perfectly suited for installation in a compact rack, or places with a lot of cabling.
TL-R400S
High-performance short-depth rackmount SATA 6GB/s JBOD storage enclosure
TL-R400S Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-R400S features four 3.5-inch SATA 6Gb/s drive bays, the shallow rack design is perfect for installing the TL-R400S in a compact rack, or in areas with a lot of cabling. TL-R400S comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
High capacity & compatibility
High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows® and Ubuntu® computers and servers.
High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
Short depth design
The short depth rackmount NAS is perfectly suited for installation in a compact rack, or places with a lot of cabling.
| QNAP TL-R400S Specifications | |
|---|---|
| JBOD Connection Interface | SATA |
| Drive Bay | 4 x 3.5-inch
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
|
| Hot-swappable | ✓ |
| Form Factor | 1U Short Depth Rackmount |
| Host Interface | 1 x SFF-8088 |
| LED Indicators | HDD 1-4, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 43.9 × 438.9 × 291.1 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 4.92 kg |
| Weight (Gross) | 5.77 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 100W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 25.07 W
Tested fully populated with Seagate ST6000NM0024 hard drives.
|
| Fan Mode Switch | ✓(Auto, high, medium, low) |
| Fan | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✓ |
| QTS / QuTS hero | ✓ |
| Windows | ✓ |
| Ubuntu | ✓ |
| Standard Warranty | 3 |
