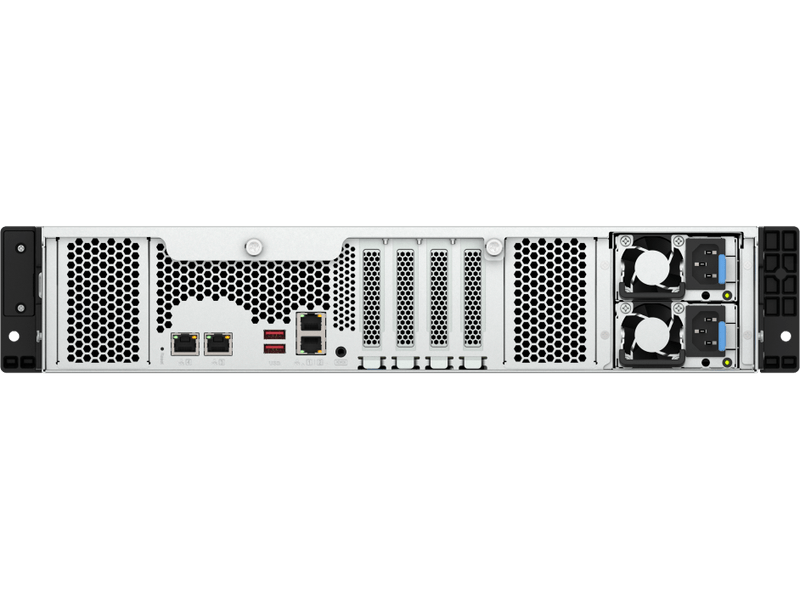

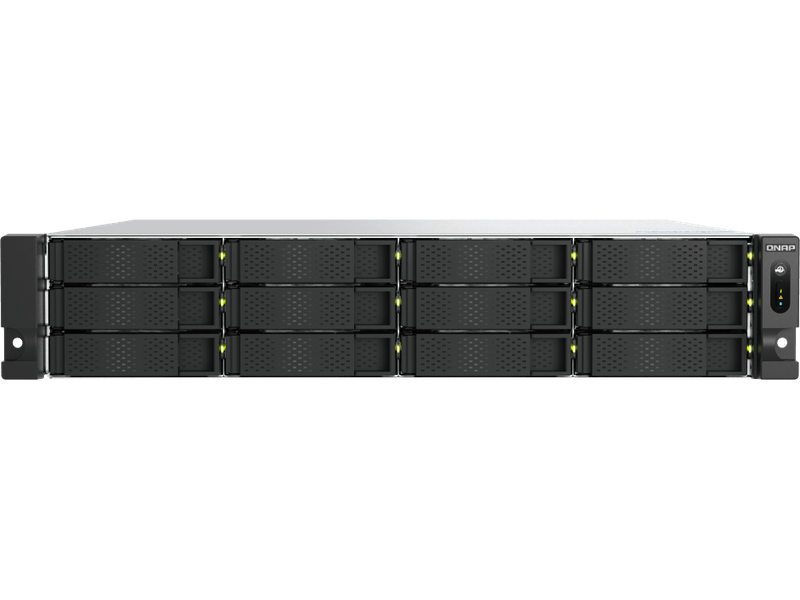

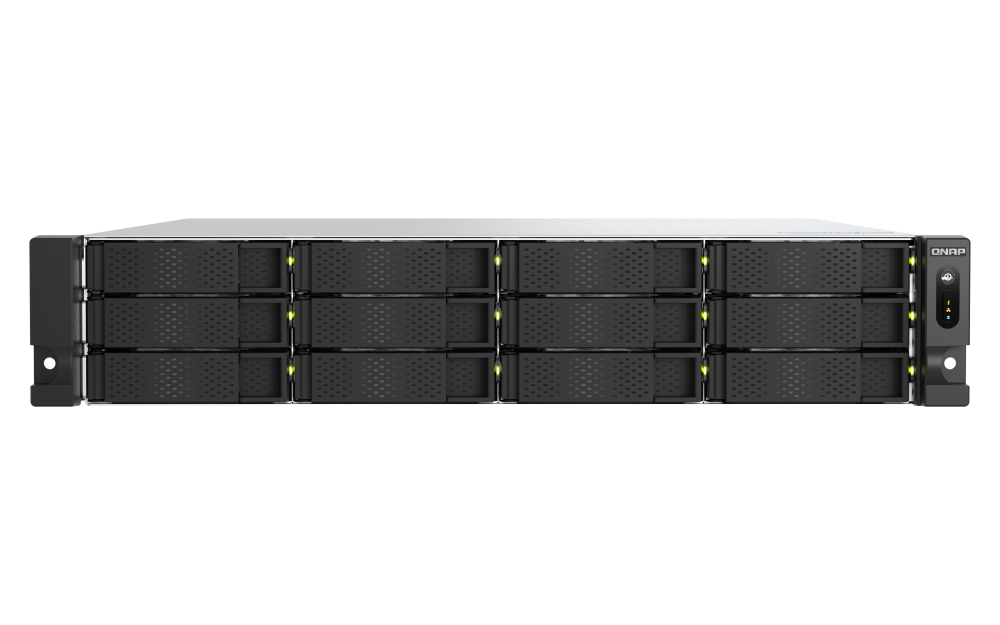

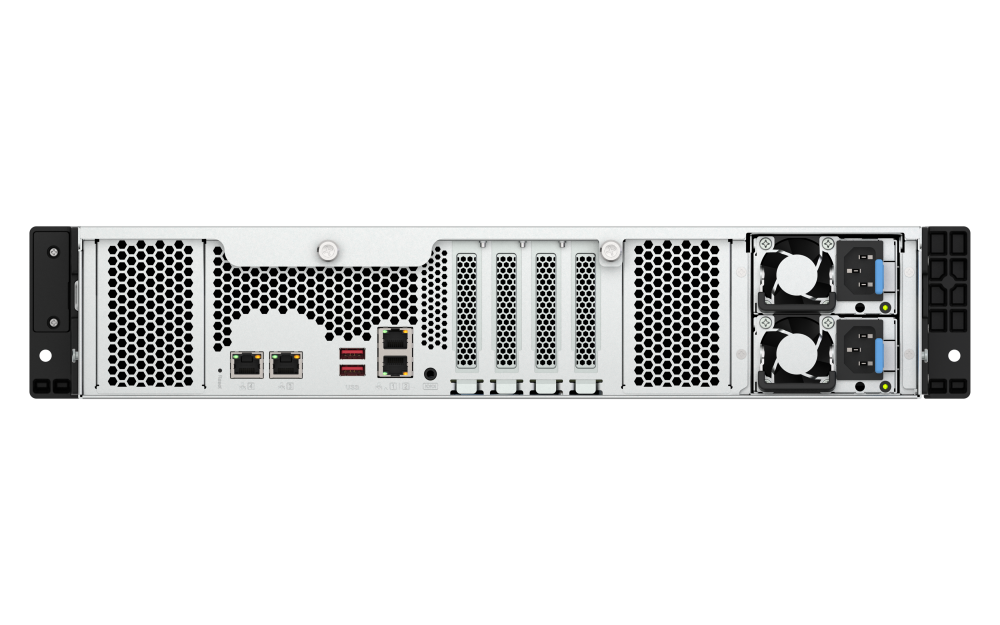

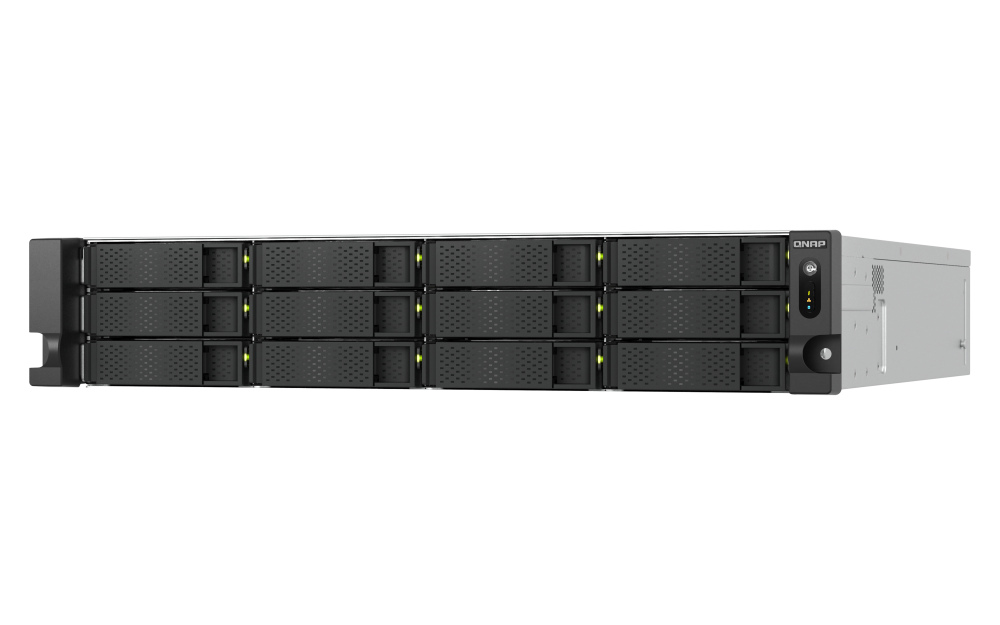

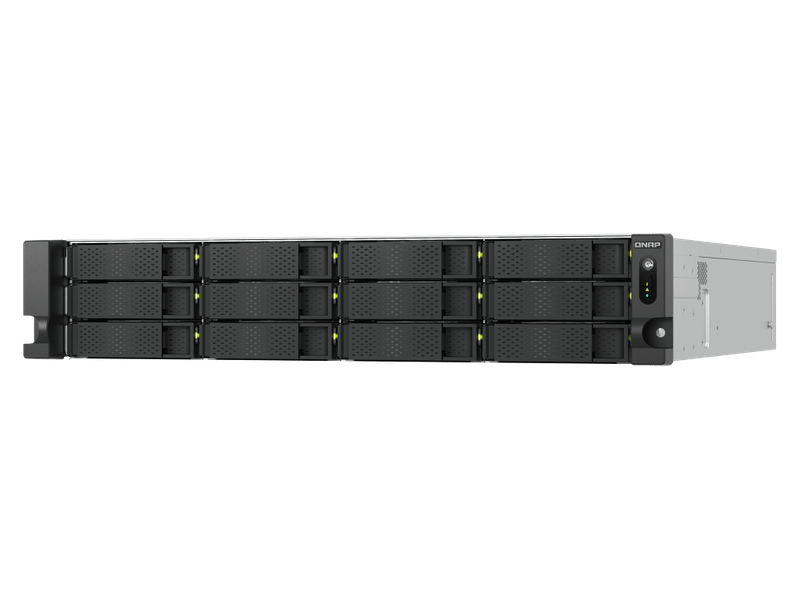

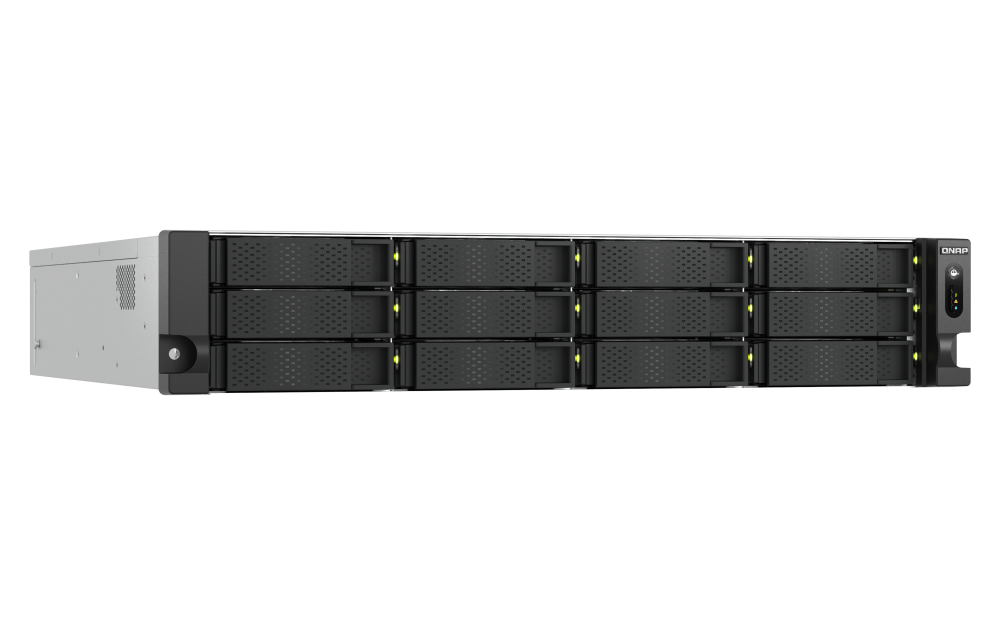

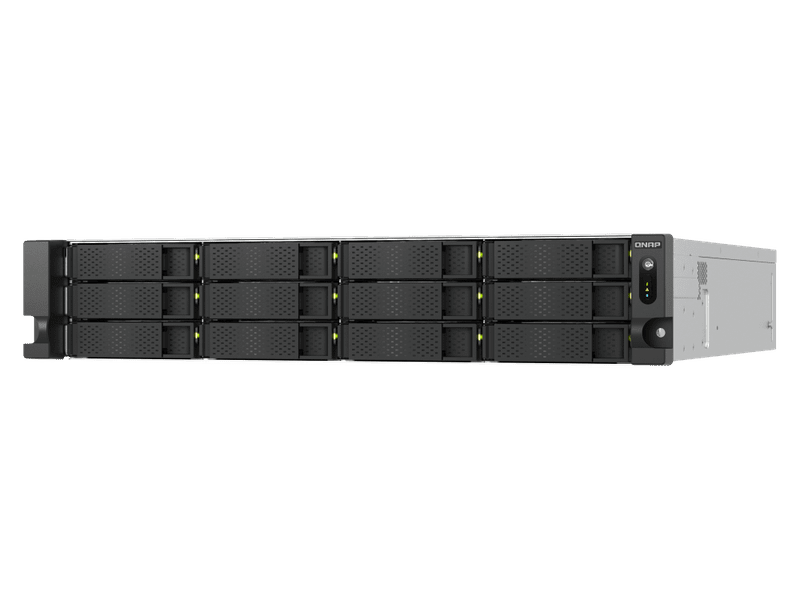

QNAP TS-h1277AXU-RP-R7-32G AMD Ryzen 7000 series NAS

QNAPSKU: TS-h1277AXU-RP-R7-32G

AMD Ryzen 7000 series 8C16T(boost up to 5.3 GHz) 32 GB DDR4 memory (1 x 32 GB)redundant power 3 Yrs

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$7,686.00

Estimate shipping

Description

Overview

TS-h1277AXU-RP
Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5

Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

DDR5 RAM
Supports up to 192GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).

Dual M.2 PCIe Gen 5 slots
Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.

2.5GbE and 10GbE as standard
Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.

PCIe Gen 4 expandability
Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.

Petabyte-scale storage
Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks.

Long-term supply
The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030.

QNAP TS-h987XU-RP-E2334-16G Specifications
CPU AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
AMD Radeon Graphics
CPU Architecture 64-bit x86
Graphic Processors AMD Radeon™ Graphics
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 32 GB UDIMM DDR5 (1x 32 GB)
Maximum Memory 192 GB (4 x 48 GB)
Memory Slot 4 x UDIMM DDR5
Support optional ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable  (Not supported M.2 SSD)
M.2 Slot 2 x M.2 2280 PCIe Gen 5 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 3
Slot 1: Gen 4 x 4
Slot 2: Gen 4 x 8 or Gen 4 x 4*
Slot 3: Gen 4 x 4
*Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
Card dimensions for PCIe slot 1:250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches
Card dimensions for PCIe slot 2:250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches
Card dimensions for PCIe slot 3:250 x 68.9 x 23.76 mm / 9.84 x 2.71 x 0.94 inches
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 2U Rackmount
LED Indicators Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.6 × 482 × 550 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net) 13 kg
Weight (Gross) 19 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Disk Standby Mode 82.247 W
Power Consumption: Operating Mode, Typical 367.65 W
Tested with drives fully populated.
Fan System fan: 3 x 60mm, 12VDC
System Warning Buzzer
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 5000
