QNAP TS-h765eU-8G 4-Bay 3.5" SATA + 3x E1.S/PCIe M.2 2280 1U short depth rackmount NAS

QNAPSKU: TS-h765eU-8G

Intel Atom x7405C quad-core burst up to 3.4GHz 8GB 3Yr(No Rail)

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,765.00

Estimate shipping

Description

Overview

TS-h765eU

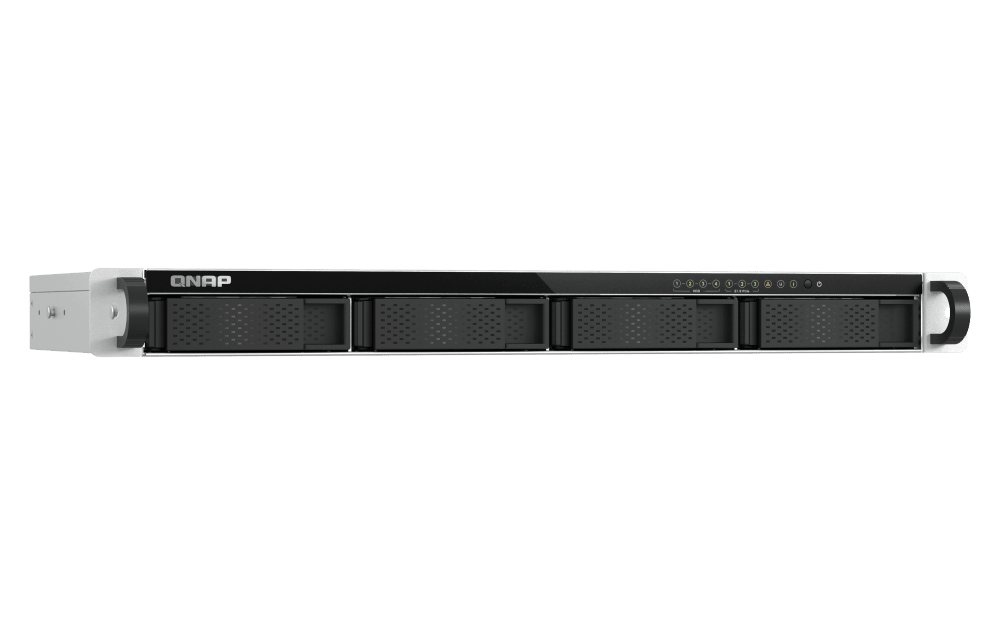

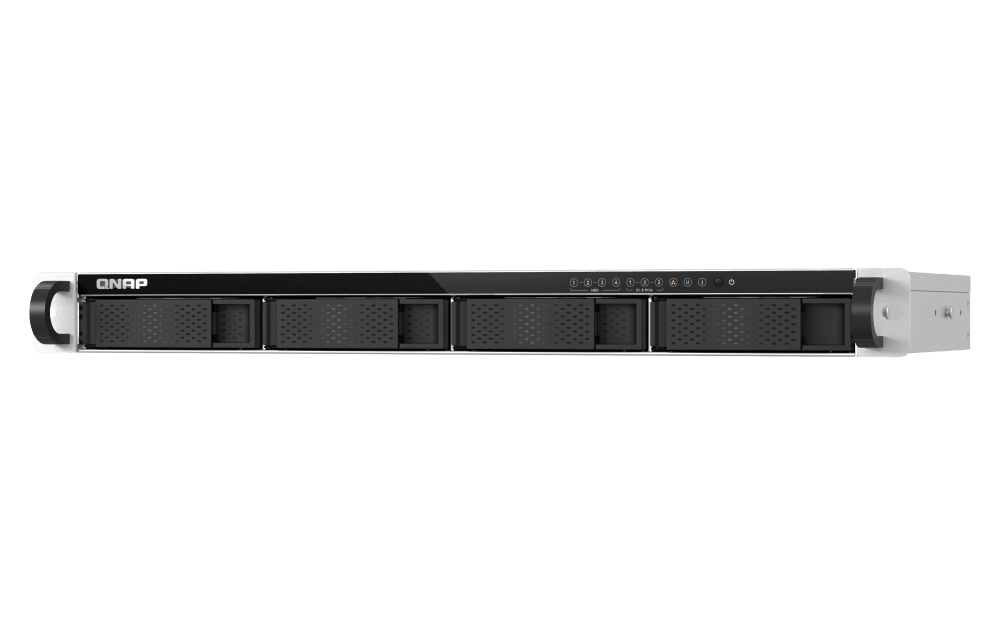

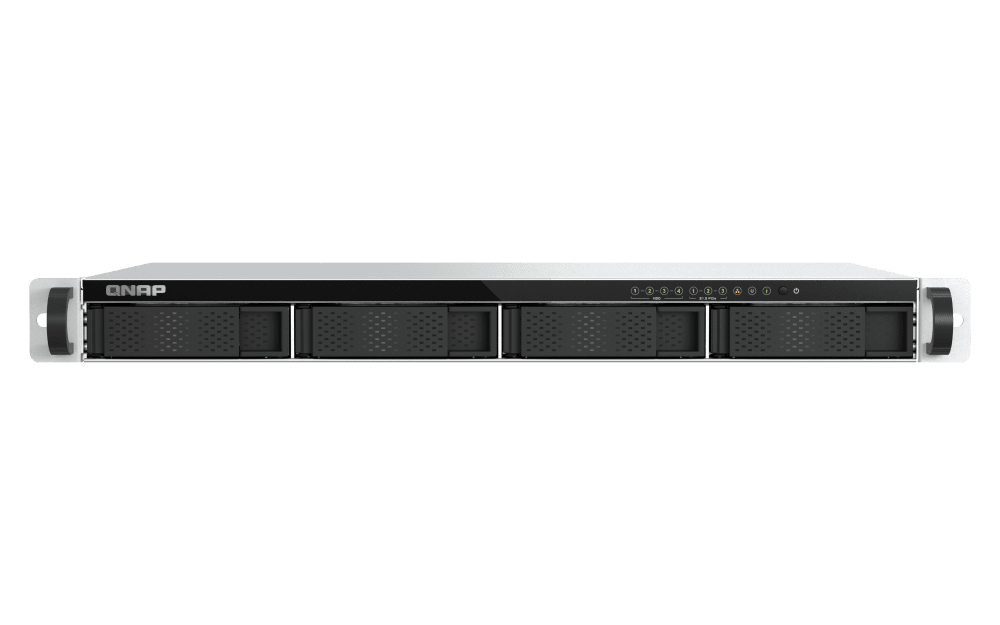

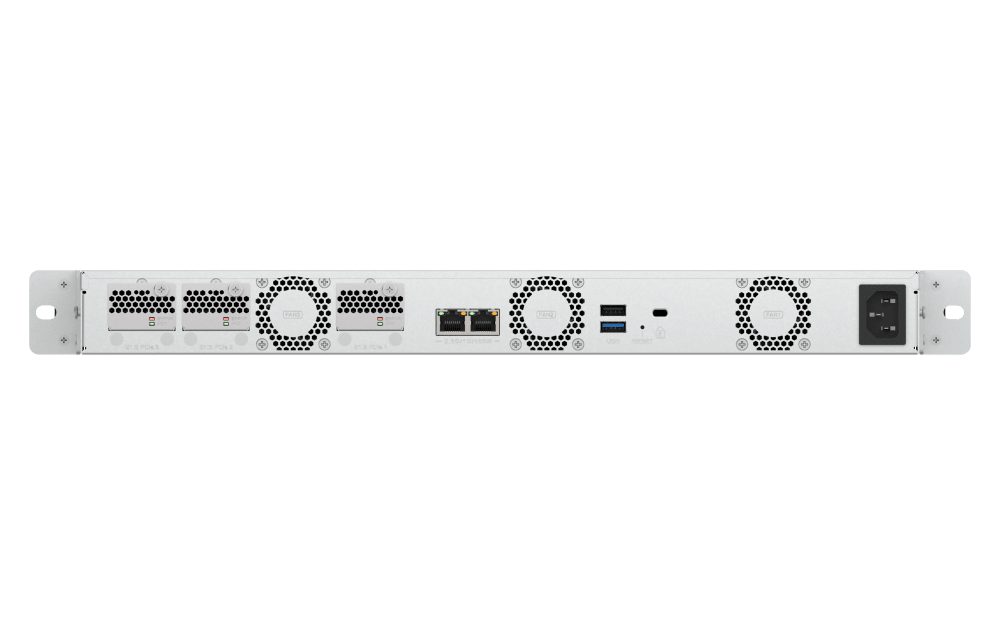

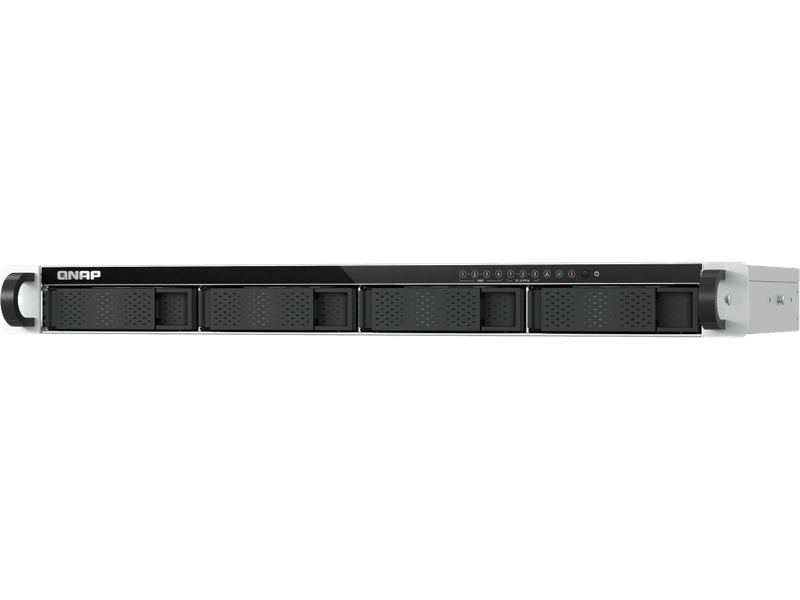

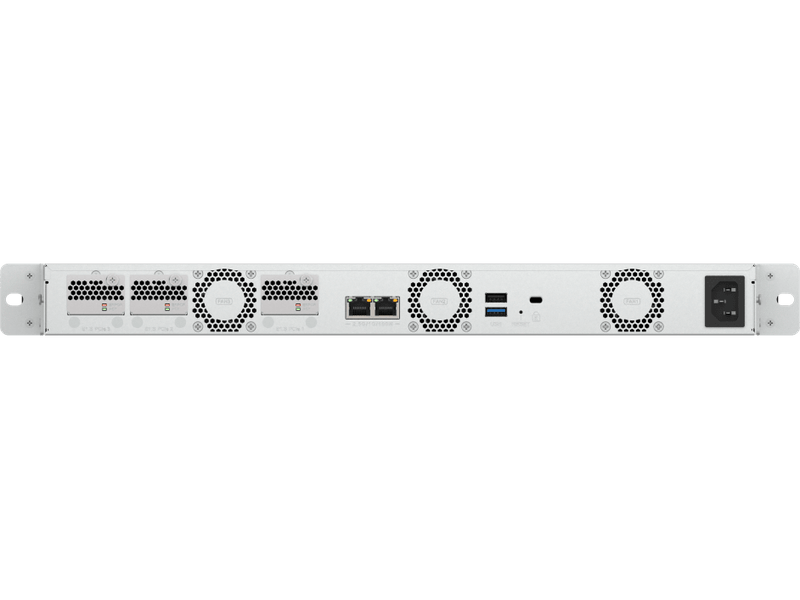

Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.

Space-saving
The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.

DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.

Expand to two 10GbE ports
Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).

Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.

Easy storage expansion via USB
Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).

Long-term supply
The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.

QNAP TS-h765eU-8G Specifications
CPU Intel Atom x7405C 4-core, up to 3.4GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC
Maximum Memory 16 GB (1 x 16GB)
Memory Slot 1 x SODIMM DDR5
Flash Memory 8GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
E1.S NVMe PCIe SSDs
M.2 2280 NVMe PCIe SSDs
Hot-swappable  (Not supported M.2 SSD)
M.2 Slot 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port Optional via QXG-ES10G1T
Wake on LAN (WOL)
Jumbo Frame
USB 2.0 port 1
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 1U Short Depth Rackmount
LED Indicators Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3
Buttons Power, Reset
Dimensions (HxWxD) 43 × 430 × 292.1 mm
Weight (Net) 4.51 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 150W, 100-240V
Fan 3 x 40mm
System Warning Buzzer
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
