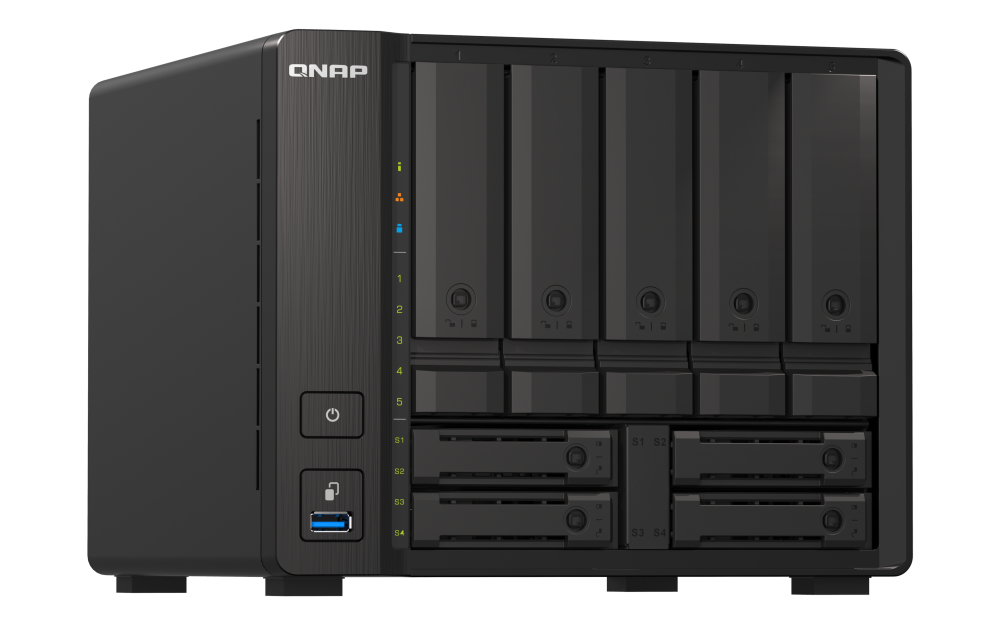

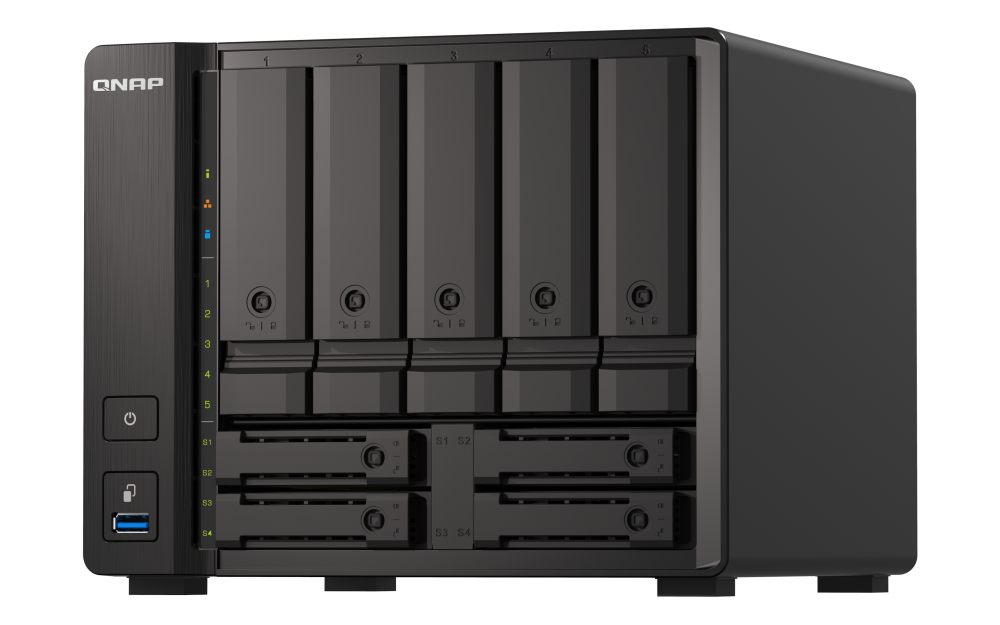

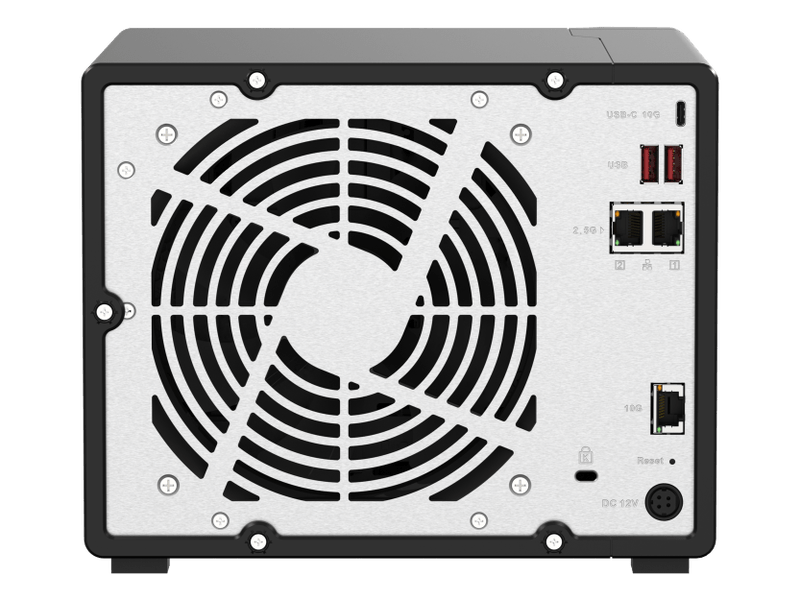

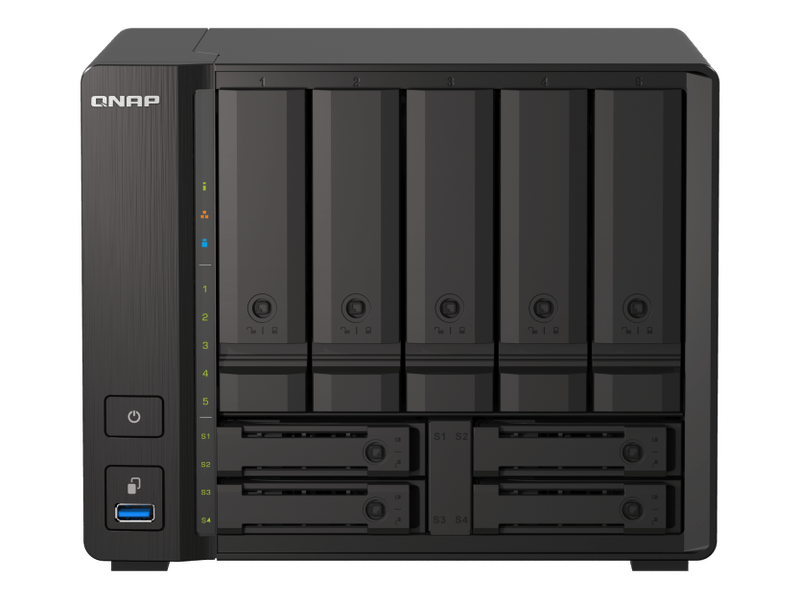

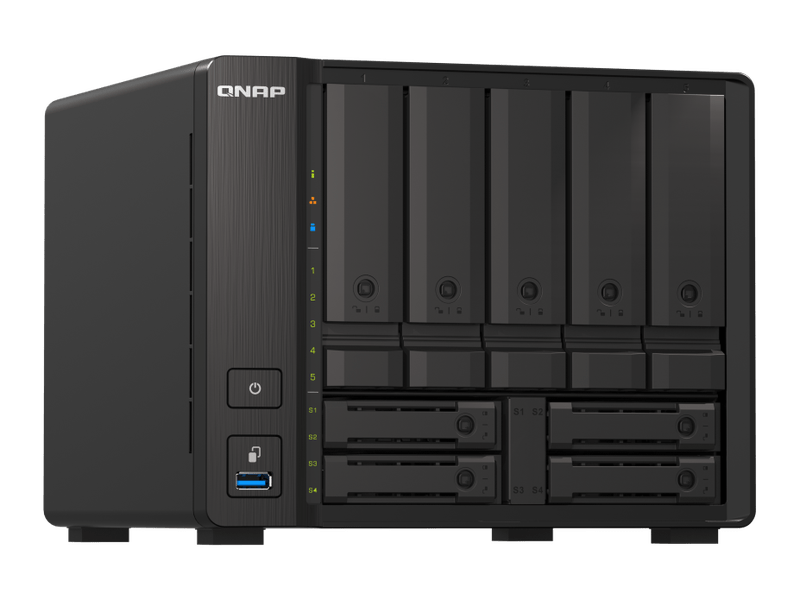

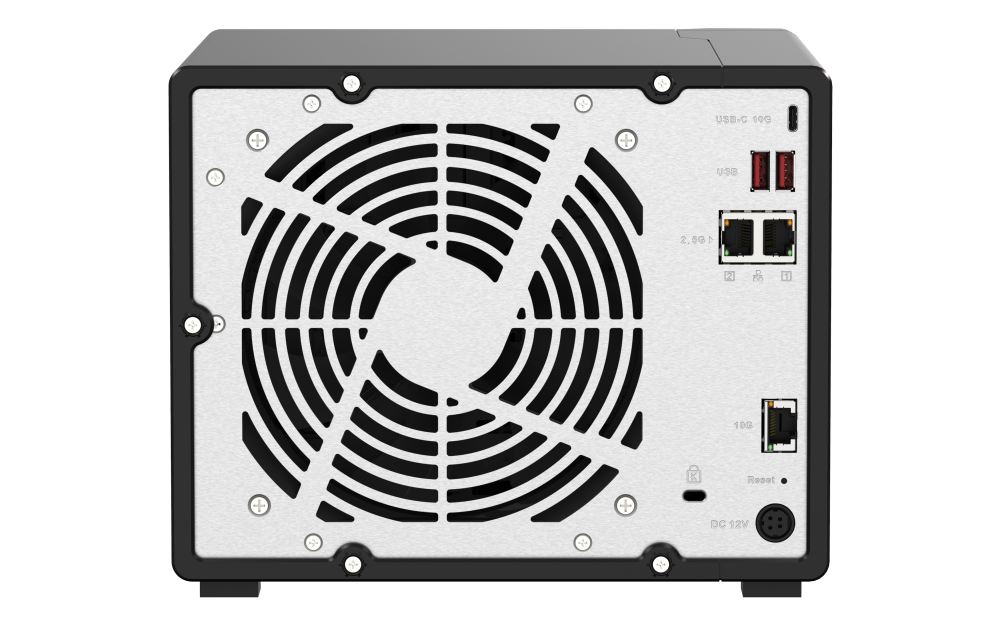

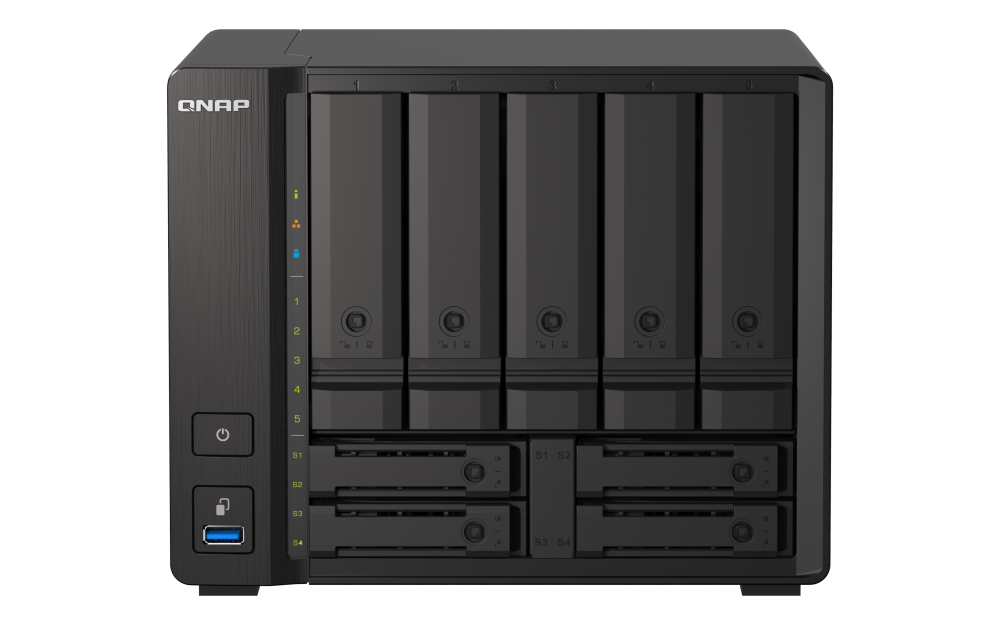

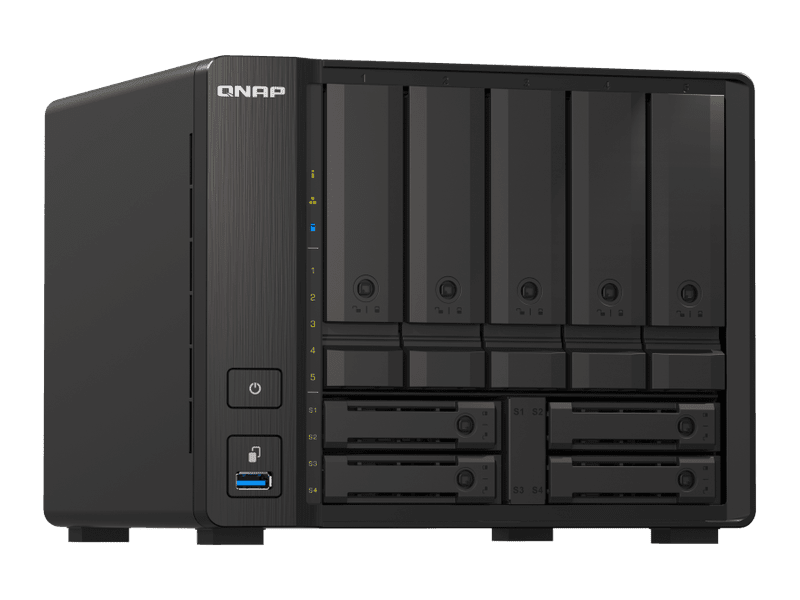

QNAP TS-h973AX-8G9-bay NAS AMD Ryzen V1500B 4C 8T 2.2GHz 8GB

QNAPSKU: TS-h973AX-8G

AMD Ryzen V1500B 4C 8T 2.2GHz 8GB DDR4 SODIMM 5 x 2.5"/3.5" SATA 6Gbps + 2 x 2.5" U.2 NVMe PCIe Gen3 x4 / 2.5" SATA 3 Years WTY

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,543.00

Estimate shipping

Description

Overview

TS-h973AX
Enhance business productivity using the quad-core 9-bay QuTS hero NAS that supports U.2 NVMe SSD and 10GbE/2.5GbE connectivity

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.

Optimized SSD performance and lifespan
Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.

10GbE/2.5GbE connectivity
One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.

SaaS backup and recovery
Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).

Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.

Cloud storage gateway
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Flexible storage expansion
Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).

QNAP TS-h1677AXU-RP-R7-32G Specifications
CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support optional ECC memory
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
For the HDD/SSD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2)
* 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors.
Hot-swappable
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via the QNA-UC5G1T USB to 5GbE network adapter
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2
3 x Type-A USB 3.2 Gen 2
Form Factor Tower
LED Indicators HDD 1-5, SSD 1-4, Power/Status, LAN, USB
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 176.5 × 224.6 × 224.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 4.34 kg
Weight (Gross) 5.08 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit External, 120 W, AC 100 to 240 V
Power Consumption: Disk Standby Mode 41.2 W
Power Consumption: Operating Mode, Typical 55.41 W
Tested with drives fully populated.
Fan 1 x 140mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
