QNAP TVS-h674T-i5-32G 6-bay QuTS hero NAS

QNAPSKU: TVS-h674T-i5-32G

Intel Core i5-12400 6-core/12-thread up to 4.6GHz 32GB SO-DIMM DDR4 2 x 2.5GbE 2 x Thunderbolt 4 3 Year WTY

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$4,750.00

Estimate shipping

Description

Overview

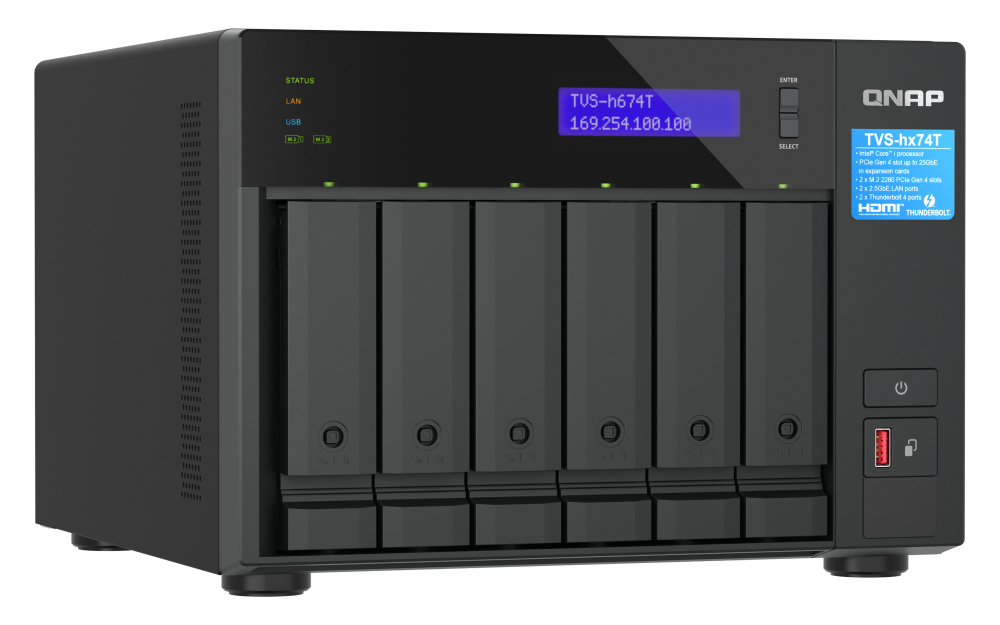

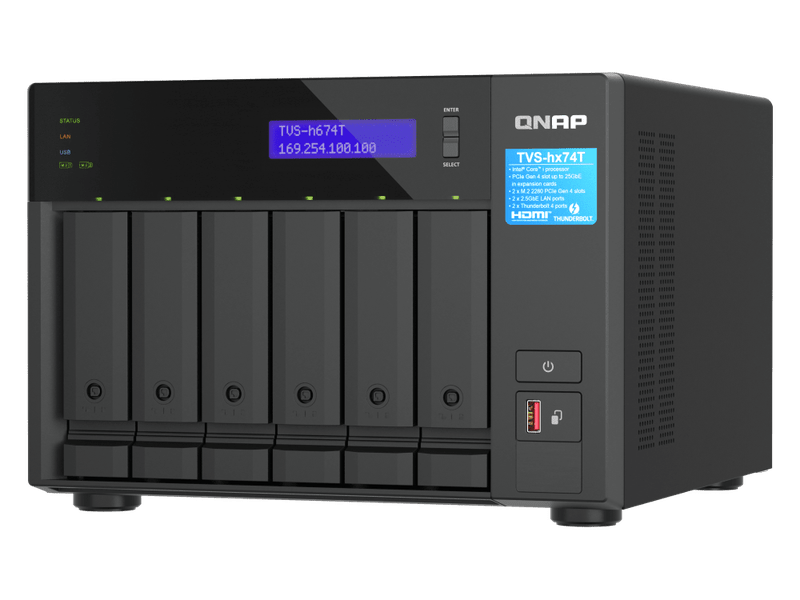

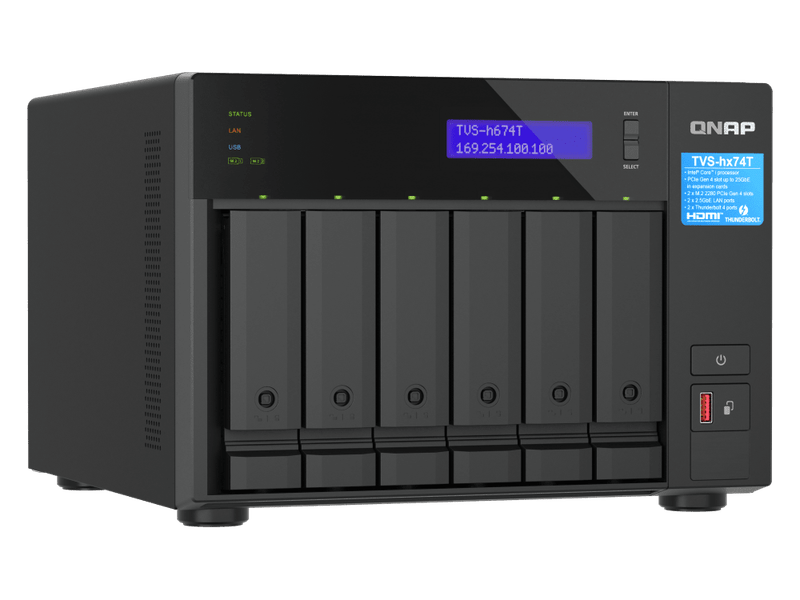

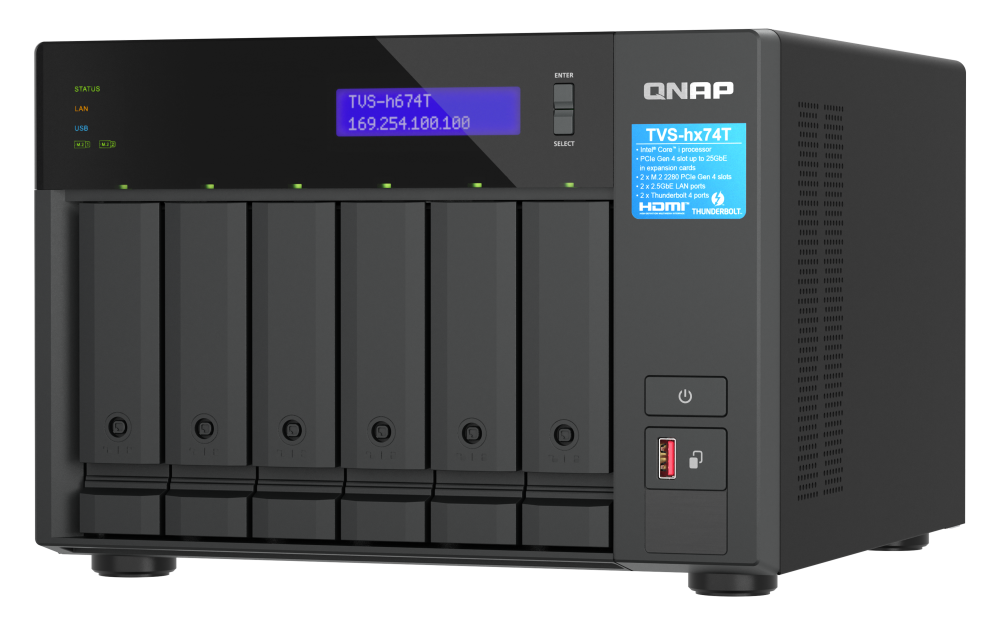

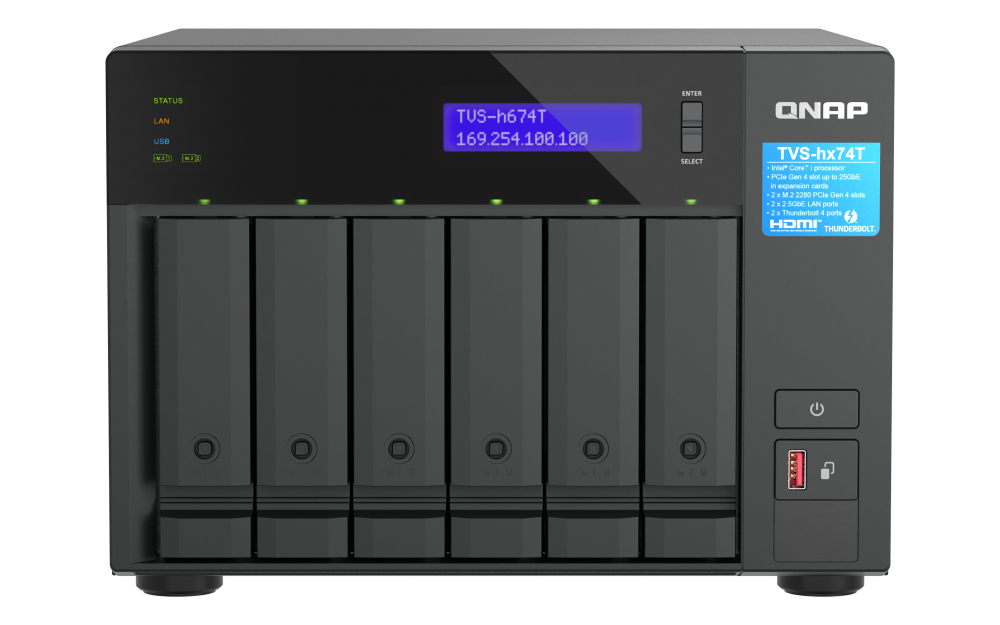

TVS-h674T
Thunderbolt™ 4 NAS. Designed for creators and small studios

The brand-new Thunderbolt™ 4 NAS is a great sidekick for your creative talents. Coming with a powerful Intel® Core™ i5 6-core processor, the TVS-h674T supercharges your productivity by allowing you to tackle 4K video projects smoothly and simultaneously across your team. The creator-oriented ZFS-based TVS-h674T NAS guarantees well-organized collaborative workflows and hardware expandability (such as upgradable 25 GbE connectivity and 64 GB RAM) to grow with your business and inspiration.

Thunderbolt™ 4 ports
Two Thunderbolt™ 4 Type-C ports come as standard to directly connect your Mac.

Video transcoding
The built-in GPU accelerates transcoding for video footage, allowing you, your team, and clients to quickly watch videos on their devices.

Prevent video corruption
The TVS-h674T’s Self-Healing feature detects and corrects corrupted data, enabling video production to go off without a hitch and with peace of mind.

2.5 GbE as standard and upgradable to 25 GbE
High-speed connectivity with two built-in 2.5 GbE ports, and upgradable to 25/10 GbE using a PCIe network card.

Up to 110 TB storage capacity1
Store your files with RAID protection. If require additional storage capacity, just connect QNAP JBOD enclosures and expand up to 352 TB2.

M.2 SSD slots
Create a super-fast SSD storage volume or enable SSD caching with two M.2 NVMe SSDs (sold separately).

QNAP TVS-h674T-i5-32G Specifications
CPU Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 730
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable  (Not supported M.2 SSD)
M.2 Slot 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Optional via PCIe expansion card
Wake on LAN (WOL)
Jumbo Frame

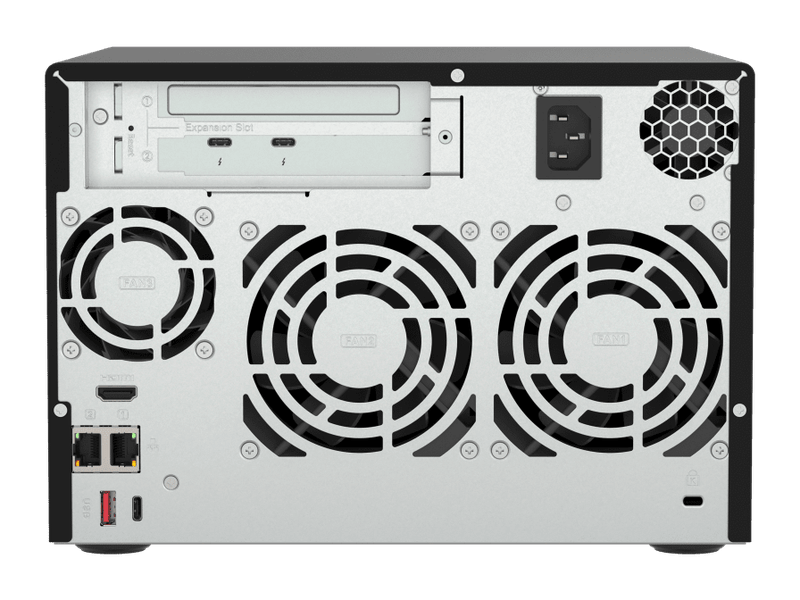

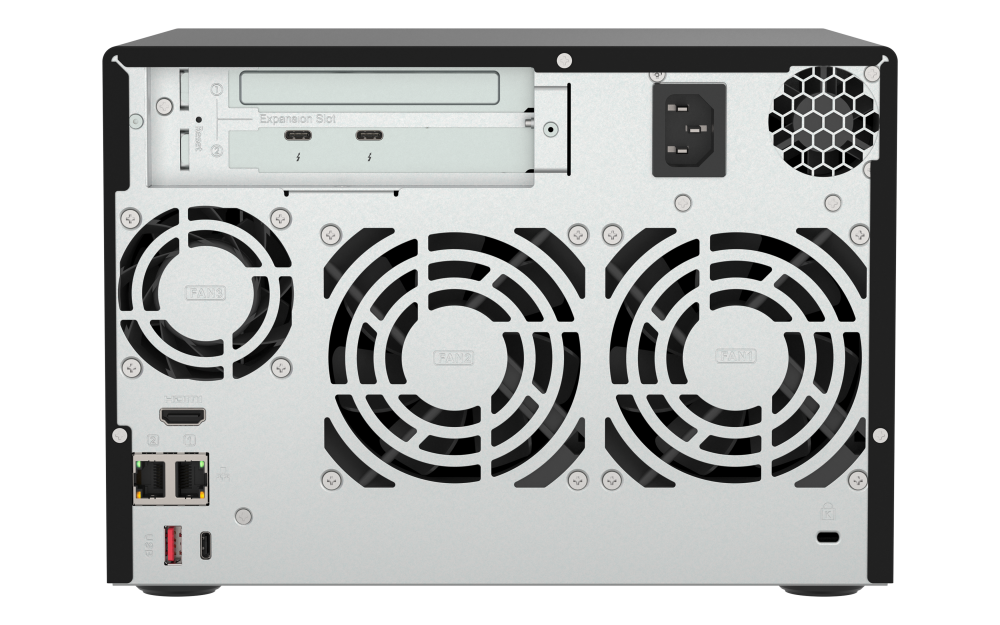

Thunderbolt Port 2 (Thunderbolt™ 4)
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
PCIe Slot 2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 4 x4
*Slot 2 is preinstalled with a Thunderbolt 4 AIC.
Card dimensions for PCIe slot 1~Slot 2:185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI™ Output 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor Tower
LED Indicators HDD 1-6, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 180.2 × 264.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 6.36 kg
Weight (Gross) 7.93 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Minimum 250W PSU, 100-240VAC
Power Consumption: Disk Standby Mode 39.911 W
Power Consumption: Operating Mode, Typical 79.363 W
Tested fully populated with WD10EFRX hard drives.
Fan System fan: 2 x 92mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2500
