Description
Overview

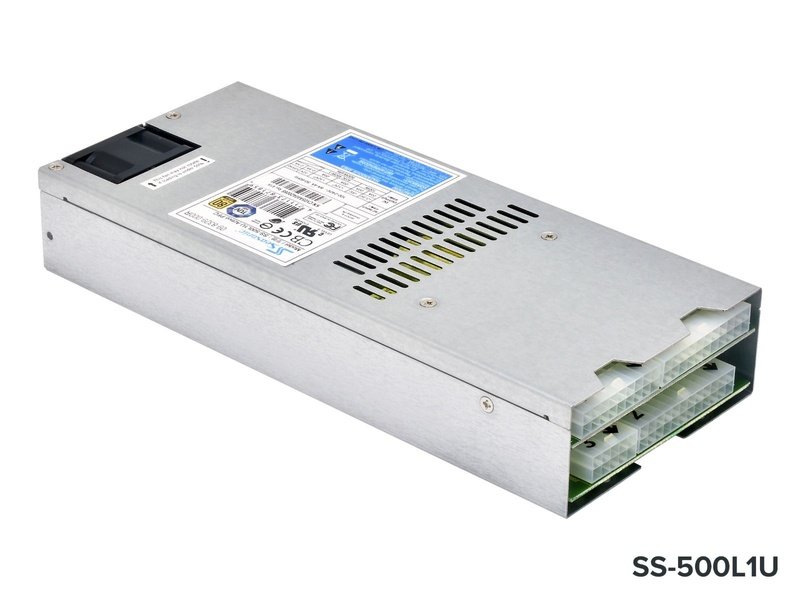

This is an EPS 12 V industrial switch mode power supply with 80 PLUS® Gold efficiency rating. The series comes in two power versions; 500 Watts and 400 Watts. This unit has fully modular cabling and it meets important EMI, EMC and safety standards and with many protection features it is considered to be very safe. With its stability and quality electrical components it is a very reliable and power supply for any kind of industrial application.
Specifications
Specifications
Input frequency
50 / 60 Hz
Efficiency
80 PLUS Gold
Line regulation
± 1 % (typical)
Load regulation
± 5 % (typical)
Cross regulation
± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan)
> 100,000 hours
Active Power Factor Correction
99 % (typical)
DC Outputs
+3.3 V
+5 V
+12 Combined
-12 V
+5 Vsb
Total continuous power
Input Type
20 A
20 A
40 A
0.3 A
2.5 A
500 W
100–240 VAC
100 W (max.)
480 W
3.6 W
12.5 W
