Sophos XGS 2300 Firewall Appliances -XG2CTCHAU

+

XGS Series

Next-Gen Firewall Appliances

• Real-Time Threat Protection
• Easy and Flexible Deployment
• Single Point of Security Management
• Patented Layer-8 Identity control
• Service Length #: 39 months License

XGS Series Next-Gen Firewall Appliances

Distributed Edge: 1U Models

Mid-sized and distributed organizations in need of a versatile solution to power and protect their network will be well-served with our 1U models. These rackmount firewalls offer excellent performance, a diverse range of high-speed interfaces built-in, and a choice of add-on connectivity modules. Whether your priority is ensuring maximum uptime for your SD-WAN links, securely connecting your remote users, or protecting the network in a growing organization, you can tailor them to your dynamic environment.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Performance
Firewall	39,000 Mbps
TLS Inspection	1,450 Mbps
Firewall IMIX	20,000 Mbps
IPS	7,000 Mbps
IPsec VPN	20,500 Mbps
NGFW	6,300 Mbps
Threat Protection	1,500 Mbps
Latency (64 byte UDP)	4 µs

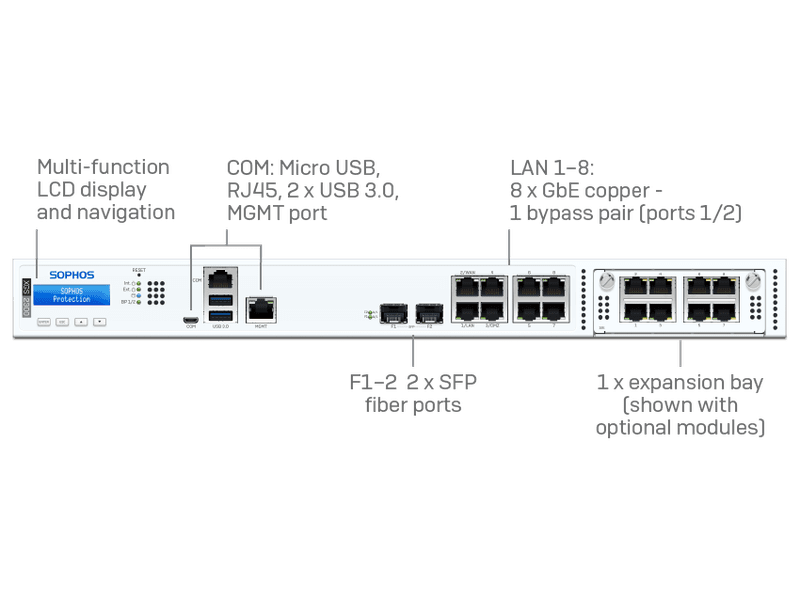

Connectivity
Ethernet Interfaces (Fixed)	8 x GE copper
	2 x SFP Fiber*
Bypass Port Pairs (Fixed)	1
Max. Port Density (incl. modules)	18
Management Interfaces	1 x RJ45 MGMT
	1 x COM RJ45
	1 x COM Micro-USB
Other I/O Interfaces	2 x USB 3.0 (front)
	1 x USB 2.0 (rear)
Max. PoE (using Flexi Port Module)	1 Module: 4 Ports, 60W max.
Modularity
Flexi Port Slots	1
Other Optional Add-On Modules	SFP VDSL modem
	Transceivers
Flexi Port Modules (Optional)	8 port GE copper
	8 port GE SFP Fiber*
	4 port 10GE SFP+ Fiber*
	4 port GE copper bypass (2 pairs)
	4 port GE copper PoE + 4 port GE copper
	4 port 2.5 GE copper PoE
	2 port GbE Fiber (LC) bypass + 4 port GbE SFP Fiber
Redundancy
2nd Power Supply	Optional external

Performance Test Methodology

General	Maximum throughput measured under ideal test conditions using industry standard Keysight-Ixia BreakingPoint test tools. Actual performance may vary depending on network conditions and activated services.
Firewall	Measured using HTTP traffic and 512 KB response size
Firewall IMIX	UDP throughput based on a combination of 66 byte, 570 byte and 1518 byte packet sizes
IPS	Measured with IPS with HTTP traffic using default IPS ruleset and 512 KB object size.
IPsec VPN	HTTP throughput using multiple tunnels and 512 KB HTTP response size
TLS inspection	Performance measured with IPS with HTTPS sessions and different cipher suites.
Threat Protection	Measured with Firewall, IPS, Application Control, and malware prevention enabled using HTTP 200 KB response size
