Sophos XGS 6500 Firewall Appliances - XG6ETCHAU

+

XGS Series

Next-Gen Firewall Appliances

• Real-Time Threat Protection
• Easy and Flexible Deployment
• Single Point of Security Management
• Patented Layer-8 Identity control
• Service Length #: 39 months License

XGS Series Next-Gen Firewall Appliances

Enterprise and Campus Edge: 2U Models

Distributed and growing enterprises in need of maximum throughput for even the most complex network get the ultimate in protection, performance, and business continuity with these next-gen firewalls. The new Xstream Flow Processors provide dedicated hardware acceleration to easily handle full-on protection for today’s encrypted, cloud-hosted applications and traffic. These models strike the perfect balance between port density and modularity, with a range of high-speed, built-in ports, plus additional high-density Flexi port modules available to extend connectivity even further.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Performance
Firewall	120,000 Mbps
TLS Inspection	16,000 Mbps
Firewall IMIX	60,000 Mbps
IPS	50,750 Mbps
IPsec VPN	109,800 Mbps
NGFW	46,500 Mbps
Threat Protection	17,850 Mbps
Latency (64 Byte UDP)	5 µs

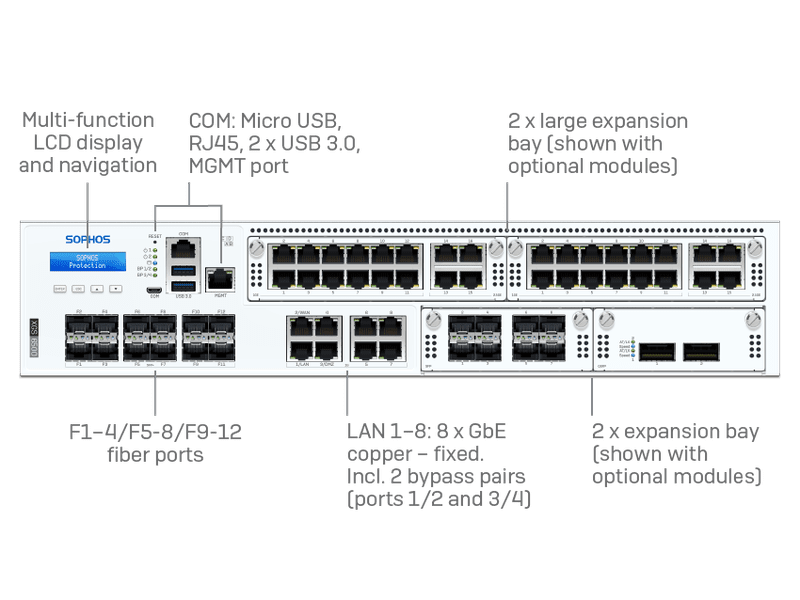

Connectivity
Ethernet Interfaces (Fixed)	8 x GE copper
	12 x SFP+ 10 GE Fiber*
Management Interfaces	1 x RJ45 MGMT
	1 x COM RJ45
	1 x COM Micro-USB
Bypass Port Pairs (Fixed)	2
Other I/O Interfaces	2 x USB 3.0 (front)
Max. Port Density (incl. modules)	68
Modularity
Flexi Port Slots	2 + 2 for High-density modules
Flexi Port Modules (Optional)	See below
Other Optional Add-On Modules	SFP VDSL modem
	Transceivers
Redundancy
Power Supply	2 x hot-swap internal
Dual SSD	Included
	HW RAID built into CPU
NOTES: * Transceivers sold separately.

Performance Test Methodology

General	Maximum throughput measured under ideal test conditions using industry standard Keysight-Ixia BreakingPoint test tools. Actual performance may vary depending on network conditions and activated services.
Firewall	Measured using HTTP traffic and 512 KB response size
Firewall IMIX	UDP throughput based on a combination of 66 byte, 570 byte and 1518 byte packet sizes
IPS	Measured with IPS with HTTP traffic using default IPS ruleset and 512 KB object size.
IPsec VPN	HTTP throughput using multiple tunnels and 512 KB HTTP response size
TLS inspection	Performance measured with IPS with HTTPS sessions and different cipher suites.
Threat Protection	Measured with Firewall, IPS, Application Control, and malware prevention enabled using HTTP 200 KB response size
