1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile
PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps

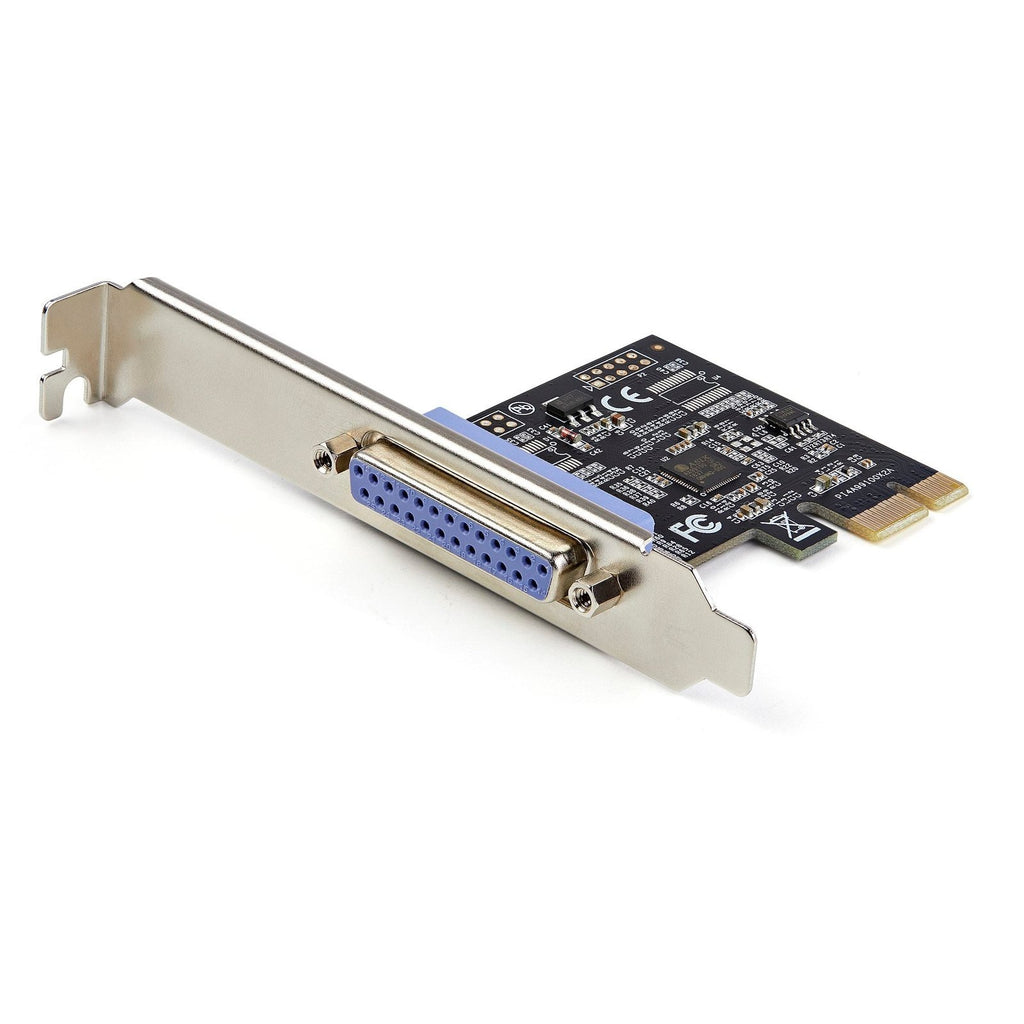

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer

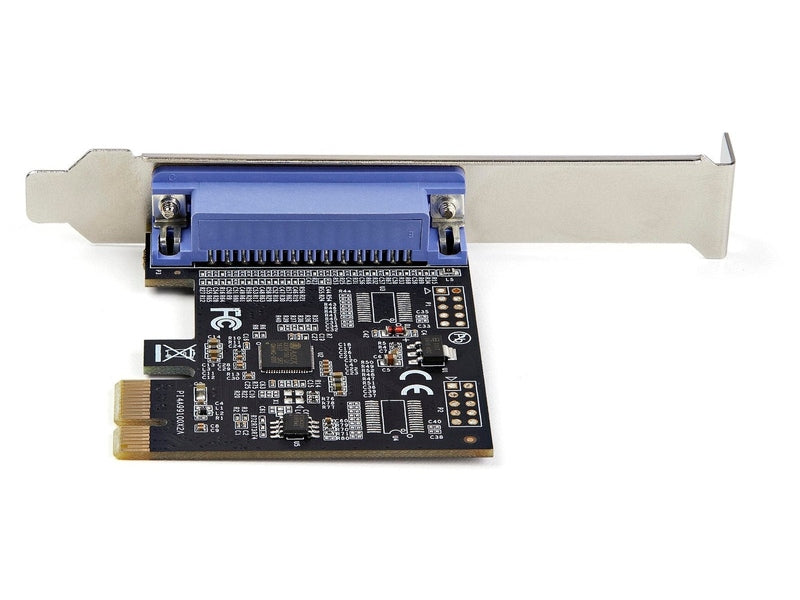

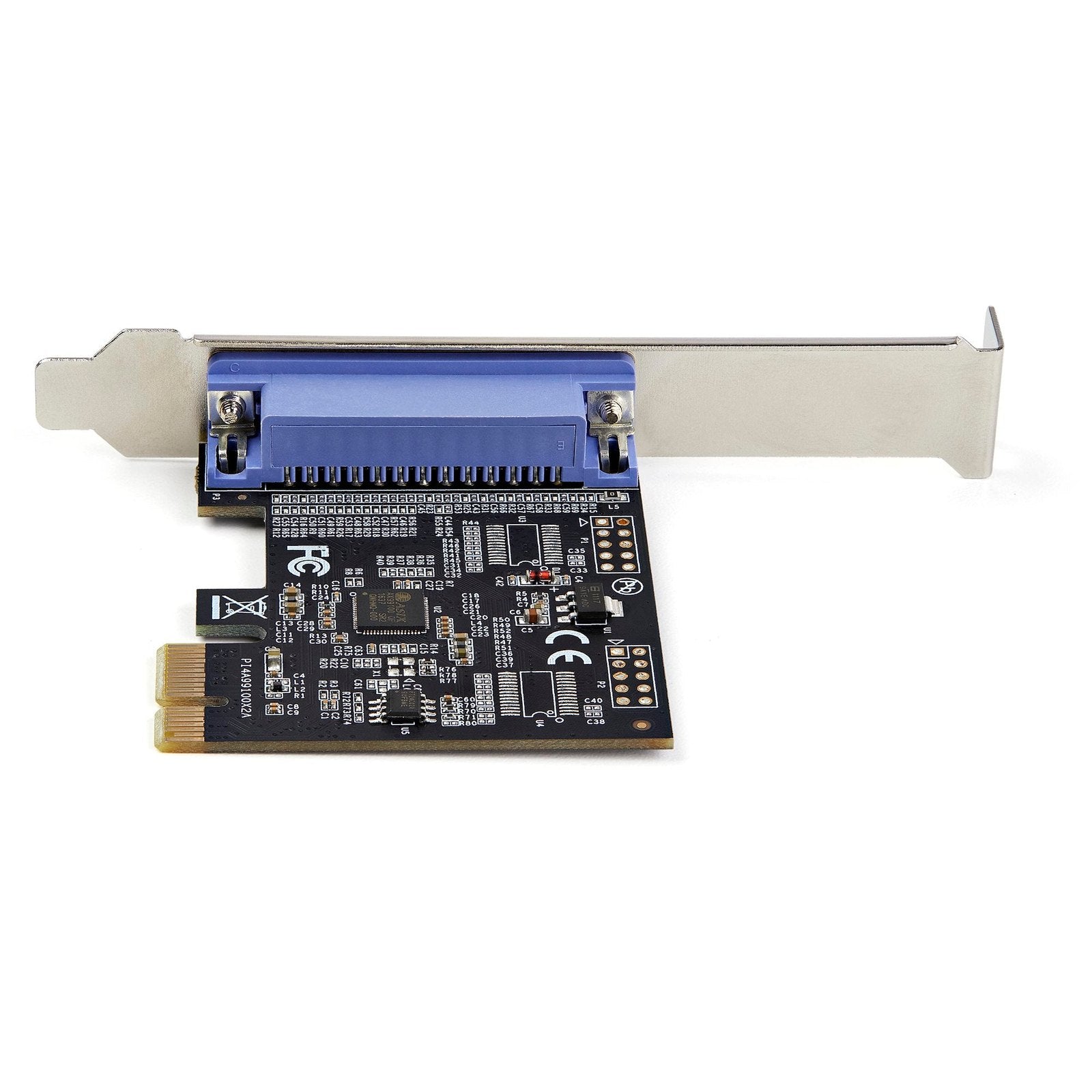

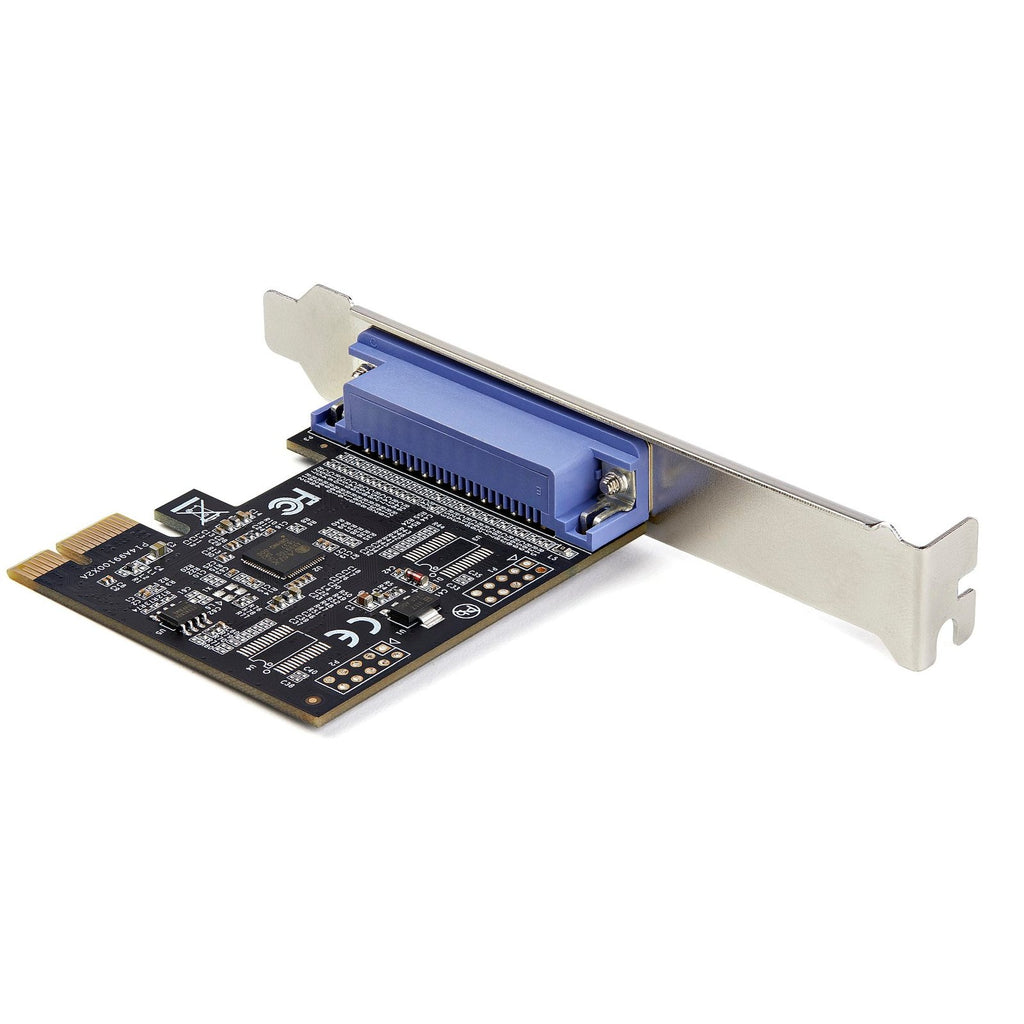

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile
PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps
This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
| PCI Express Parallel Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x1 |

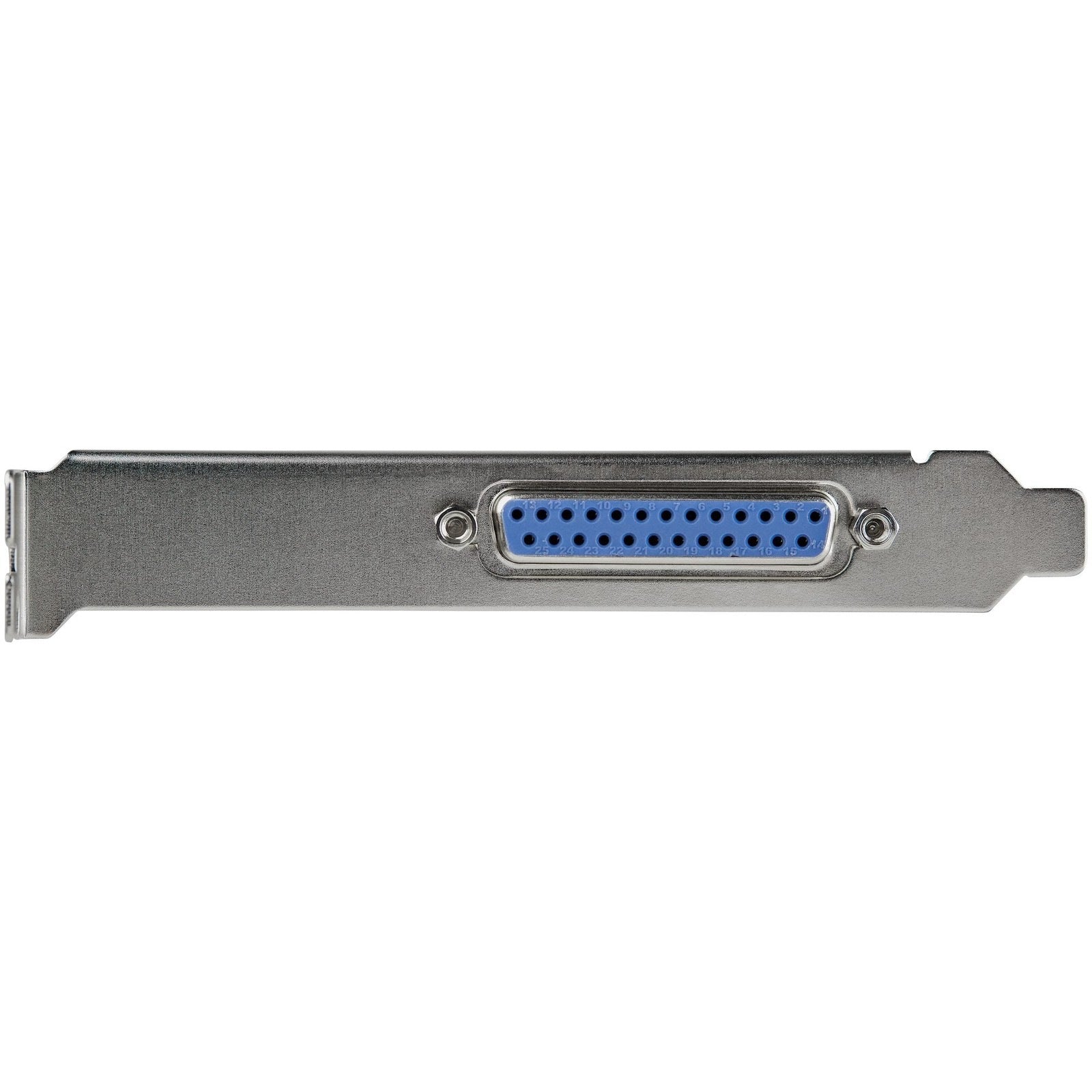

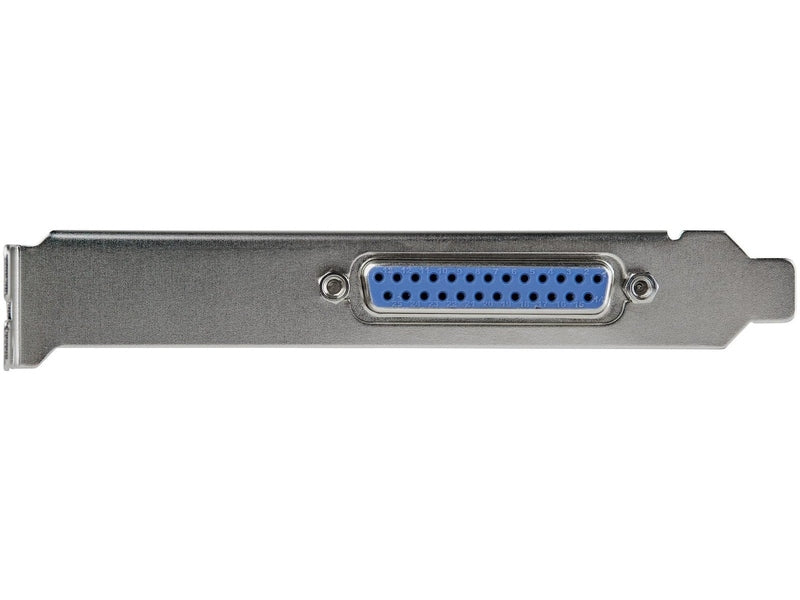

| External Ports | 1 × DB-25 (25 pin, D-Sub) |
| Environmental | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | 20°C to 60°C (68°F to 140°F) |
| Humidity | 40%–80% RH |
| Hardware | |
| Ports | 1 |
| Interface | Parallel |
| Bus Type | PCI Express |
| Card Type | Standard Profile (Low Profile bracket included) |
| Port Style | Integrated on Card |
| Industry Standards | PCI Express 2.0, IEEE 1284 |
| Chipset ID | Asix AX99100 |
| Packaging Information | |
| Package Height | 1.5 in [3.7 cm] |
| Package Length | 5.8 in [14.7 cm] |
| Package Width | 8.4 in [21.4 cm] |
| Package Weight | 4.7 oz [134.0 g] |
| Package Quantity | 1 |
| Performance | |
| Max Data Transfer Rate | 2.5 Mbps |
| General Specifications | Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, ECP (Extended Capabilities Port) |
| MTBF | 958,000 hours |
| Physical Characteristics | |
| Color | Black |
| Product Height | 0.7 in [1.8 cm] |
| Product Length | 4.7 in [12.0 cm] |
| Product Width | 2.9 in [7.3 cm] |
| Product Weight | 1.6 oz [45.0 g] |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.x and up (LTS versions only) |
| What's in the Box | |
| Included Items | 1 × Quick-Start Guide 1 × PCI Express Parallel Card 1 × Full Profile Bracket (Installed) 1 × Low Profile Bracket |
