Description
Overview

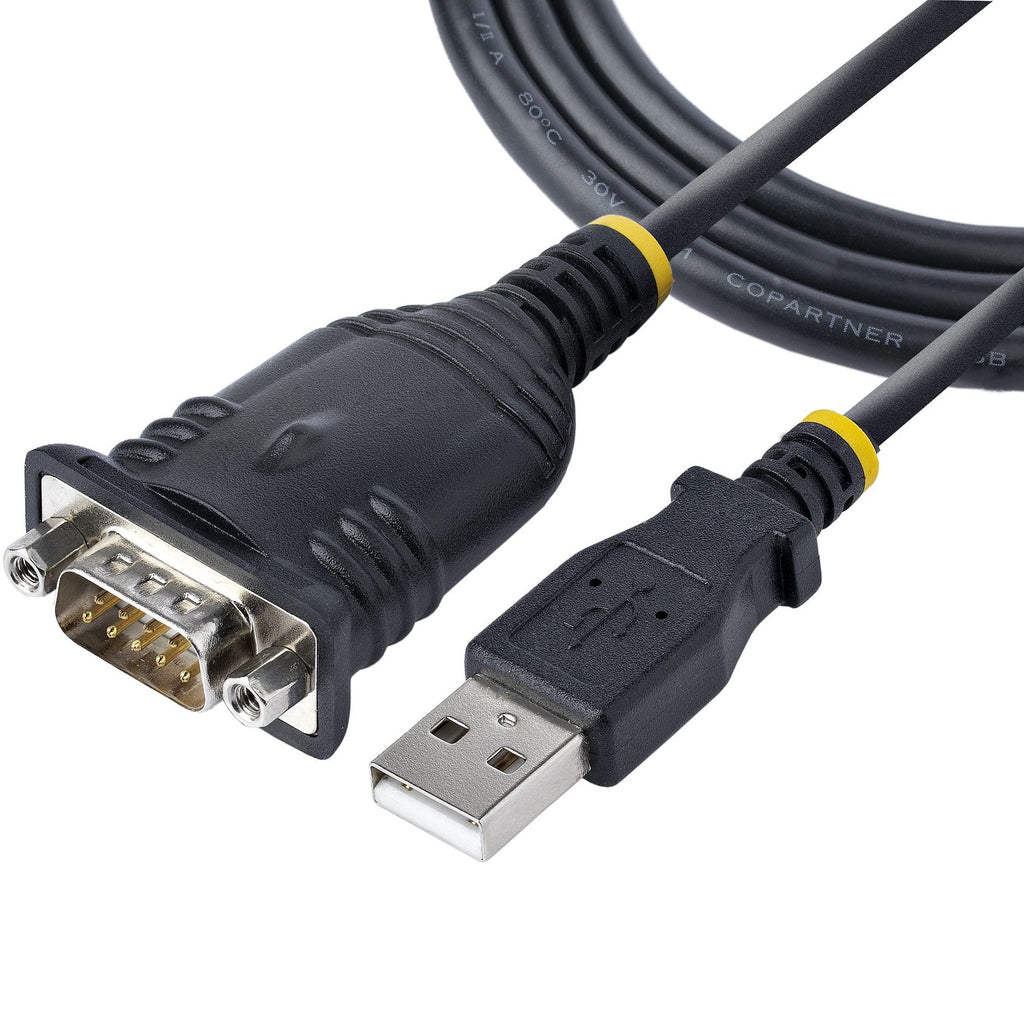

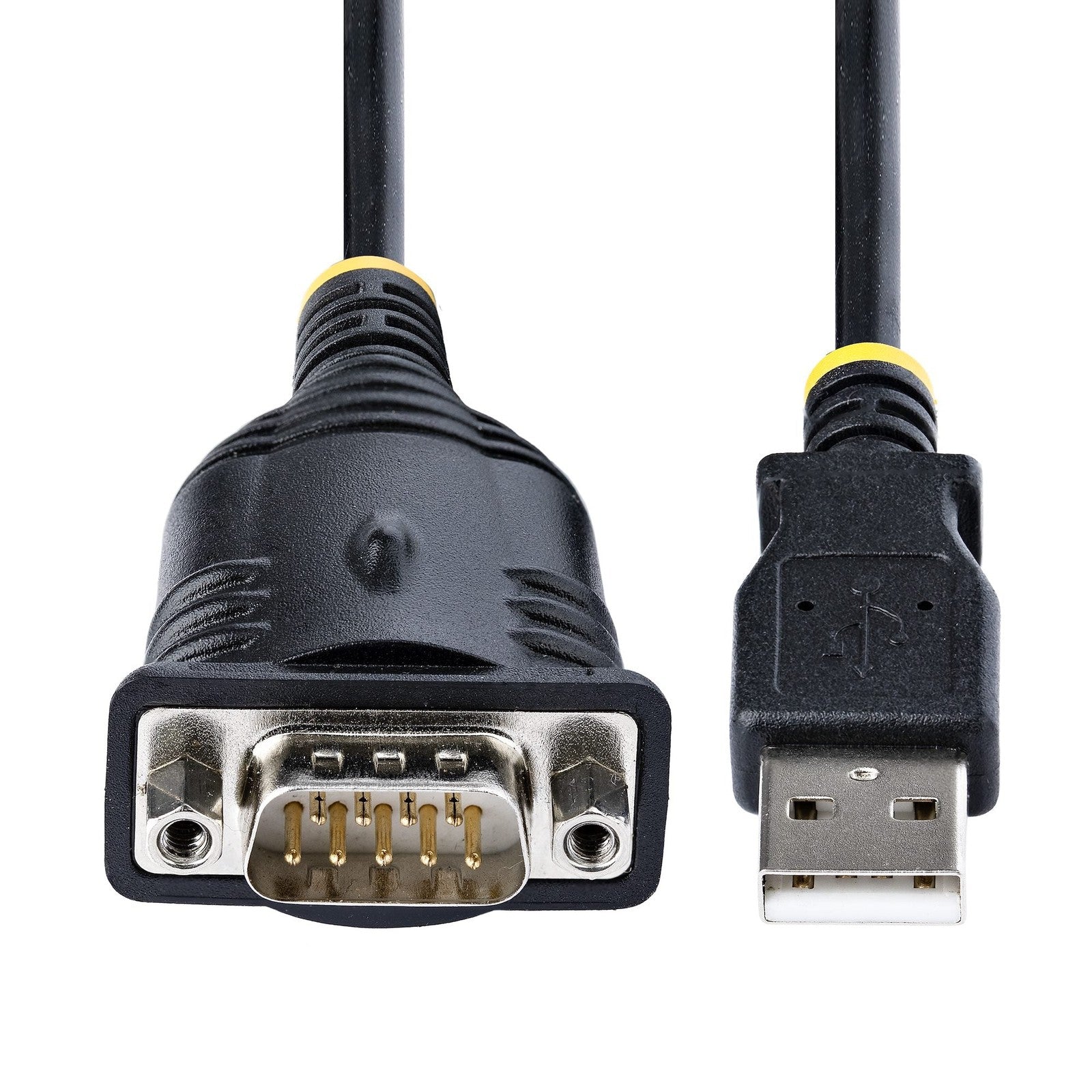

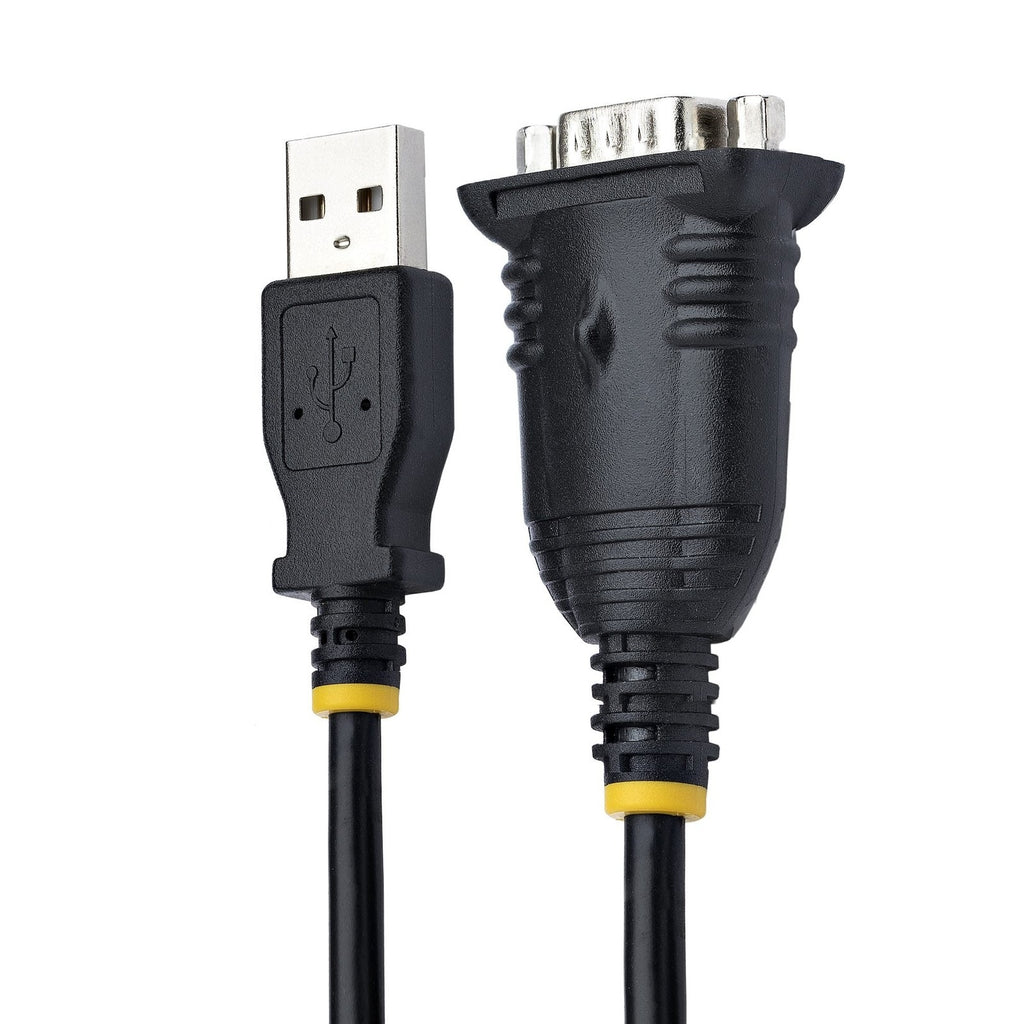

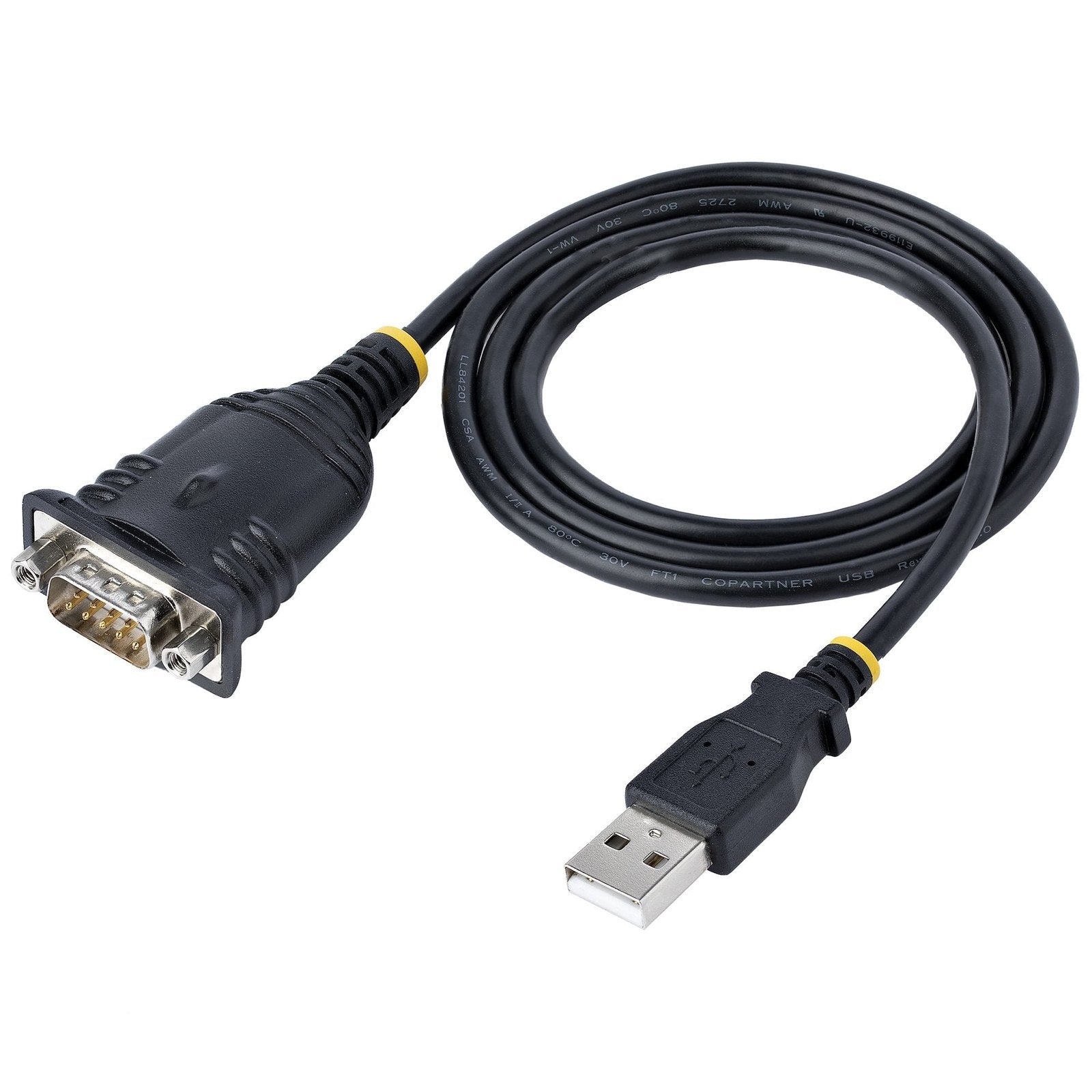

The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
| USB to Serial Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 x DB-9 (9 pin, D-Sub) 1 x USB 2.0 Type-A (4 pin, 480Mbps) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 50% to 90% RH Non-Condensing |
| Hardware | |
| Ports | 1 |
| Interface | Serial |
| Bus Type | USB 2.0 |
| Port Style | Cable Adapters |
| Industry Standards | USB 1.1/2.0, RS-232 |
| Chipset ID | Prolific - PL2303GT |
| Packaging Information | |
| Package Height | 2.3 cm (0.9 in) |
| Package Length | 13.3 cm (5.2 in) |
| Package Width | 19.9 cm (7.8 in) |
| Shipping Weight | 74.0 g (2.6 oz) |
| Package Quantity | 1 |
| Performance | |
| Serial Protocol | RS-232 |
| Max Baud Rate | 921.6 Kbps |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, CTS/RTS, DSR/DTR, XON/XOFF |
| Parity | Even, Odd, None, Space, and Mark |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Product Height | 1.6 cm (0.6 in) |
| Product Length | 91.4 cm (36.0 in) |
| Product Width | 4.5 cm (1.8 in) |
| Weight of Product | 60.0 g (2.1 oz) |
| Cable Length | 914.4 mm (36.0 in) |
| Software | |
| OS Compatibility | Windows® 7, 8.1, 10, 11 Windows Server® 2016, 2019, 2022 macOS 10.11 to 10.15, 11.0 to 15.0 Linux 4.15.x and up (LTS only) Chrome OS™ |
| Special Notes / Requirements | |
| System and Cable Requirements | Computer with an available USB Type A port version 1.1 or greater |
| What's in the Box | |
| Included in Package | 1 x USB to Serial Adapter |
