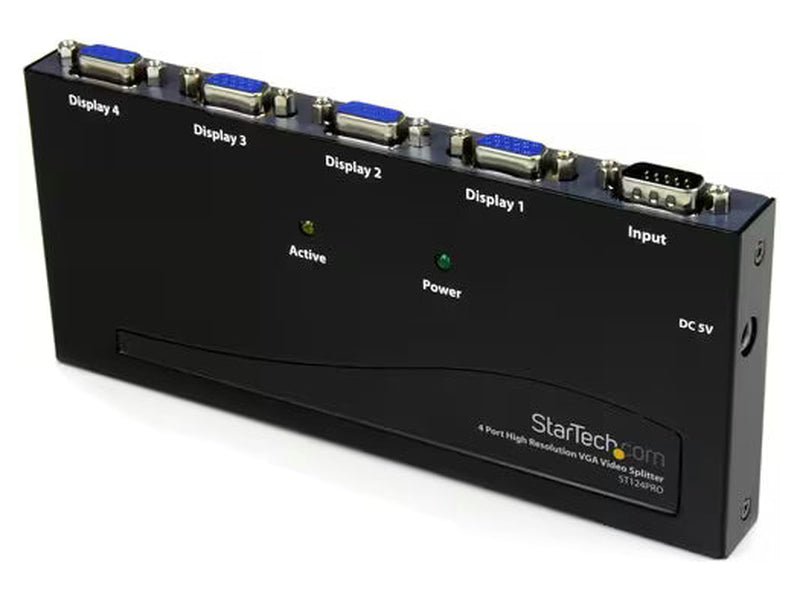

StarTech 2/4/8-Port High Resolution VGA Video Splitter
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. Male to Female VGA extension cable required (MXT101HQ)
Specification
| Media & Performance |
| Maximum Operating Distance |
64.01 m |
| Power Description |
| Input Voltage |
120 V AC |
|
230 V AC |
| Video |
| Maximum Video Resolution |
2048 x 1536 |
| Maximum Video Bandwidth |
350 MHz |
| Interfaces/Ports |
| Number of VGA Outputs |
4 |
| VGA In |
Yes |
| VGA Out |
Yes |
| Number of VGA Inputs |
1 |
| General Information |
| Product Type |
Signal Splitter |
| Manufacturer Part Number |
ST124PRO |
|
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
Each |
| Manufacturer |
StarTech.com |
| Product Name |
4 Port High Resolution VGA Video Splitter - 350 MHz |
| Brand Name |
StarTech.com |
| Miscellaneous |
| Additional Information |
- Daisy chainable for almost unlimited expansion
- Uses standard monitor extension cables
- DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)
|
| TAA Compliant |
Yes |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/st124pro_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/st124pro_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/st124pro_weee.pdf |
| Physical Characteristics |
| Weight (Approximate) |
392 g |
| Length |
182.9 mm |
| Height |
20.3 mm |
| Width |
78.7 mm |
| Product Color |
Black |
| Color Family |
Black |
| Product Material |
Steel |
|
