Description

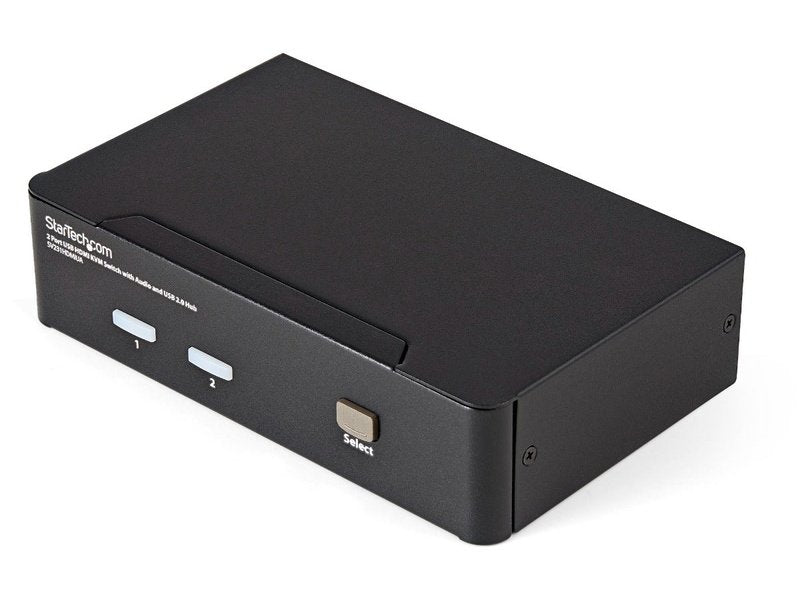

2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
- Supports push button and hotkey PC Switching
- Integrated USB 2.0 hub - Share USB peripherals between PCs
- Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080)
- No software drivers required; OS independent
- Supports both HDMI® audio and 3.5mm analog audio
- Supports Plug&Play operation
- Independent Audio switching
- Audible tone to indicate PC switching
- User-defined scan time intervals
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Applications
- Ideal for sharing two newer HDMI® multimedia PCs with an HDMI monitor
- Students can use a single monitor and connect their gaming console along side their PC or laptop
- Allows multimedia PCs to share peripherals and a single high definition television
- Use in the Office to connect two multimedia PCs to a single console connection increasing productivity
The StarTech.com Advantage
- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI® audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
Specifications
Brand Name
- StarTech
Product Number
- SV231HDMIUA
4 - Console Interface(s)
- USB Type-A (4 pin) USB 2.0
1 - Console Interface(s)
- HDMI (19 pin)
2 - Console Interface(s)
- 3.5 mm Mini-Jack (3 Position)
2 - Host Connectors
- USB B (4 pin)
- HDMI (19 pin)
4 - Host Connectors
- 3.5 mm Mini-Jack (3 Position)
Operating Temperature
- 0°C to 40°C (32°F to 104°F)
Storage Temperature
- -20°C to 60°C (-4°F to 140°F)
Humidity
- 0~80% RH
Audio
- Yes
KVM Ports
- 2
PC Interface
- USB
PC Video Type
- HDMI
Number of Monitors Supported
- 1
Rack-Mountable
- No
Cables Included
- No
Daisy-Chain
- No
2 - LED Indicators
- Online/Active (Green - Connected PC is online, Red - PC is selected)
On-Screen Display
- No
IP Control
- No
Hot-Key Selection
- Yes
Maximum Digital Resolutions
- 1920 x 1200
Wide Screen Supported
- Yes
Maximum Number of Users
- 1
Port Selection Support
- Push Button and Hotkeys
MTBF
- 126813 hours
Color
- Black
Material
- Steel
Product Width
- 4.9 in [12.5 cm]
Product Height
- 1.6 in [40 mm]
Product Depth
- 2.8 in [70 mm]
Power Source
- AC Adapter Included
Input Voltage
- 100 - 240 AC
Input Current
- 0.8A
Output Voltage
- 12V DC
Output Current
- 1.5A
Center Tip Polarity
- Positive
Plug Type
- M
Power Consumption (In Watts)
- 18
OS Compatibility
- OS independent; No software or drivers required
