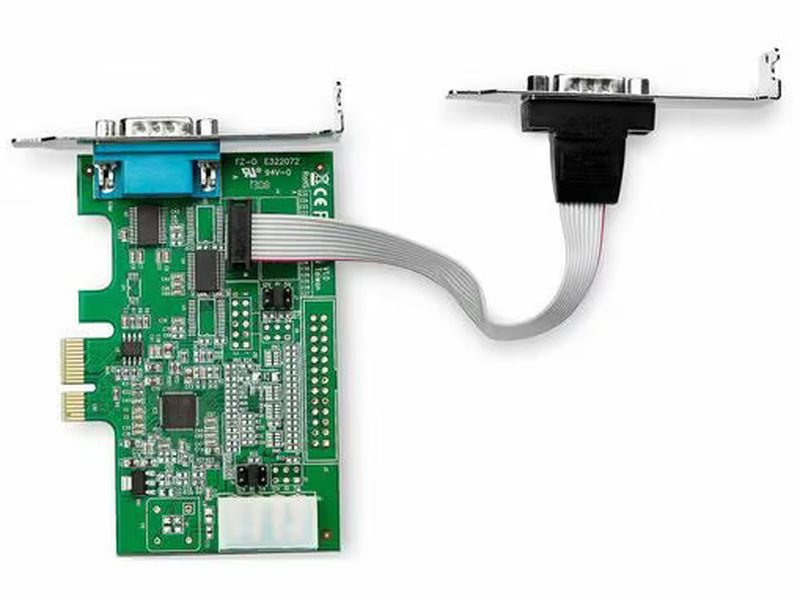

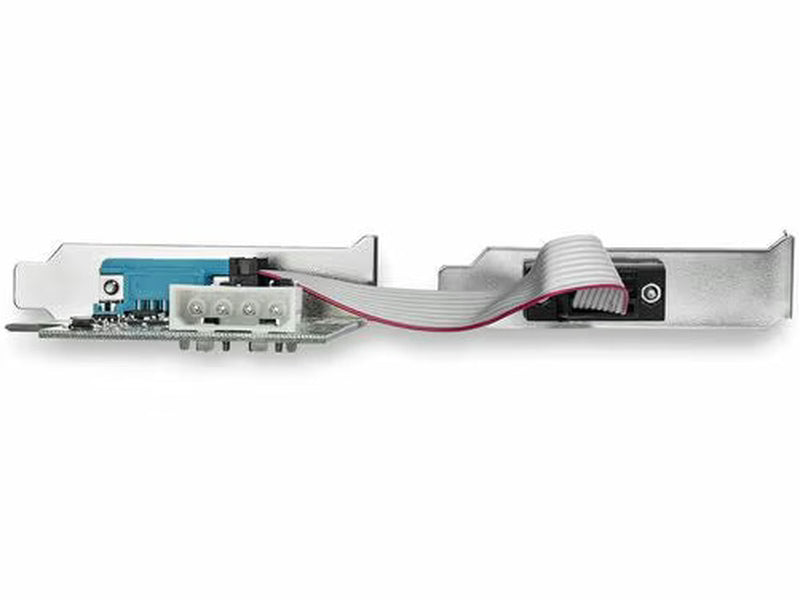

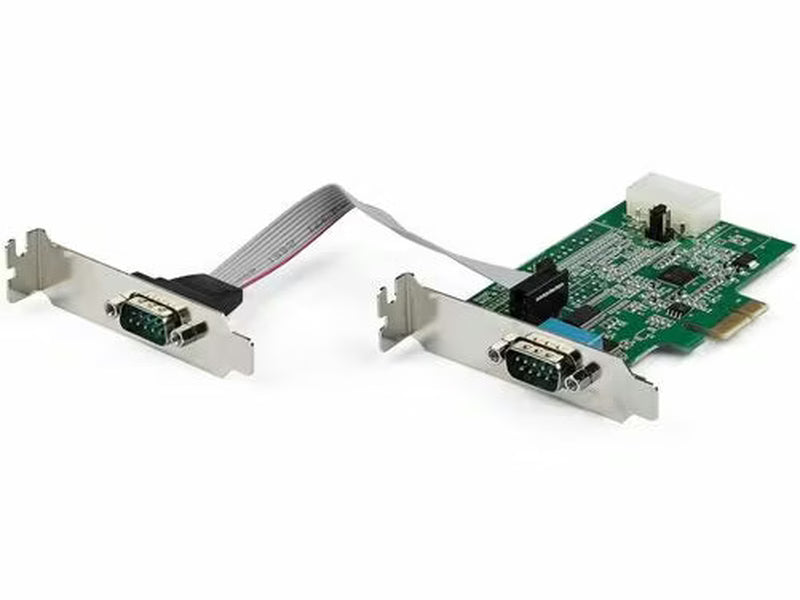

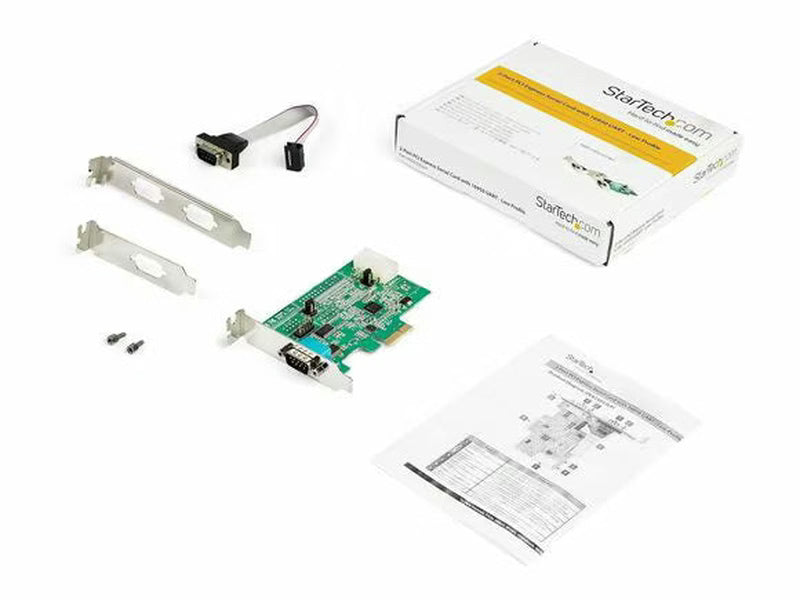

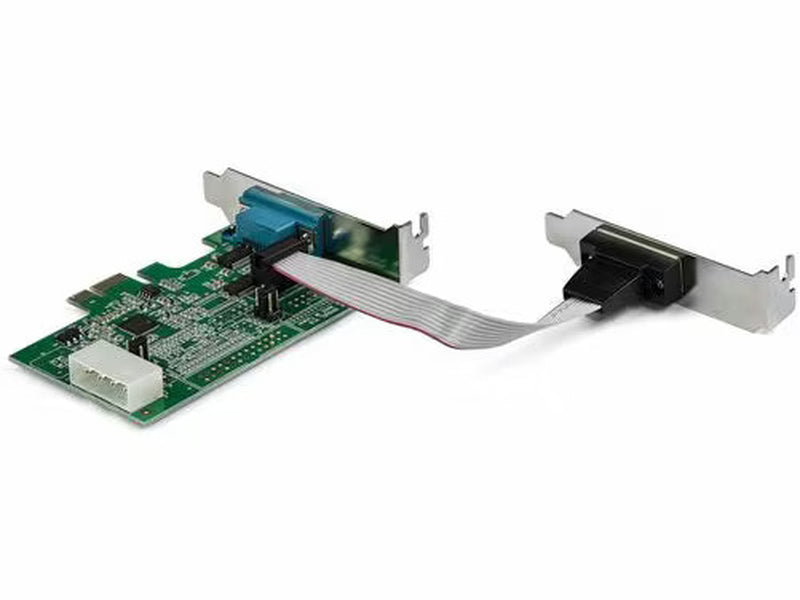

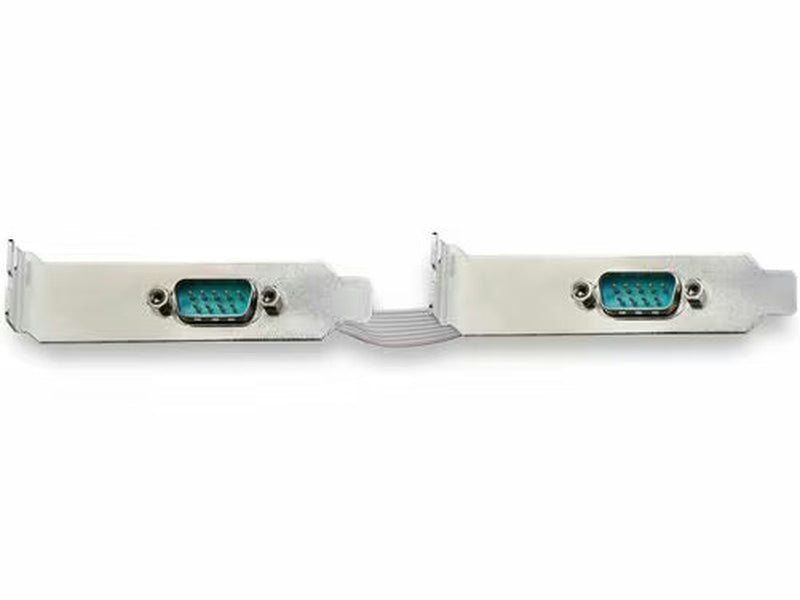

StarTech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9

StarTechSKU: PEX2S953LP

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$99.00
1

Estimate shipping

Description

StarTech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Compatible with industry standard 16950 UART
  • Supports max baud rate of up-to 921.4Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 256-byte depth FIFO per transmitter and receiver
  • Supports 9, 8, 7, 6, 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant

PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specification

Interfaces/Ports
Number of Serial Ports (External) 2
Technical Information
Host Interface PCI Express x1
Platform Supported PC
Linux
UART Type 16950
Miscellaneous
TAA Compliant Yes
REACH Declaration URL https://media.startech.com/cms/pdfs/pex2s953lp_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/pex2s953lp_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/pex2s953lp_weee.pdf
General Information
Product Type Serial Adapter
Manufacturer Part Number PEX2S953LP
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name 2-Port RS232 Serial Adapter Card with 16950 UART
Brand Name StarTech.com
Physical Characteristics
Weight (Approximate) 95 g
Form Factor Plug-in Card
Height 78.7 mm
Width 22.9 mm
Depth 104.1 mm
Card Height Low-profile
Product Color Green
Color Family Green
