Description
Overview

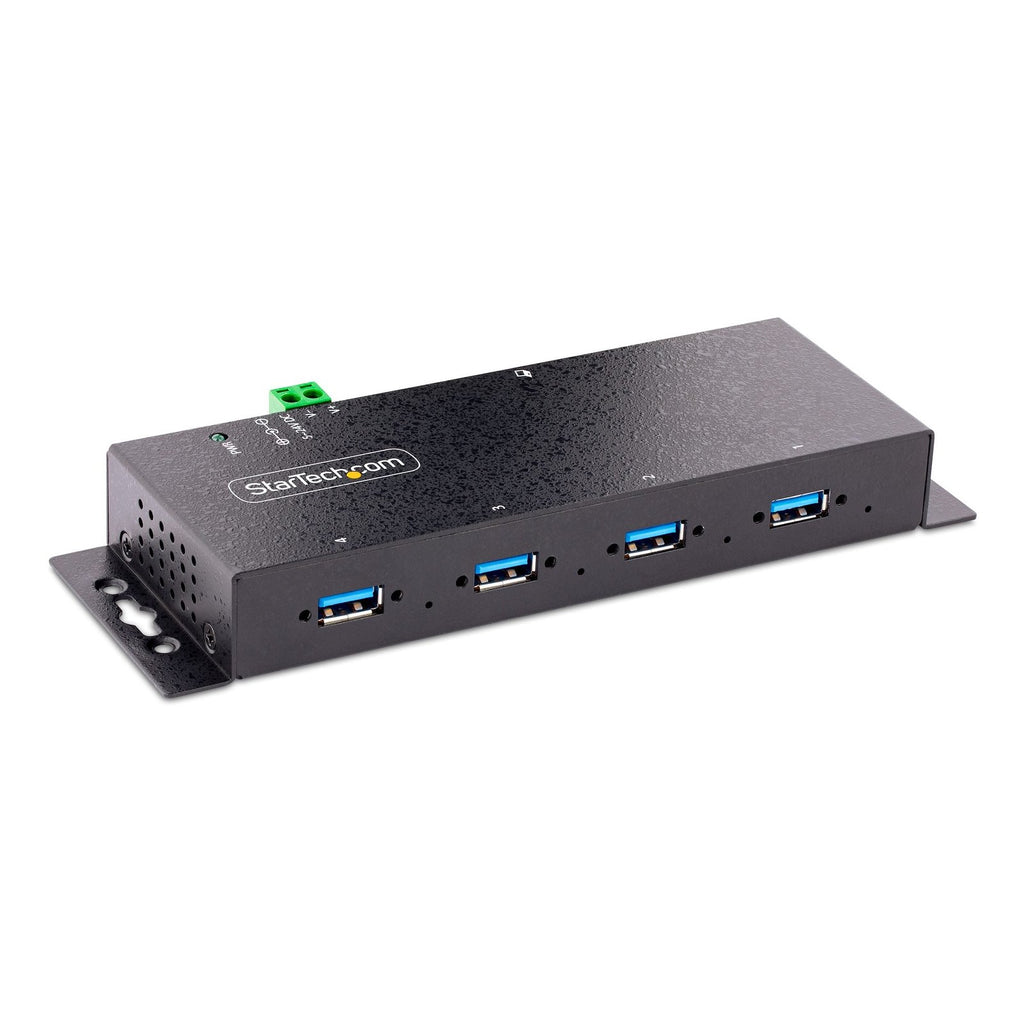

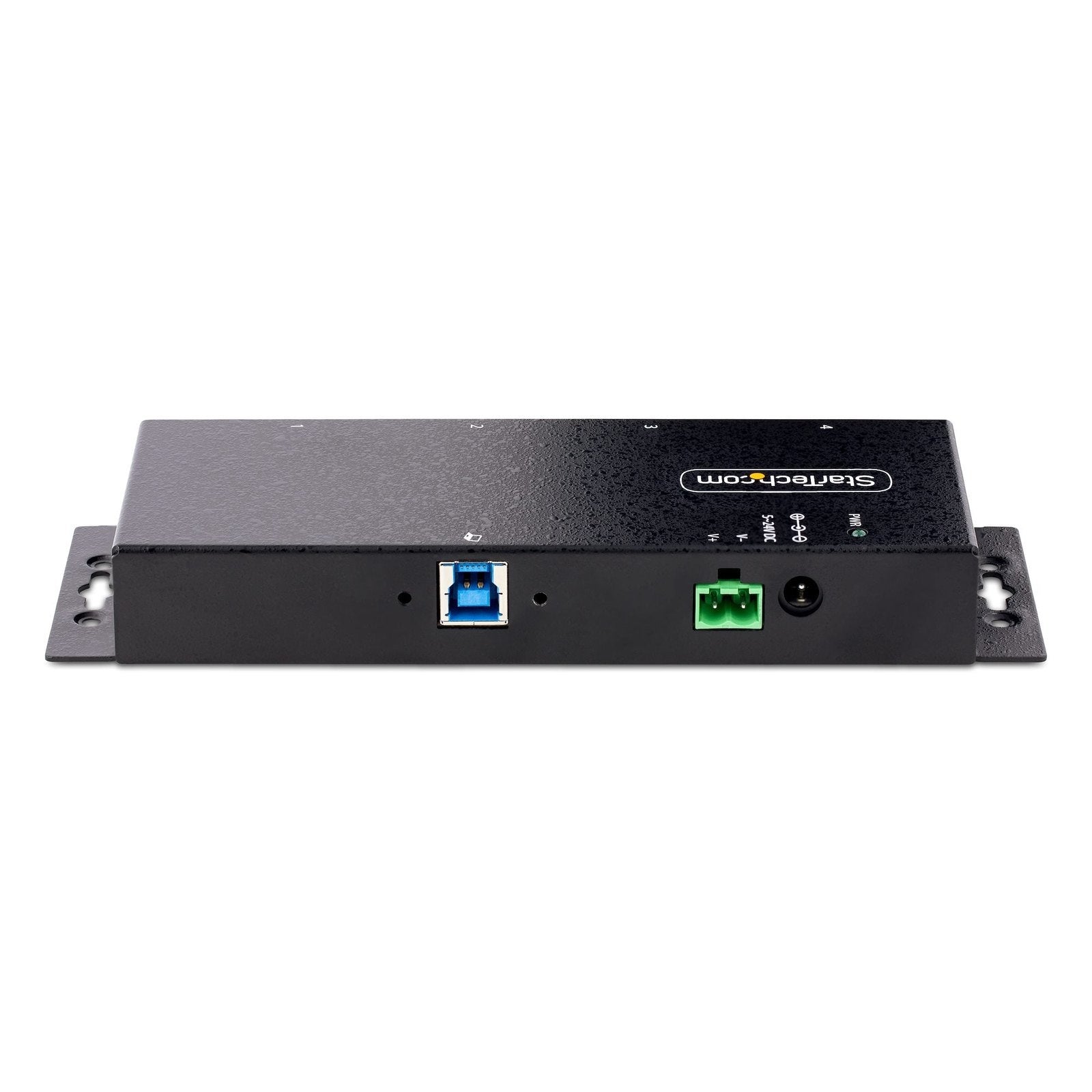

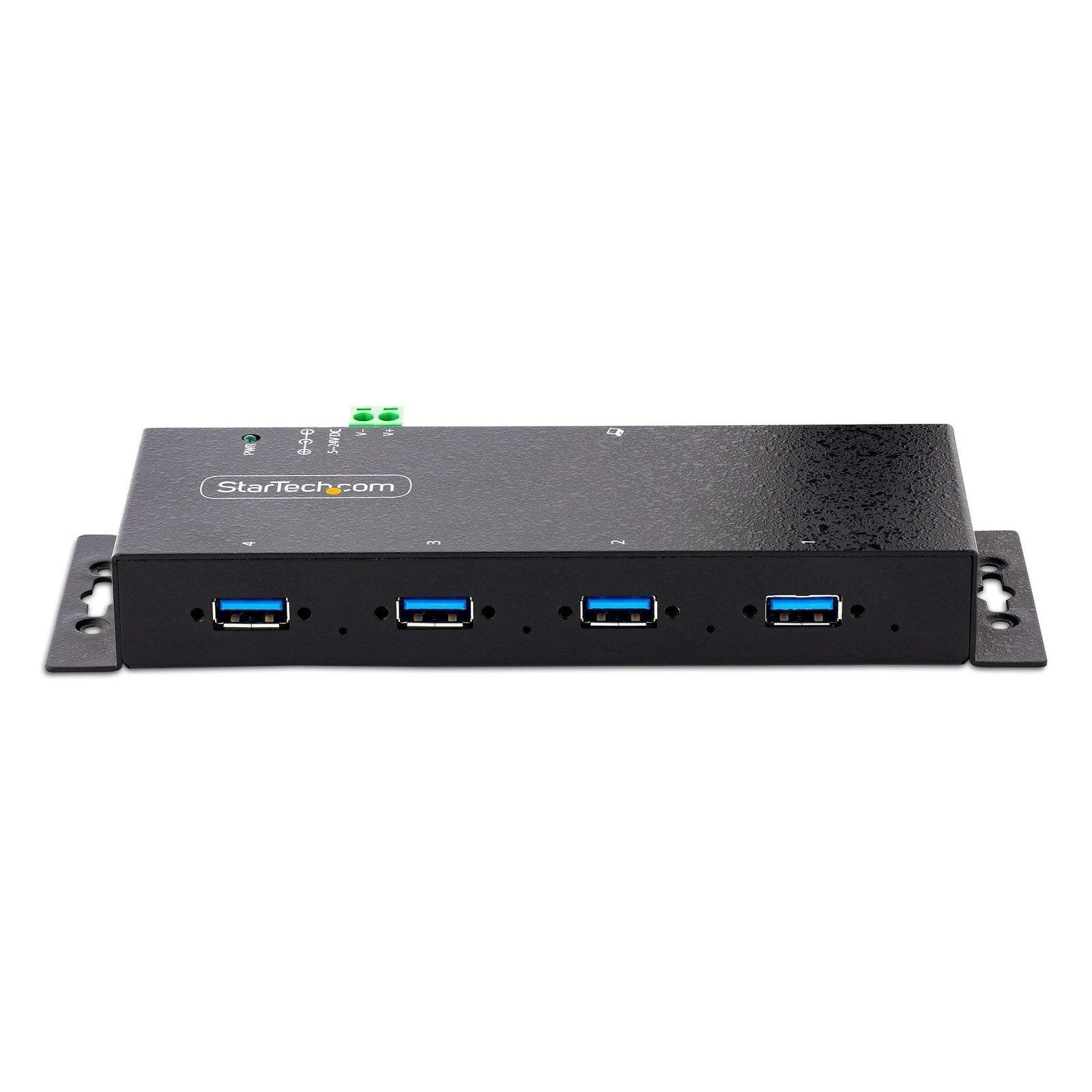

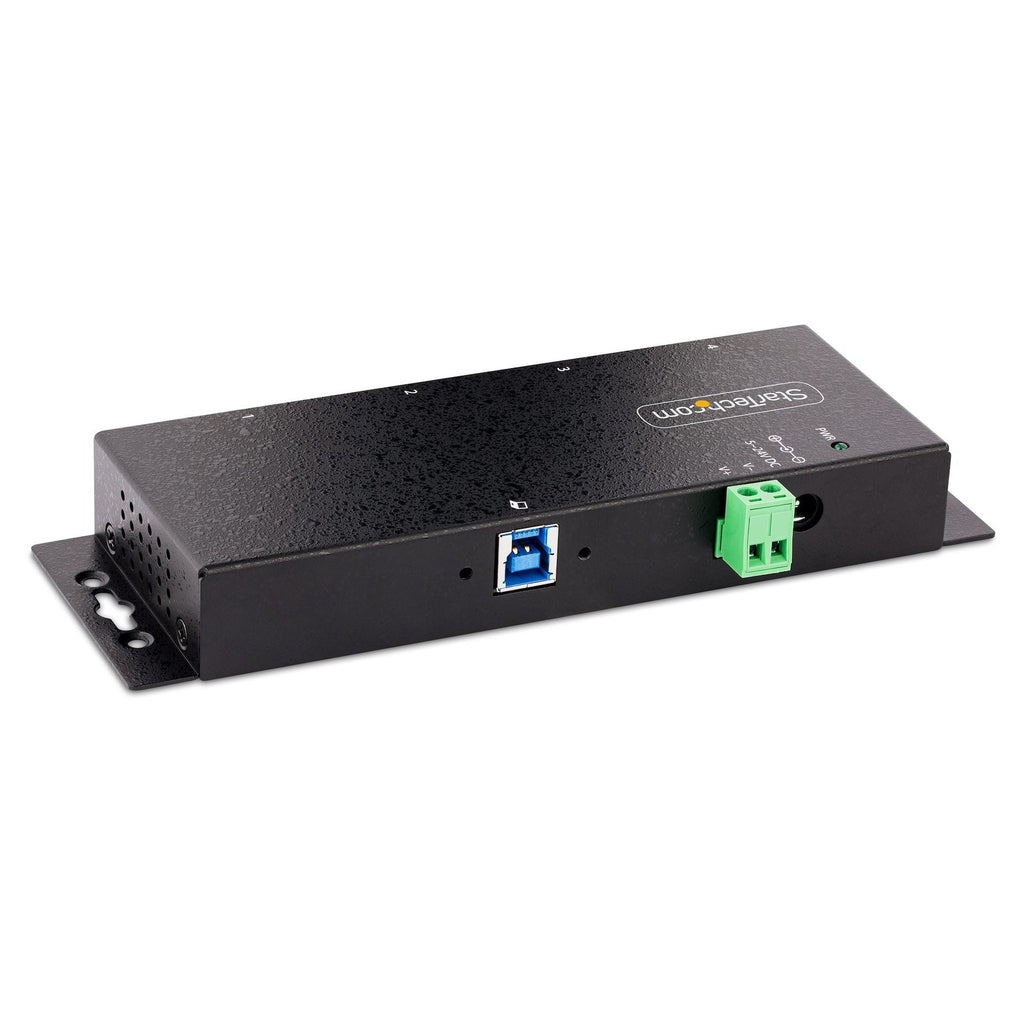

4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.
Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.
Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
| Industrial USB 3.2 Gen 1 Hub Specifications | |
|---|---|
| Connector(s) | |
| External Ports | 1 x Barrel Power Connector (Size M, OD: 5.50mm, ID: 2.10mm) 1 x Terminal Block (2 Wire) 4 x USB Type-A (9 pin, 5 Gbps) 1 x USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% RH |
| Hardware | |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Fast-Charge Port(s) | No |
| Ports | 4 |
| Interface | USB 3.2 Gen 1 (5Gbps) |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
| Chipset ID | VIA/VLI - VL817-Q7 |
| Indicators | |
| LED Indicators | 4 x USB Device Connection (Green) 1 x Power (Green) |
| Packaging Information | |
| Package Length | 21.6 cm (8.5 in) |
| Package Width | 15.1 cm (5.9 in) |
| Package Height | 5.5 cm (2.2 in) |
| Shipping Weight | 0.5 kg (1.1 lb) |
| Package Quantity | 1 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.2 Gen 1 - 5 Gbit/s |
| ESD Protection | ±8kV (Air), ±4kV (Contact) |
| MTBF | 243,753 Hours |
| Physical Characteristics | |
| Color | Black |
| Form Factor | Industrial |
| Product Length | 17.8 cm (7.0 in) |
| Product Width | 5.9 cm (2.3 in) |
| Product Height | 2.3 cm (0.9 in) |
| Weight of Product | 280.0 g (9.9 oz) |
| Material | Steel |
| Cable Length | 1.8 m (6.0 ft) |
| Power | |
| Power Source | Not Included (DC / Terminal Block) |
| Plug Type | M |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB 3.2 Gen 1 Port USB 3.2 Gen 1 (5Gbps) is also known as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0 |
| What's in the Box | |
| Included in Package | 1 x USB Hub 1 x 6 ft (1.8 m) USB-A to USB-B Cable 1 x Terminal Block Connector (Attached) 1 x DIN Rail Mounting Brackets (with Mounting Screws) 1 x Quick-Start Guide |
