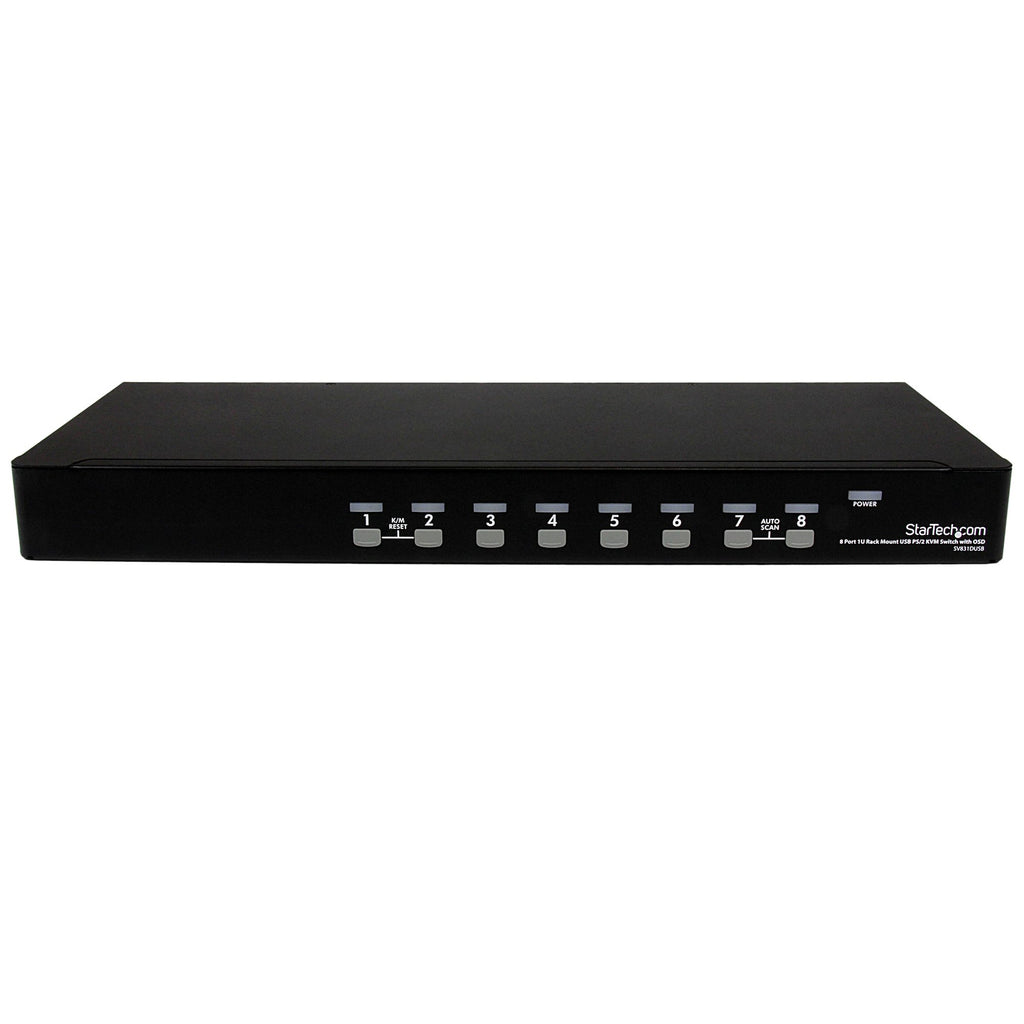

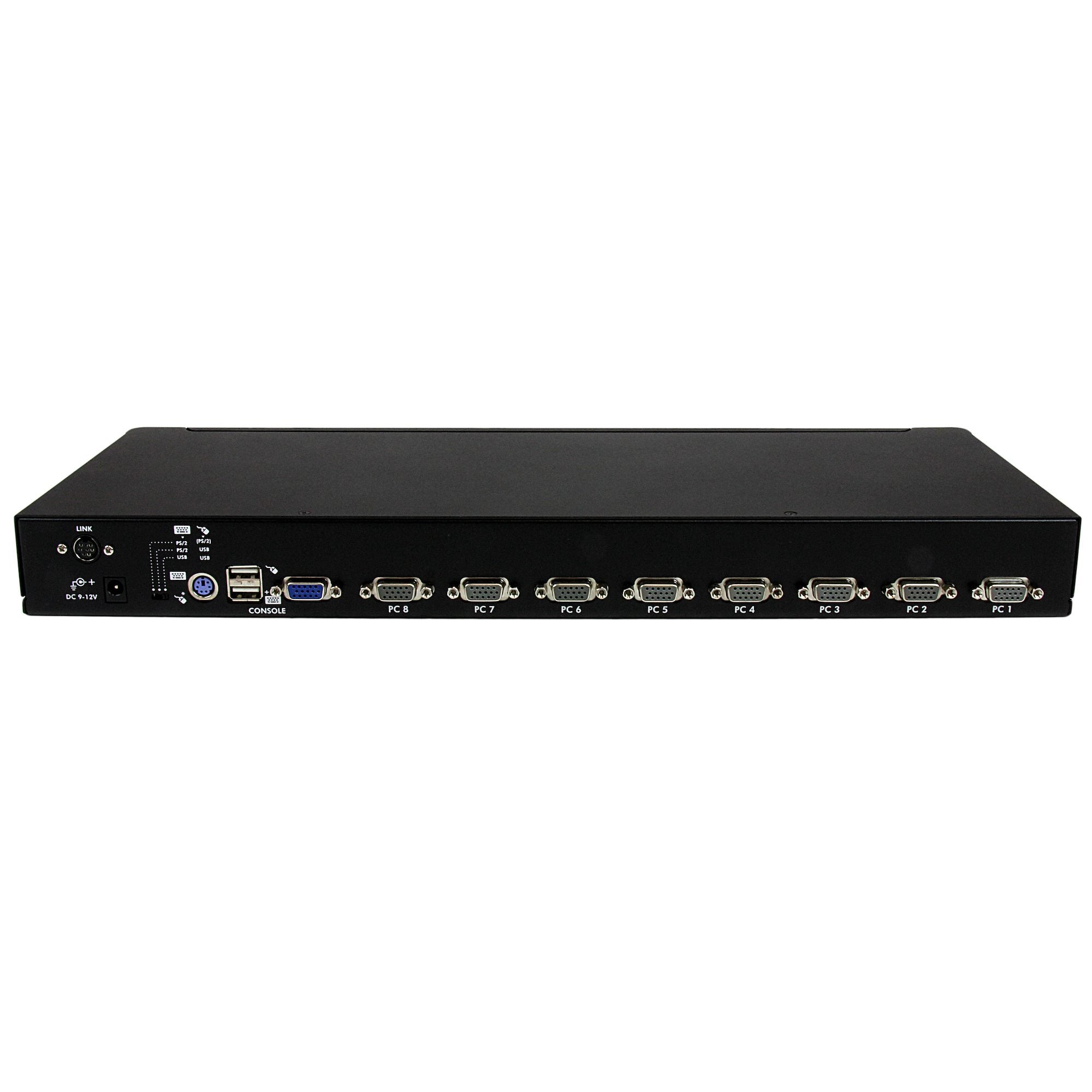

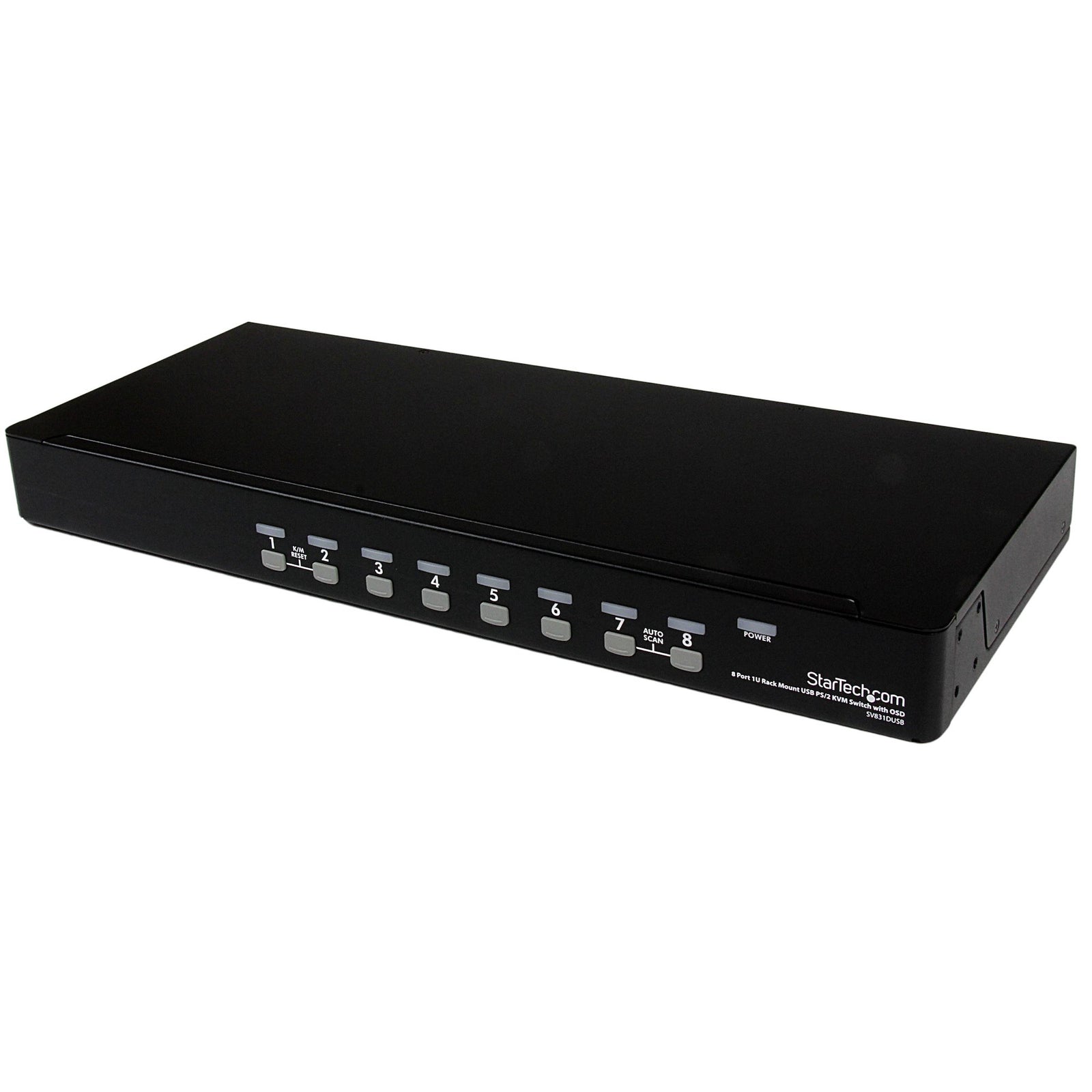

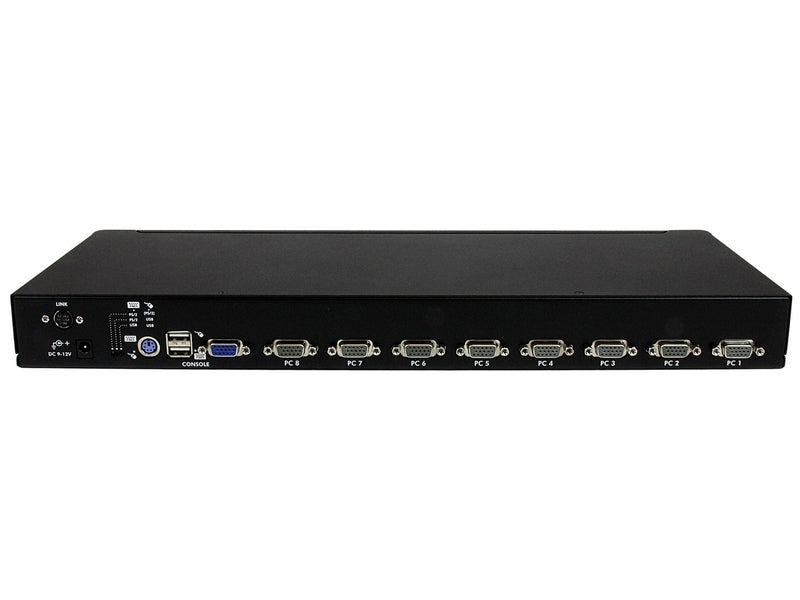

8 Port 1U Rackmount USB PS/2 KVM Switch with OSD - TAA
Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.
The SV831DUSB only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
- 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
8 Port 1U Rackmount USB PS/2 KVM Switch with OSD - TAA
Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.
The SV831DUSB only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
- 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
- 15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
8-Port VGA USB/PS2 KVM Switch Specifications | |
---|---|
Environmental | |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Hardware | |
Audio | No |
KVM Ports | 8 |
PC Interface | USB and PS/2 |
PC Video Type | VGA |
Number of Monitors Supported | 1 |
Rack-Mountable | Yes |
Cables Included | No |
Daisy-Chain | Yes |
Packaging Information | |
Package Quantity | 1 |
Package Length | 10.4 in [26.5 cm] |
Package Width | 23.4 in [59.5 cm] |
Package Height | 3.6 in [9.1 cm] |
Shipping (Package) Weight | 7.2 lb [3.3 kg] |
Performance | |
On-Screen Display | Yes |
DVI Support | No |
IP Control | No |
Hot-Key Selection | Yes |
Maximum Analog Resolutions | 1920 x 1440 @60Hz |
Maximum Number of Users | 1 |
Maximum Cascaded Computers | 64 |
Port Selection Support | Push Button and Hotkeys |
MTBF | 150000 hours |
Physical Characteristics | |
Color | Black |
Material | Steel |
Product Length | 17.2 in [43.8 cm] |
Product Width | 7.1 in [18.0 cm] |
Product Height | 1.8 in [4.5 cm] |
Weight of Product | 6.4 lb [2.9 kg] |
Power | |
Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC |
Input Current | 0.2A |
Output Voltage | 9V DC |
Output Current | 0.6A |
Center Tip Polarity | Positive |
Plug Type | M |
Power Consumption | 5.4W |
Software | |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |

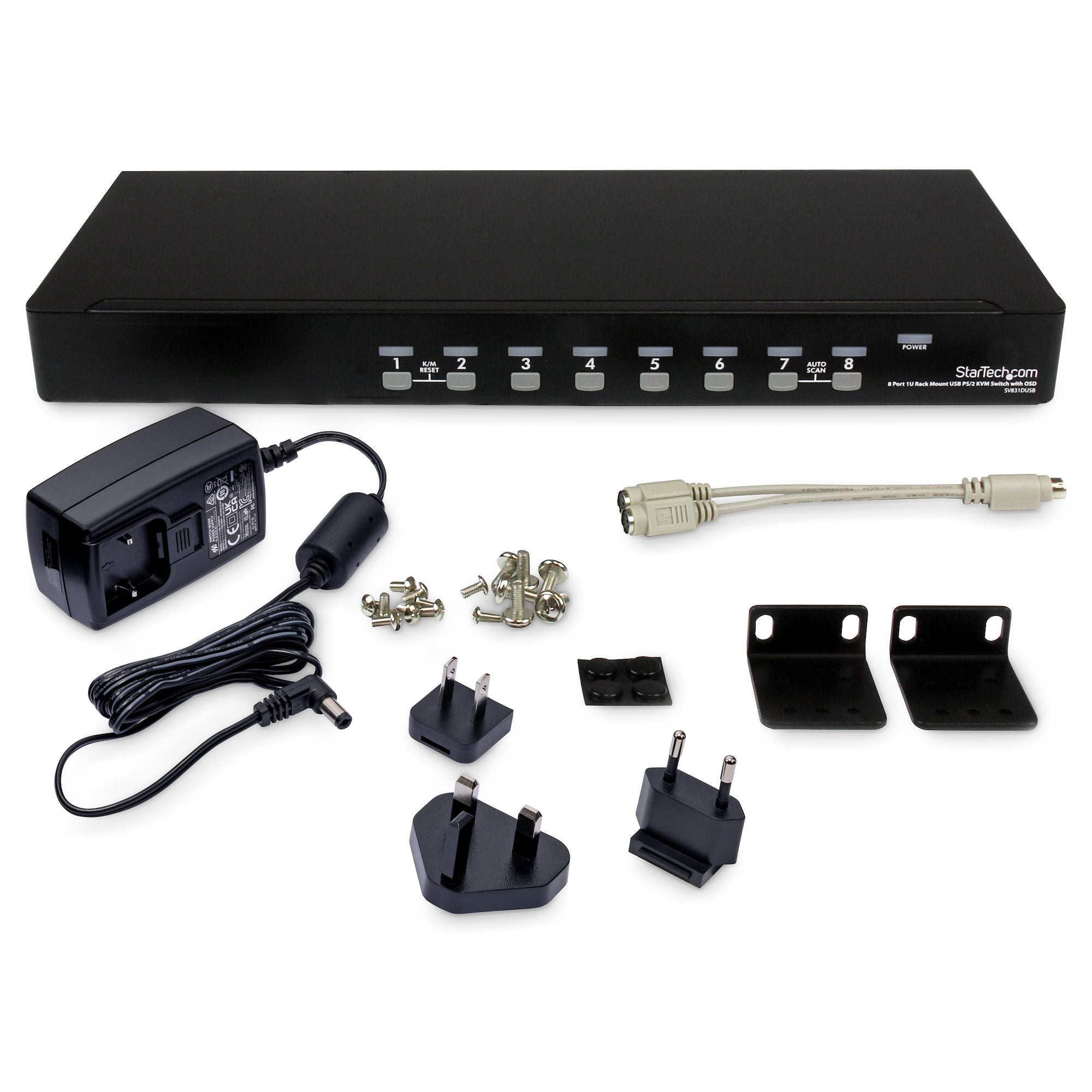

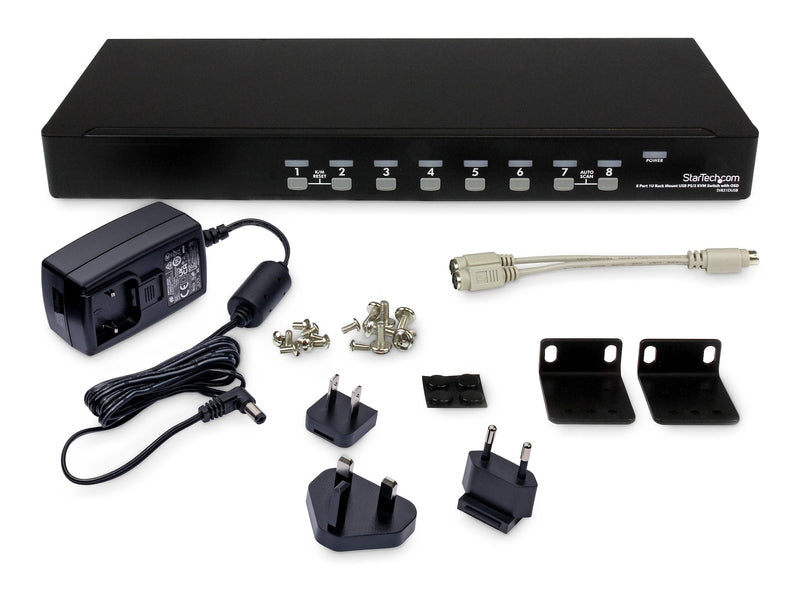

Included in Package | 1 - 8-port KVM switch 2 - mounting brackets 1 - PS/2 keyboard and mouse Y cable 1 - universal power adapter (NA/EU/UK) 4 - foot pads 1 - instruction manual |
