StarTech Desk Mount Monitor Arm, Up to 40inch Screen/17.6lb (8kg)

StarTechSKU: ARMPIVOT2

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$247.00
1

Estimate shipping

Description

StarTech Desk Mount Monitor Arm, Up to 40inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, C-Clamp/Grommet

This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

Top-Down Installation

The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

Height Adjustment with One Smooth Motion

Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

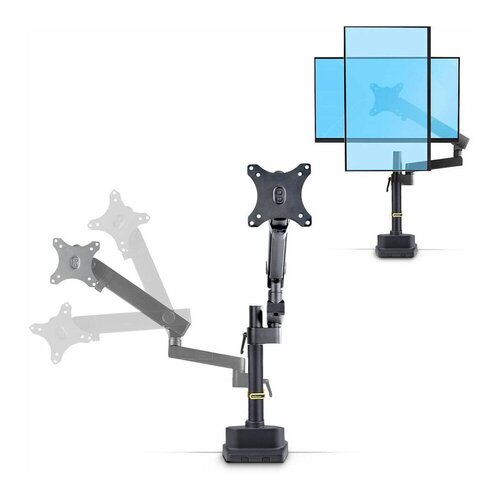

Range of Motion

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Cable Management

Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.

  • DESK MOUNT MONITOR ARM: Single monitor mount supports up to a 40-inch display and 17.6lb (8kg); VESA plate supports 75x75/100x100mm patterns; Articulating and height adjustable steel arm; C-clamp/grommet mounting
  • EASY INSTALLATION: Unique top-screw desk clamp for hassle-free installation without the need to go under the desk; Interchangeable C-clamp/grommet mount for desks up to 2" (5cm) thick; Includes tools for arm tension adjustment; Quick-release VESA plate
  • MECHANICAL SPRING ONE-TOUCH ADJUSTMENT: Full-motion arm features a high-quality mechanical spring for smooth and effortless one-touch motion; Mechanical springs are more robust and resistant to wear over time compared to gas springs; Backed for 5 years
  • RANGE OF MOTION: Toolless adjustments of +/-180° swivel, +/-90° tilt, and +/-90° screen rotation for portrait/landscape orientations; Max height 24.4" (62cm); Max arm extension 23.1" (59.4cm) from the pole; Adjustable height along the 11.1" (28.3cm) pole
  • ORGANIZED WORKSPACE: Cable clips and a cable management channel under the arm keeps cables out of sight and help maintain a tidy setup; Keep the hex keys within arm's reach using the tool storage clip located at the back of the base

Specification

Miscellaneous
Application/Usage Desk
Workspace
Package Contents
  • 1 x Base Assembly
  • 1 x Spring Arm
  • 1 x Swivel Arm
  • 1 x Pole
  • 1 x VESA Plate
  • 1 x Arm Shoulder
  • 1 x 3mm Hex Key
  • 1 x 6mm Hex Key
  • 1 x Tool Holder
  • 1 x Cable Management Clip
  • 1 x Grommet Plate
  • 1 x Grommet Screw
  • 4 x M4x12mm Screws
  • 4 x M5x12mm Screws
  • 4 x Washers
  • 1 x Product Documentation


General Information
Product Type Mounting Arm
Manufacturer Part Number ARMPIVOT2
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name Mounting Arm
Brand Name StarTech.com
Physical Characteristics
Weight (Approximate) 3.58 kg
Form Factor Desktop
Desk
Length 70.4 cm
Height 60.7 cm
Width 11.4 cm
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
75 x 75
Product Color Black
Color Family Black
Product Material Steel
Plastic
Product Information
Device Supported Monitor
Display Screen
Durability Wear Resistant
Features Adjustable Tension
Articulating Arm
Cable Clip
Cable Management
Grommet
Pan
Pivot
Quick Release Mechanism
Robust
Rotate
Spring Arm
Swivel
Tilt
Tool-less Adjustment
Durable
Easy to Install
Ergonomic
Extendable Arm
Flexible
Full Motion
Adjustable Arm
Maximum Load Capacity 7.98 kg
Orientation Landscape/Portrait
Minimum Screen Size Supported 43.2 cm
Maximum Screen Size Supported 101.6 cm (40")
Number of Displays Supported 1
Height Adjustment Type Mechanical Spring
Minimum Extended Height 180.34 mm
Minimum Swivel Angle -180°
Maximum Swivel Angle 180°
Minimum Tilt Angle -90°
Maximum Tilt Angle 90°
Height Adjustable Yes
Maximum Rotate Angle 360°
Maximum Pan Angle 180°
Mount Function Swivel
Rotate
Pivot
Pan
Extendable
Desktop
Tilt
Articulating
Cable Management
