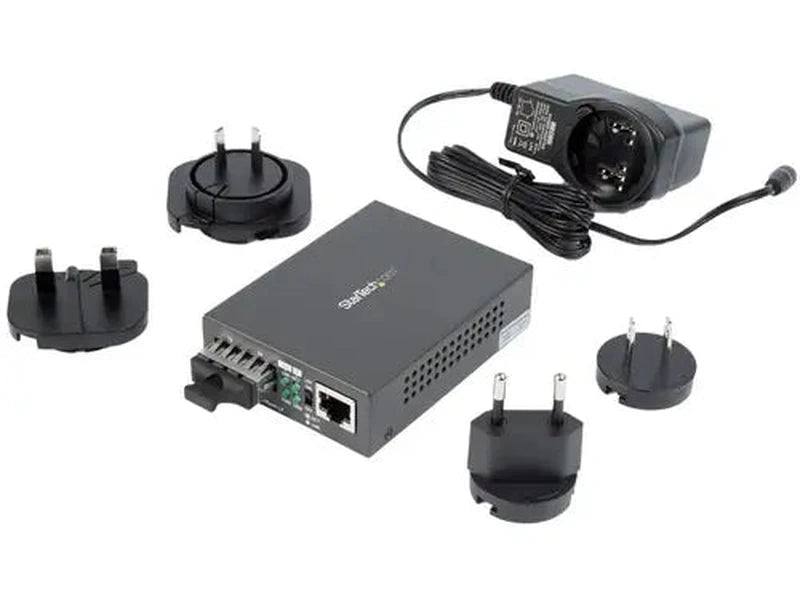

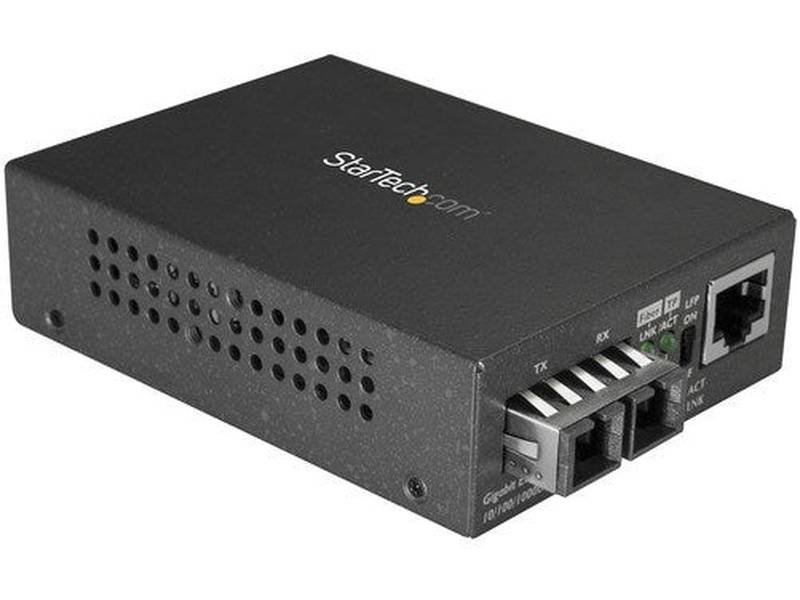

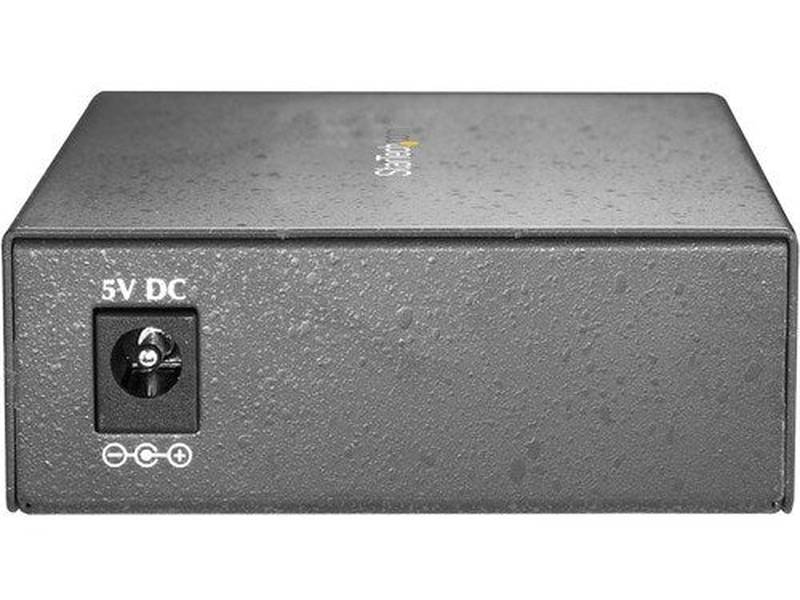

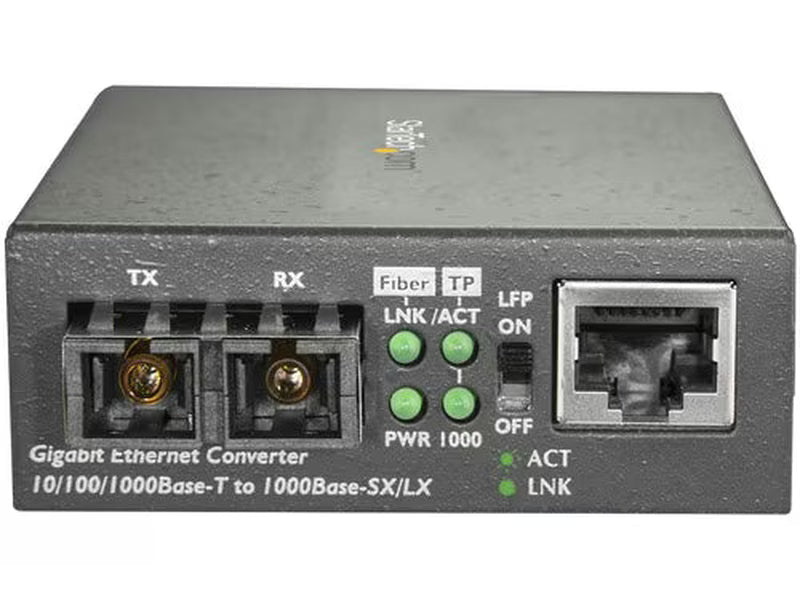

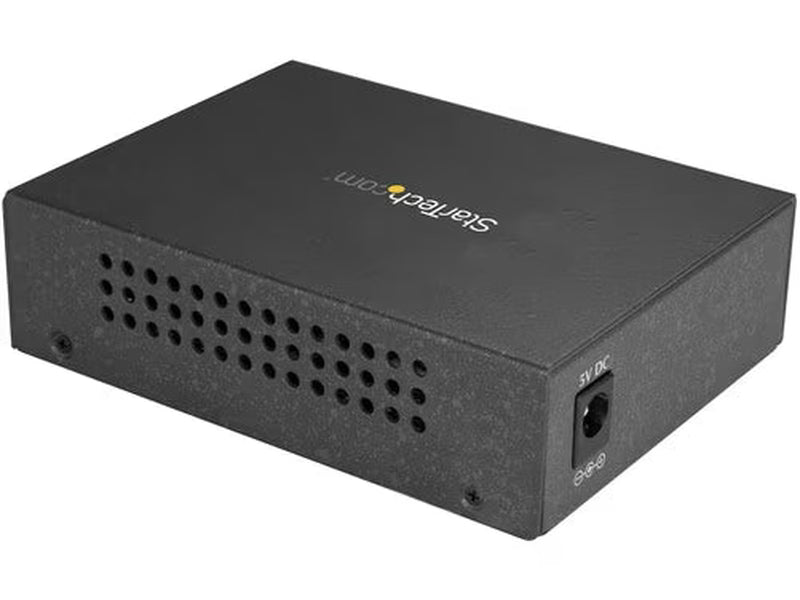

StarTech Gigabit Ethernet to SC Fiber Media Converter

StarTechSKU: MCMGBSCSM10

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$179.00
1

Estimate shipping

Description

StarTech Gigabit Ethernet to SC Fiber Media Converter

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specification

Power Description
Power Source AC Adapter
Power Consumption 10 W
Plug/Connector Type Type N
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of SC Ports 1
Total Number of Ports 2
SC Port Type Duplex
Media & Performance
Maximum Distance Supported 10 km
Media Type Supported Optical Fiber
Twisted Pair
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1310 nm
Network & Communication
Network Technology 1000Base-LX
1000Base-T
100Base-LX
10Base-T
Ethernet Technology Gigabit Ethernet
Physical Characteristics
Weight (Approximate) 195.6 g
Form Factor Wall Mountable
Height 25.4 mm
Width 104.1 mm
Depth 71.1 mm
General Information
Product Type Transceiver/Media Converter
Manufacturer Part Number MCMGBSCSM10
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1 Each
Manufacturer StarTech.com
Product Name Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Brand Name StarTech.com
Miscellaneous
Environmentally Friendly Yes
TAA Compliant Yes
REACH Declaration URL https://media.startech.com/cms/pdfs/mcmgbscsm10_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/mcmgbscsm10_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/mcmgbscsm10_weee.pdf
