StarTech HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)

StarTechSKU: ST121SHD50

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup currently unavailable at PC LAN Store

Price:
Sale price$226.00
1

Description

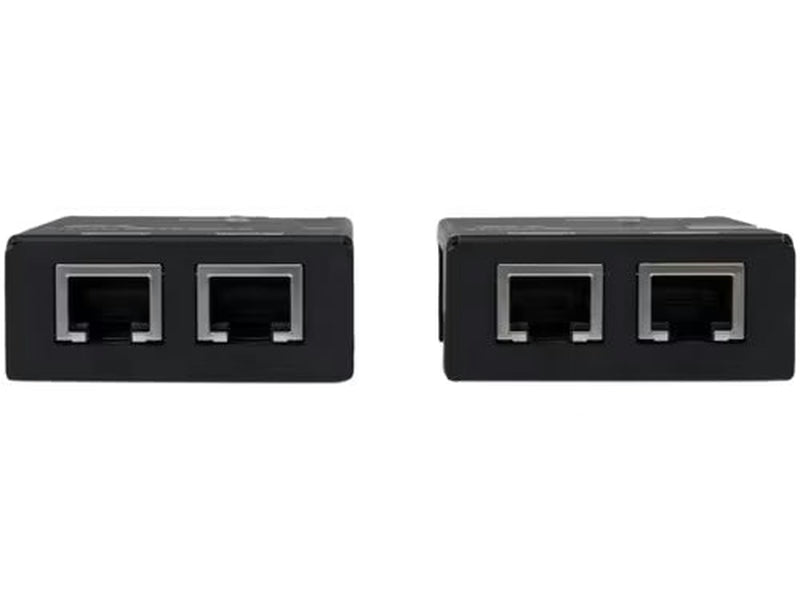

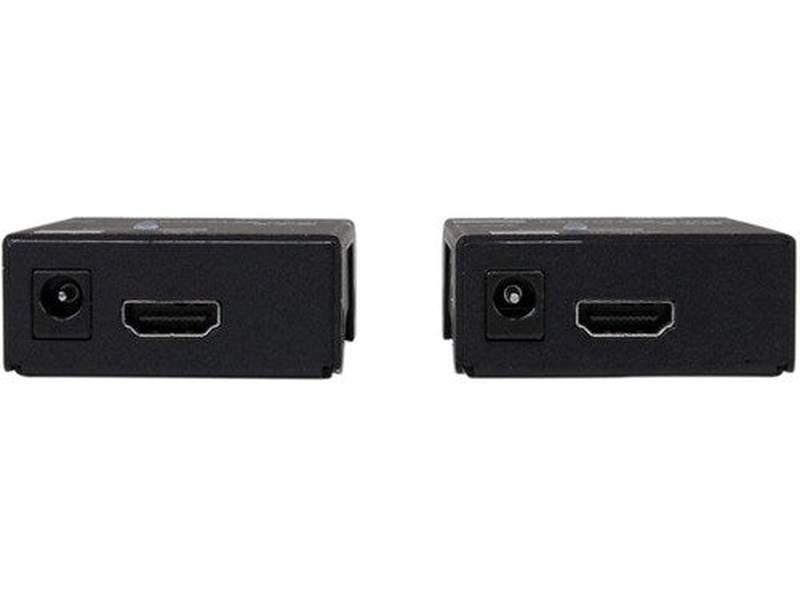

StarTech HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

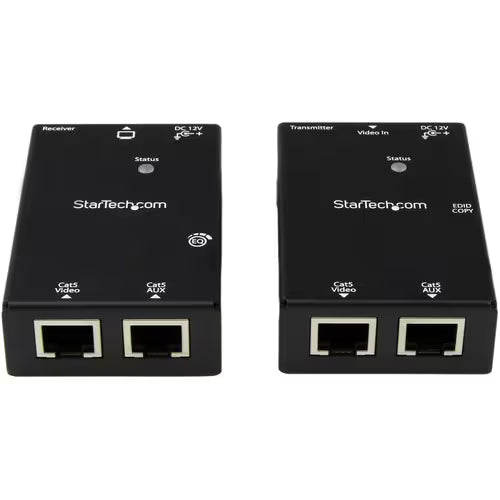

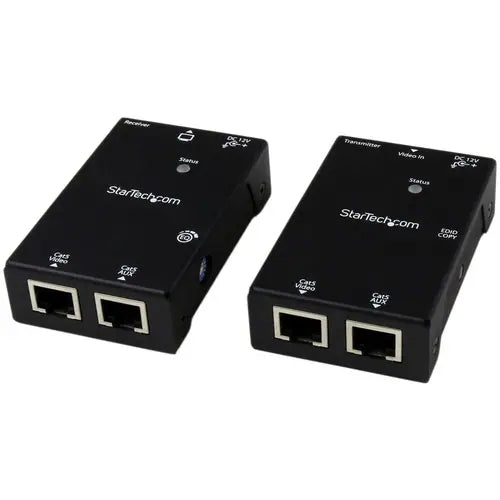

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Specification

Media & Performance
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Video
Graphics Modes Full HD
Maximum Video Resolution 1920 x 1080
Technical Information
Connectivity Technology Wired
Daisy Chain No
Maximum Operating Distance 50 m
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Interfaces/Ports
Number of Network (RJ-45) Ports 4
Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
HDMI In Yes
HDMI Out Yes
Miscellaneous
TAA Compliant Yes
REACH Declaration URL https://media.startech.com/cms/pdfs/st121shd50_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/st121shd50_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/st121shd50_weee.pdf
General Information
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number ST121SHD50
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1 Kit
Manufacturer StarTech.com
Product Name HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)
Brand Name StarTech.com
Physical Characteristics
Form Factor Rack-mountable
Length 78.7 mm
Transmitter Height 20.32 mm
Transmitter Width 50.80 mm
Transmitter Depth 78.74 mm
Receiver Height 20.32 mm
Receiver Width 50.80 mm
Receiver Depth 78.74 mm
Transmitter Weight (Approximate) 314 g
Receiver Weight (Approximate) 314 g
Product Color Black
Color Family Black
Product Material Aluminium
