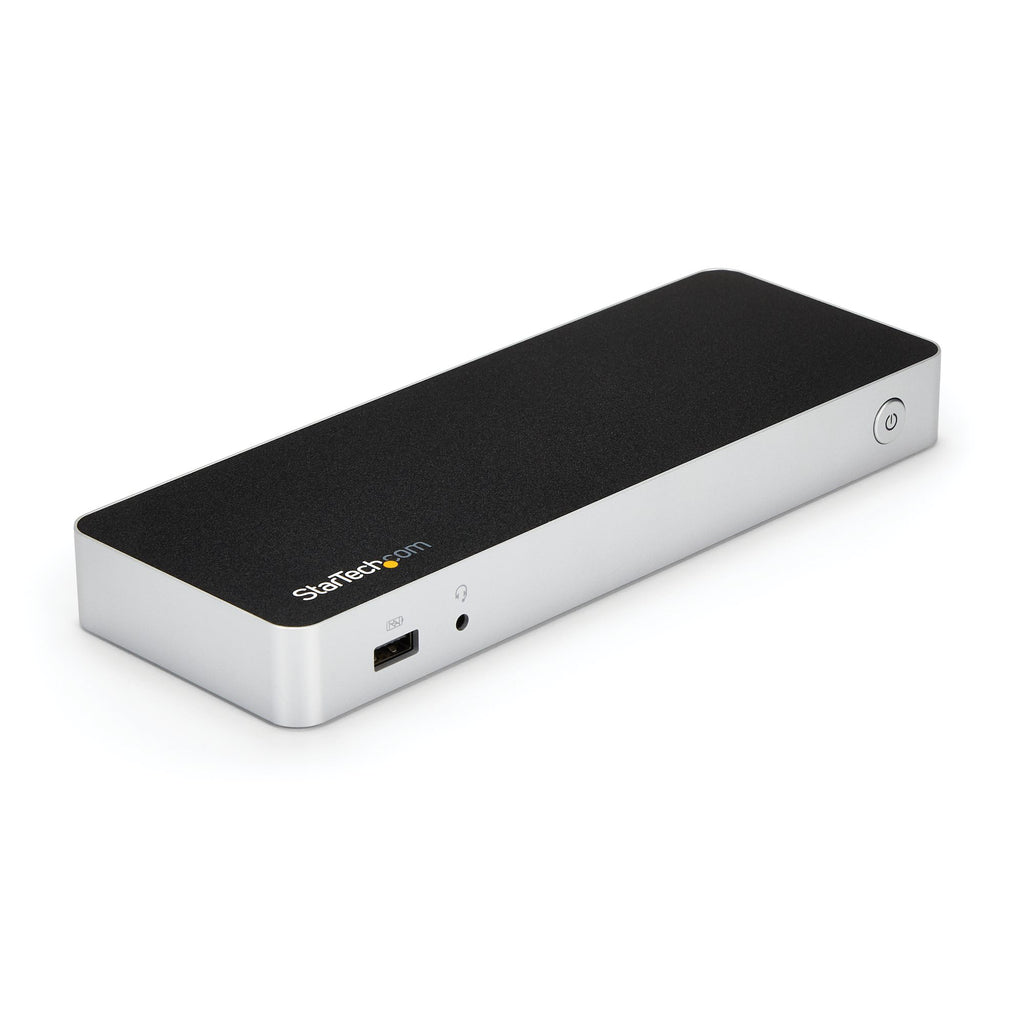

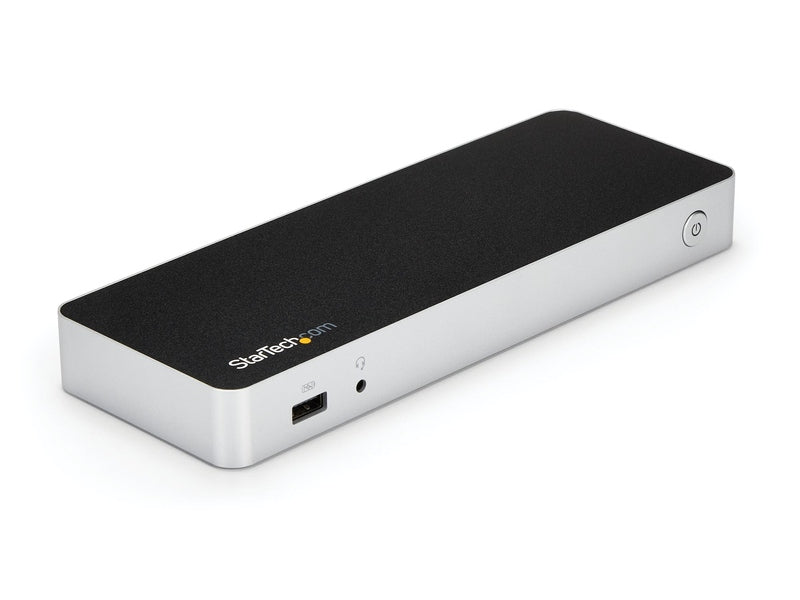

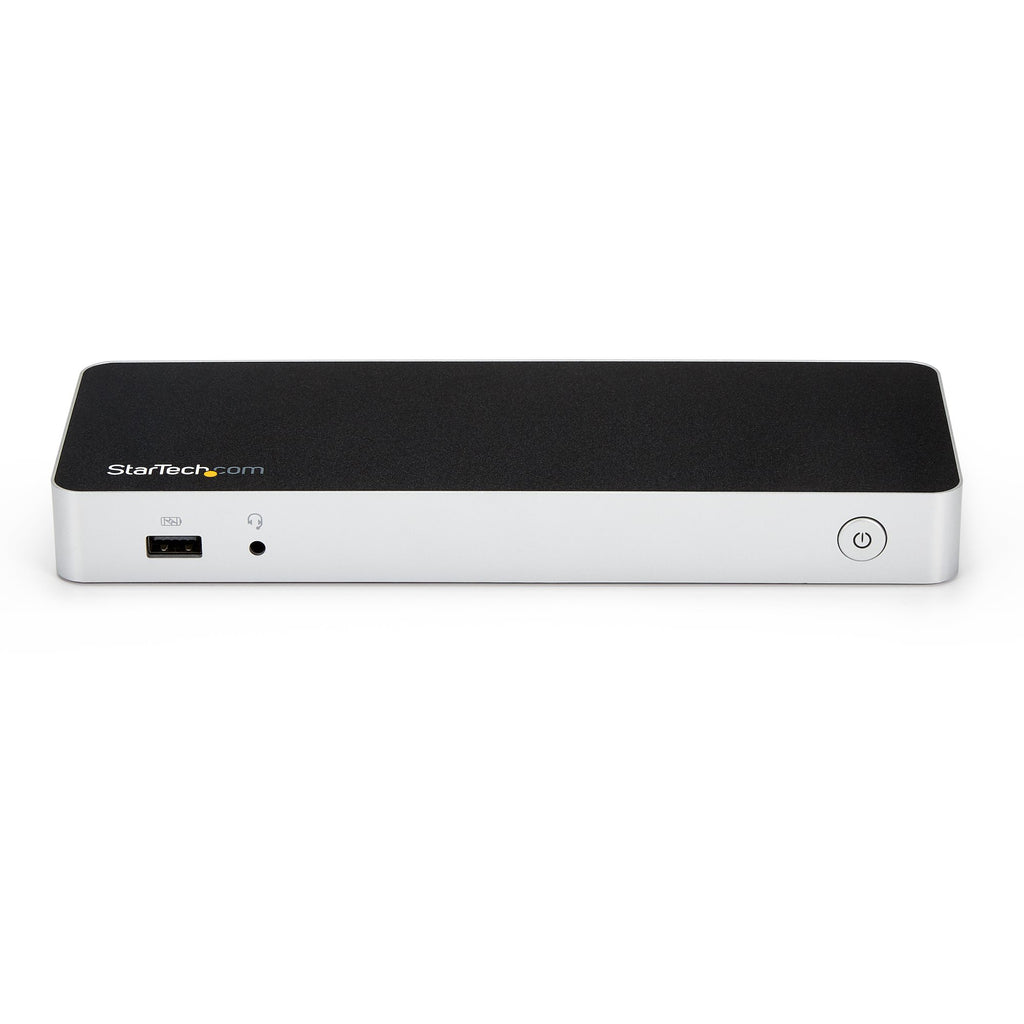

Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI or DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible
Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup
Enhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.
Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
- 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz
- 1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.

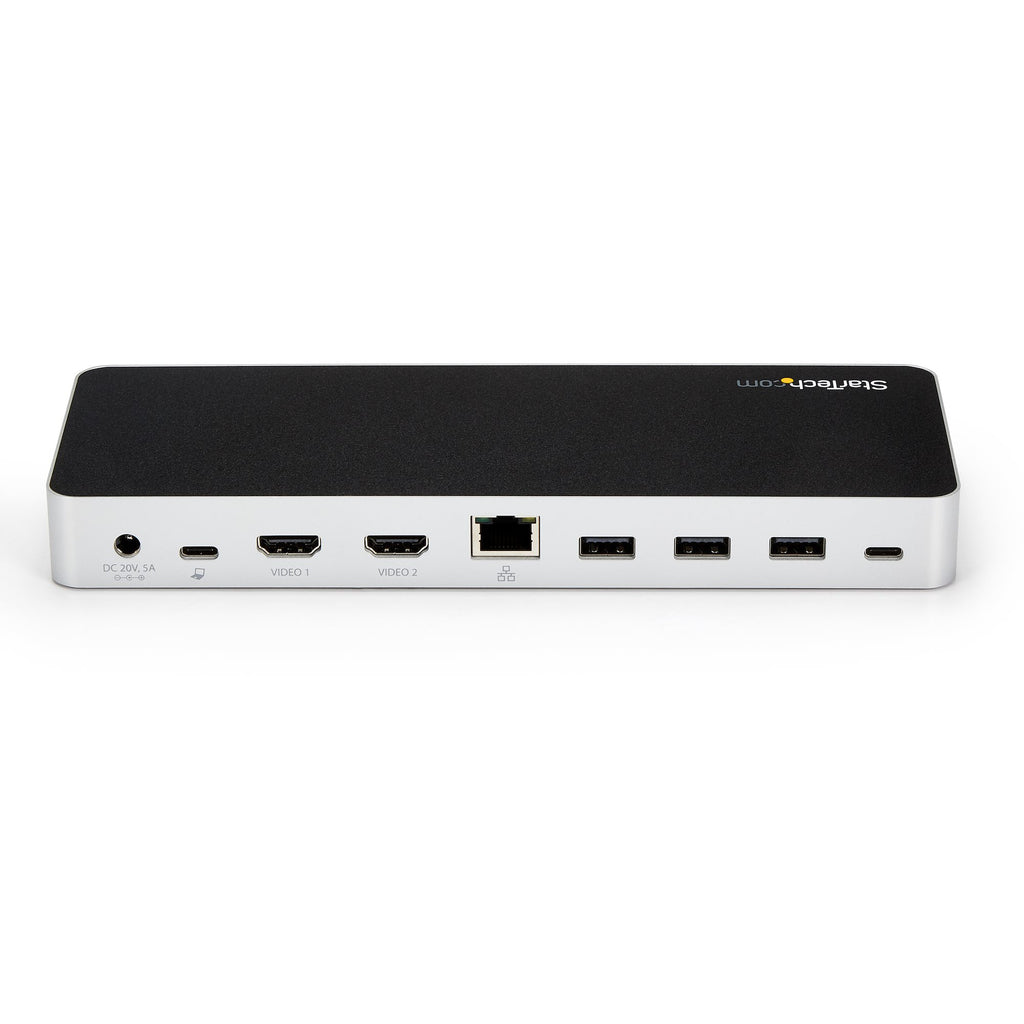

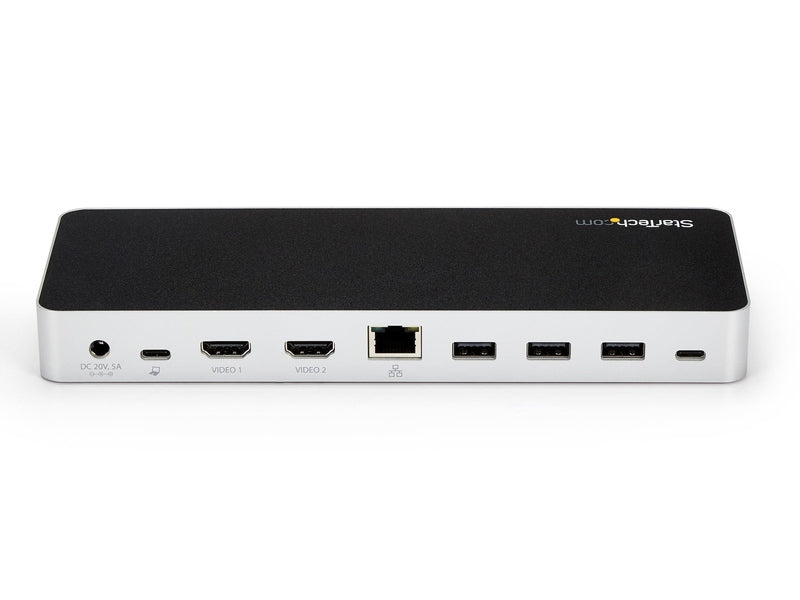

This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.
Fast, Easy Setup
The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Notes:
- Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.
- Video output capabilities depend on the video card and hardware specifications of the connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI or DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible
Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup
Enhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.
Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
- 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz
- 1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.
This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.
Fast, Easy Setup
The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Notes:
- Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.
- Video output capabilities depend on the video card and hardware specifications of the connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
| USB-C Docking Station Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 2 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 2 - HDMI (19 pin) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 3 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5%~95% RH (Non-condensing) |
| Hardware | |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 2 |
| Bus Type | USB-C |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 with MST IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Chipset ID | VIA/VLI - VL813 MegaChips - STDP4320 Realtek - RTL8153 C-Media - CM6533 Texas Instruments - TPS65983 |
| Packaging Information | |
| Shipping (Package) Weight | 3.0 lb [1.4 kg] |
| Package Quantity | 1 |
| Package Length | 6.3 in [16.1 cm] |
| Package Width | 10.7 in [27.2 cm] |
| Package Height | 3.7 in [9.3 cm] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1920 x 1200p @ 60Hz (HDMI/DVI - Dual Monitors) 4096 x 2160p @ 24Hz (HDMI - Single Monitor) 3840 x 2160p @ 30Hz (HDMI - Single Monitor) 1920 x 1200p @ 60Hz (DVI - Single Monitor) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| PXE | Yes |
| Full Duplex Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Product Length | 8.7 in [22.0 cm] |
| Product Width | 3.1 in [8.0 cm] |
| Product Height | 0.9 in [2.4 cm] |
| Weight of Product | 9.1 oz [258.0 g] |
| Power | |
| Power Source | AC Adapter Included |
| Power Delivery | 60W |
| Input Voltage | 100 - 240 AC |
| Input Current | 2 A |
| Output Voltage | 20V DC |
| Output Current | 5 A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Power Consumption (In Watts) | 100 W |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM |
| Special Notes / Requirements | |
| System and Cable Requirements | A Windows-based laptop with an available USB-C port (must support USB Power Delivery 2.0 and DP Alt Mode) |
| Note | Ensure laptop drivers, firmware, and OS are up to date MST support required for dual-monitor configuration 4K-capable HDMI display required for 4K resolution Video output depends on laptop GPU and hardware USB-C port must support DP Alt Mode and Power Delivery USB 3.0 = USB 3.1 Gen 1 (5Gbps) Thunderbolt 3 USB-C ports may vary in functionality Dock provides up to 60W Power Delivery; unplug accessories if charging fails |
| What's in the Box | |
| Included in Package | 1 - docking station 1 - 1m USB-C to USB-C cable 2 - HDMI to DVI adapters 1 - universal power adapter (NA/JP, ANZ) 1 - quick-start guide |
