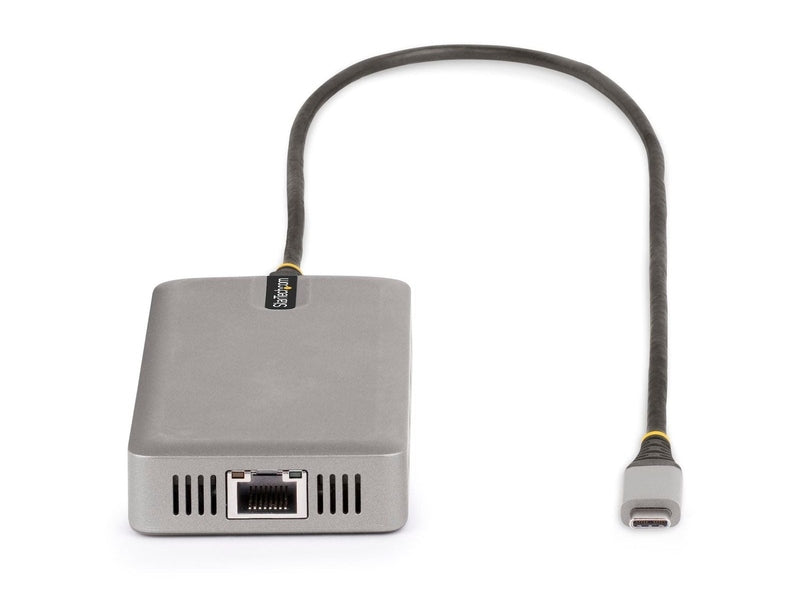

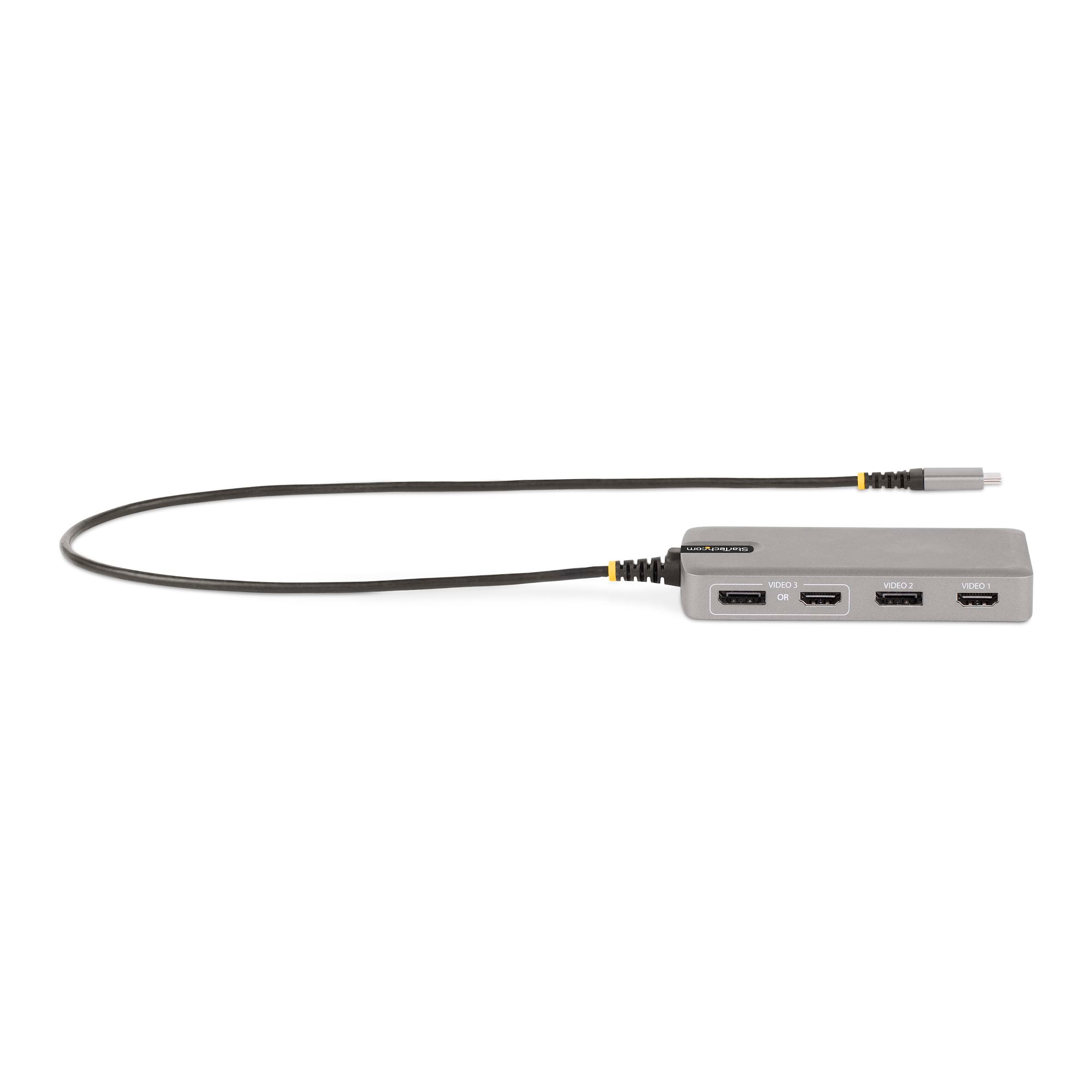

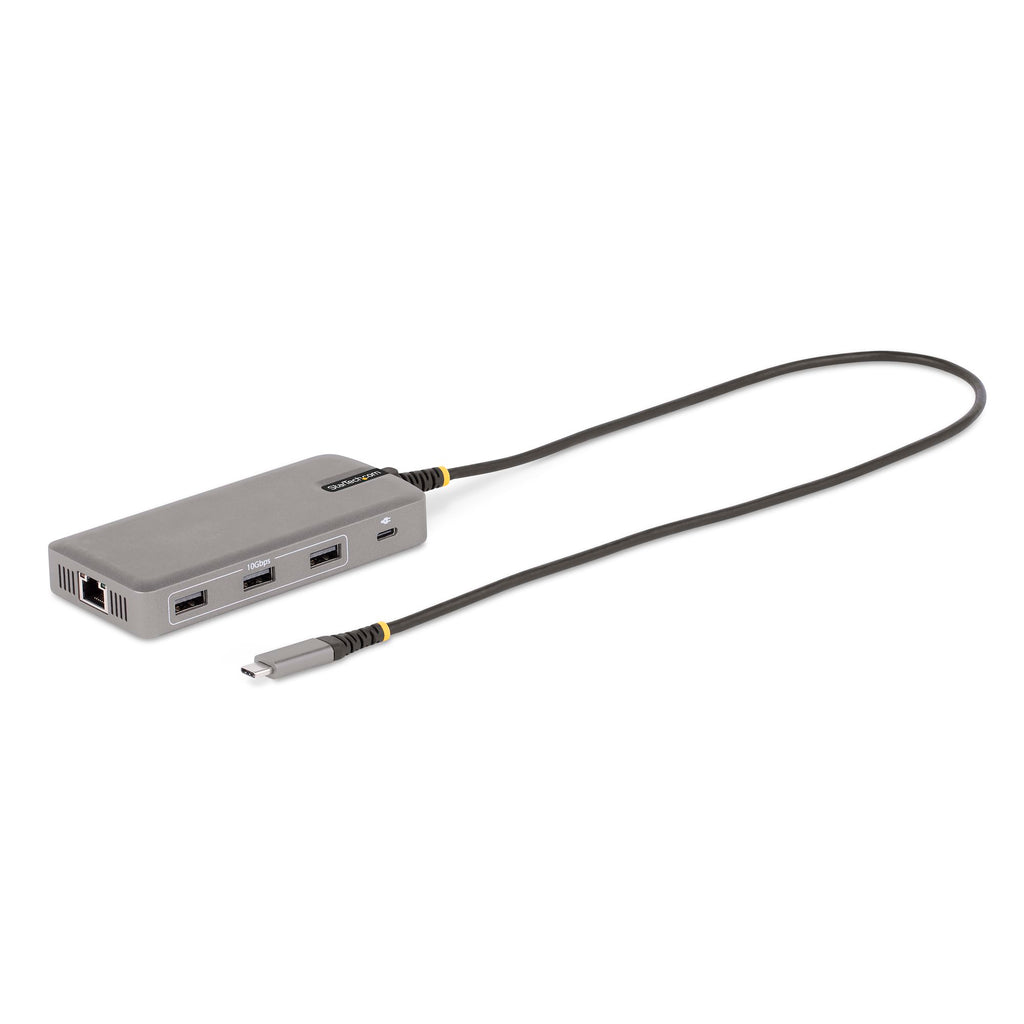

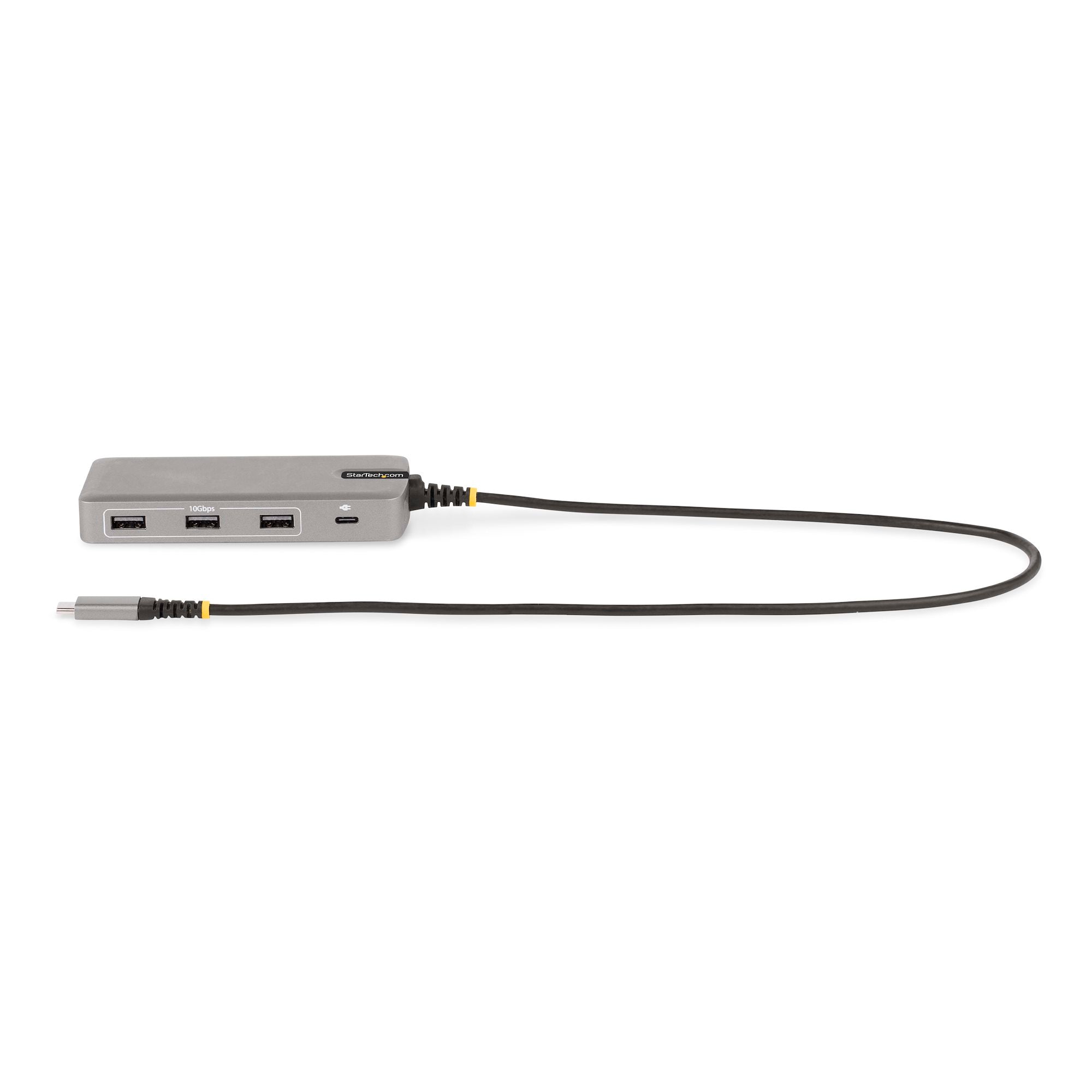

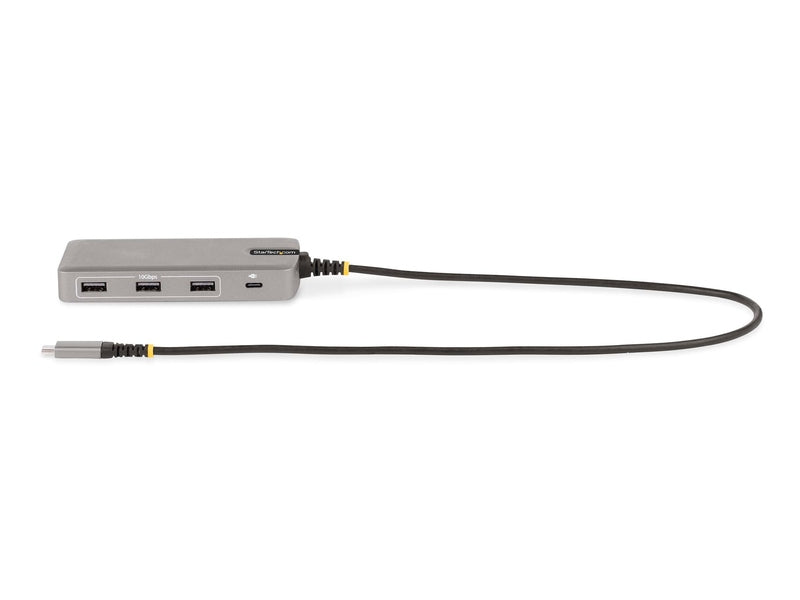

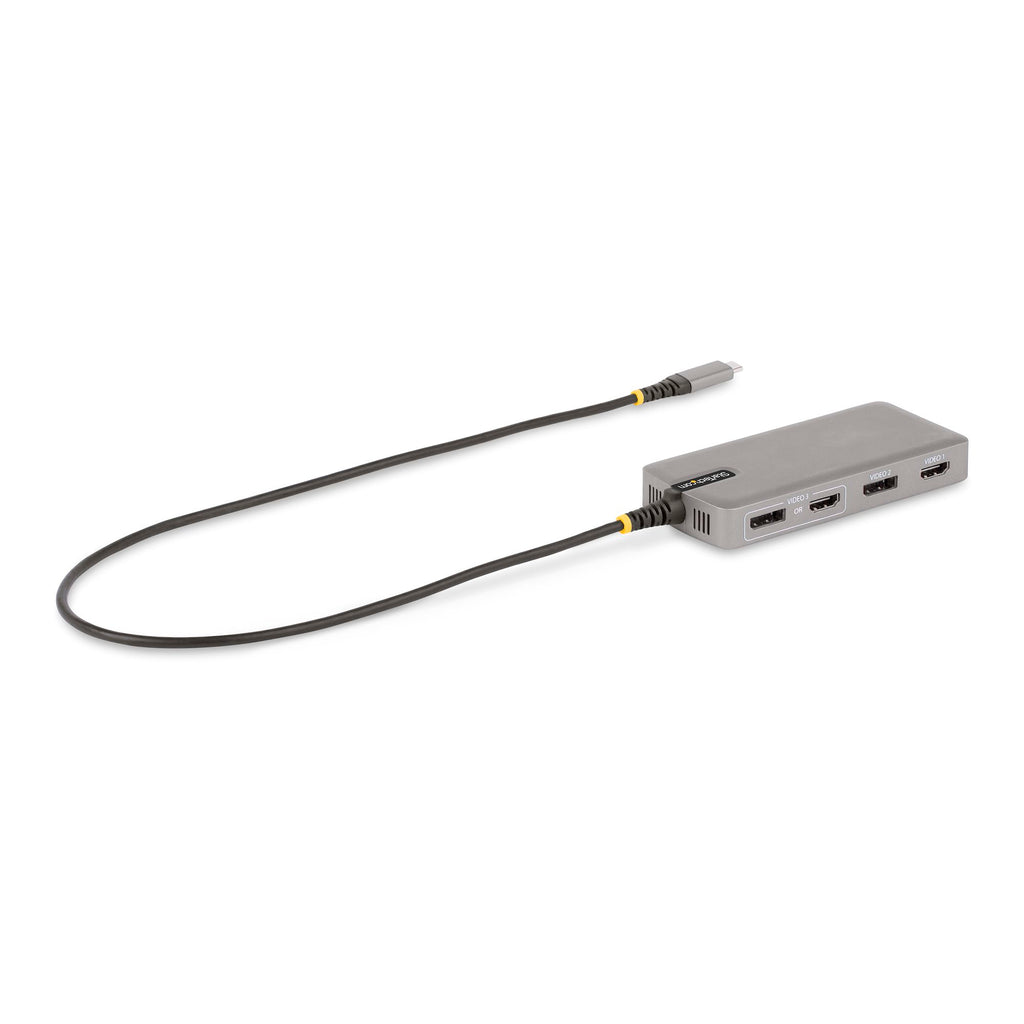

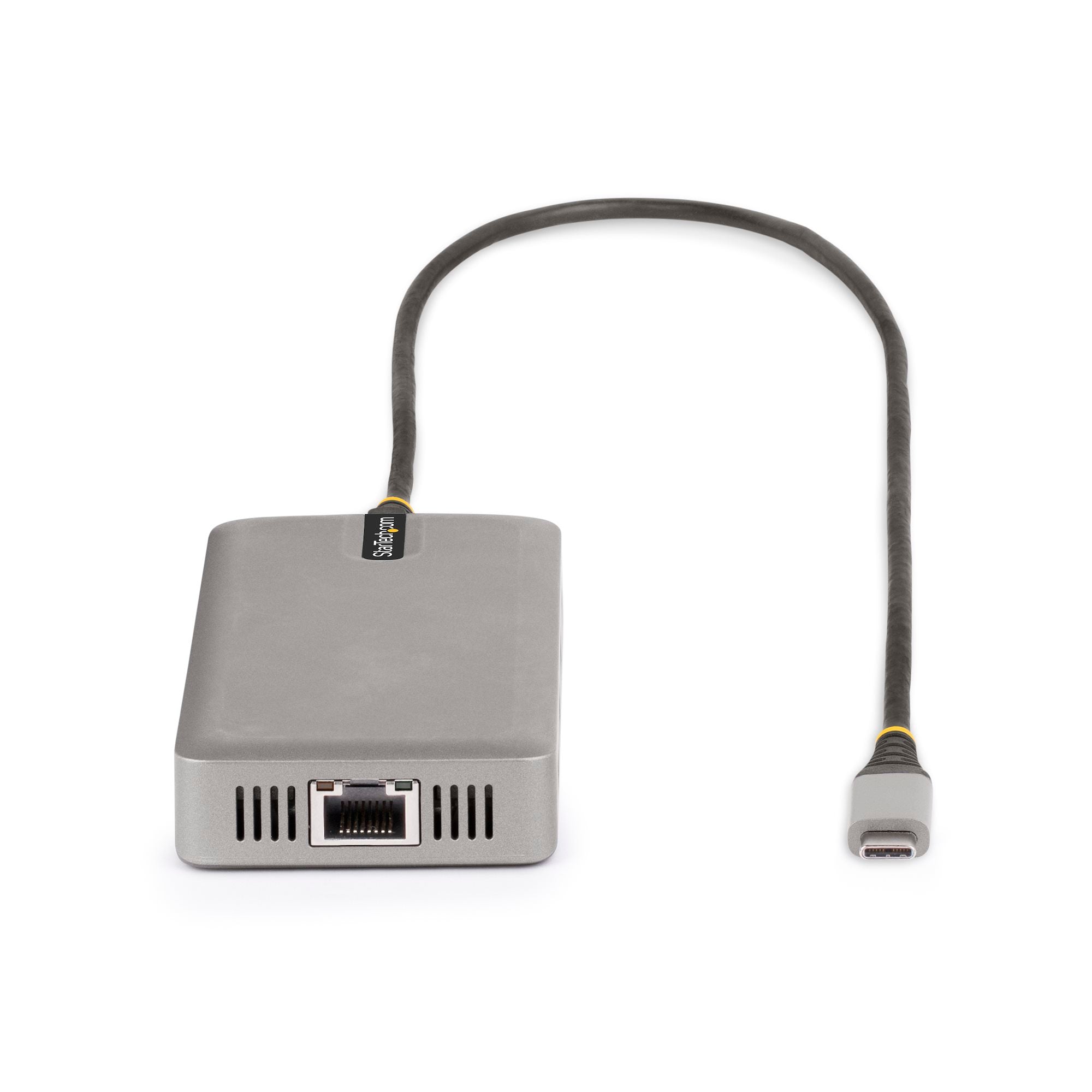

USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS
Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop
This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.
High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.
Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).
Extra Long Cable & Durable Build
The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
100W Power Delivery
Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS
Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop
This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.
High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.
Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).
Extra Long Cable & Durable Build
The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
100W Power Delivery
Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
USB-C Multiport Adapter Specifications | |
---|---|
Connector(s) | |
External Ports | 3 × USB 3.2 Type-A (Gen 2, 10Gbps) 1 × RJ-45 2 × DisplayPort (20 pin) 2 × HDMI (19 pin) 1 × USB Type-C (Power Delivery Only) |
Host Connectors | 1 × USB 3.2 Type-C (Gen 2, 10Gbps) |
Environmental | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity | 5% – 90% RH (Non-condensing) |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | No |
Displays Supported | 3 |
Interface | USB 3.2 Gen 2 – 10 Gbit/s |
Bus Type | USB-C |
Industry Standards | HDMI 2.0b DisplayPort 1.4 USB 3.2 Gen 2 (10Gbps) USB Power Delivery Specification Rev. 3.0 IEEE 802.3 / 802.3u / 802.3ab |
Chipset ID | Parade PS8469 Synaptics VMM5322 VIA VL822 VIA VL103 Realtek RTL8153 |
LED Indicators | 2 × Connection state/activity LEDs under GbE port |
Packaging Information | |
Package Length | 5.2 in [13.2 cm] |
Package Width | 9.6 in [24.5 cm] |
Package Height | 1.3 in [3.4 cm] |
Shipping Weight | 8.4 oz [238.0 g] |
Performance | |
Wake On LAN | Yes |
Maximum Data Transfer Rate | USB 3.2 Gen 2 – 10 Gbit/s |
Maximum Digital Resolutions |
Triple Display: 3840×2160 @ 60Hz 3840×2160 @ 60Hz 3840×2160 @ 30Hz Dual Display: 3840×2160 @ 60Hz 3840×2160 @ 60Hz |
GPU Capabilities | Discrete GPU recommended for dual/triple display Must support DP 1.4 Alt-Mode with DSC Verify GPU display limits; some integrated GPUs may disable laptop screen when using three external monitors |
Type and Rate | USB 3.2 Gen 2 – 10 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
PXE | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Gray |
Material | Plastic |
Cable Length | 23.6 in [60 cm] |
Product Length | 4.8 in [12.2 cm] |
Product Width | 2.2 in [5.6 cm] |
Product Height | 0.7 in [1.8 cm] |
Product Weight | 4.0 oz [113.0 g] |
Power | |
Power Source | Bus Powered and Host USB-C Power Adapter |
Power Consumption | 15W |
Software | |
OS Compatibility | Windows 8.1, 10, 11, 11 ARM Chrome OS 78.x |
Special Notes / Requirements | |
System and Cable Requirements | Windows or ChromeOS device with USB-C port supporting Power Delivery, DP Alt Mode, and MST |
Note | Ensure drivers, firmware, and OS are up to date before use |
What's in the Box | |
Included Items | 1 × USB-C Multiport Adapter 1 × Quick-Start Guide |
