Description
Overview
USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.2 Gen 1 - Mac/Windows
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
- 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
- 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

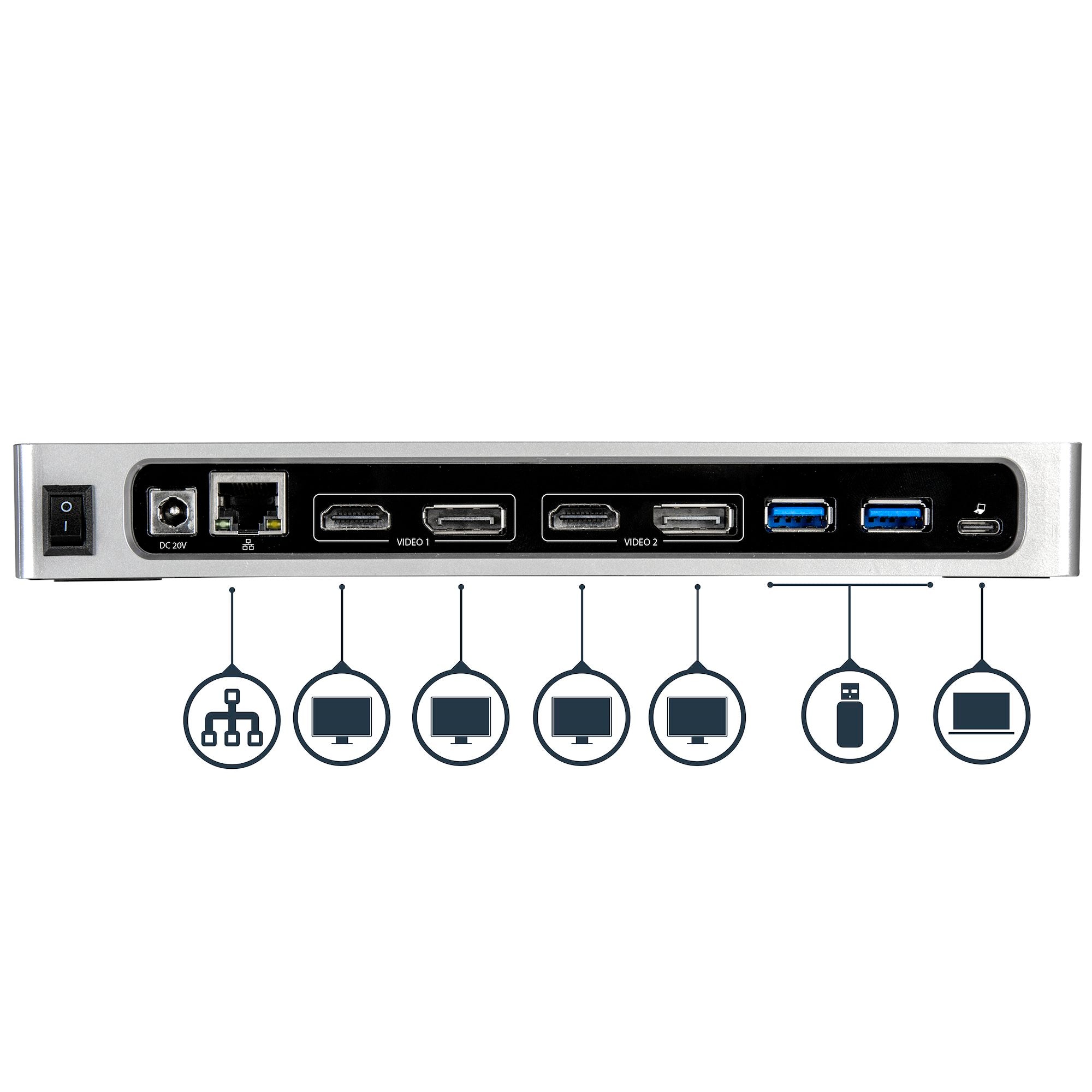

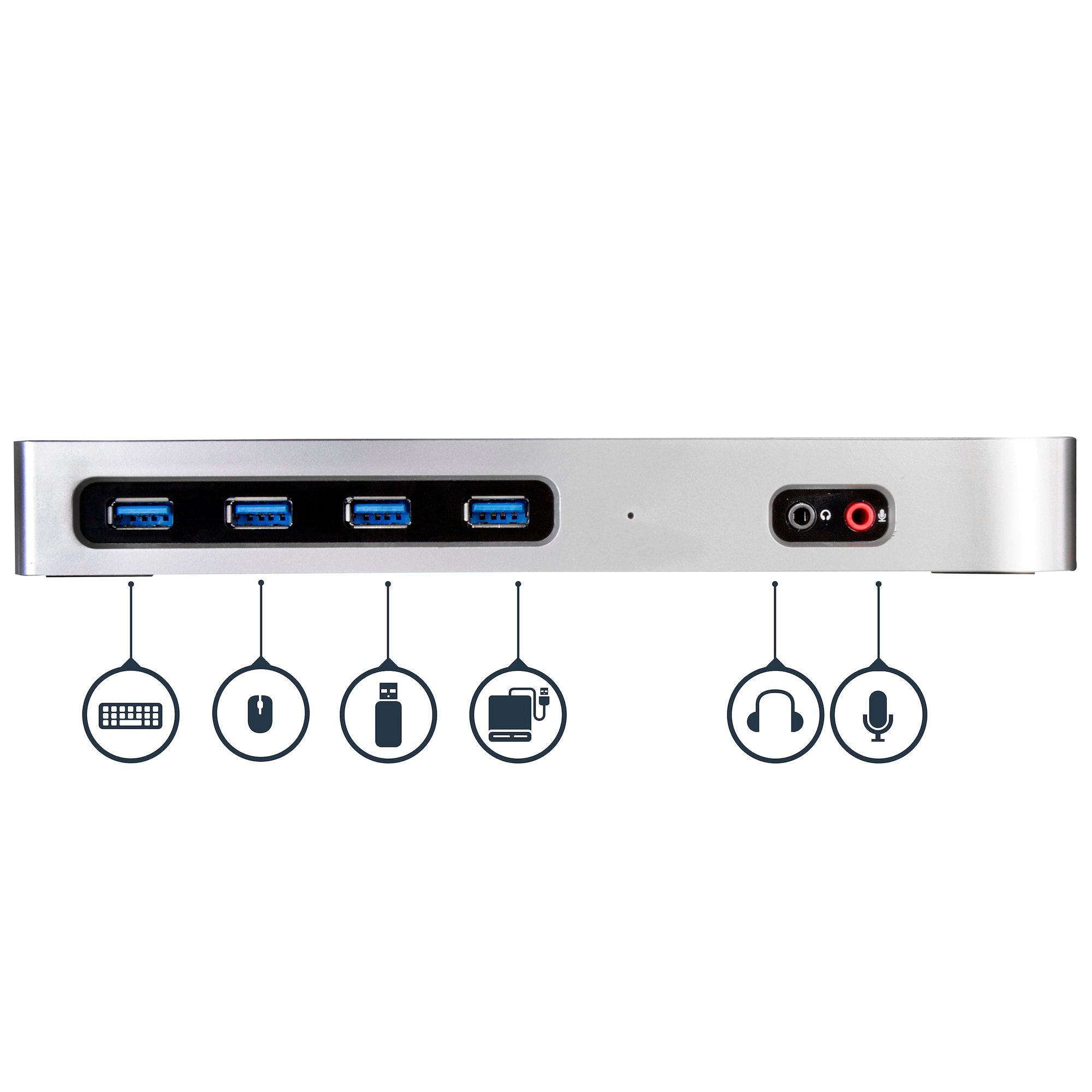

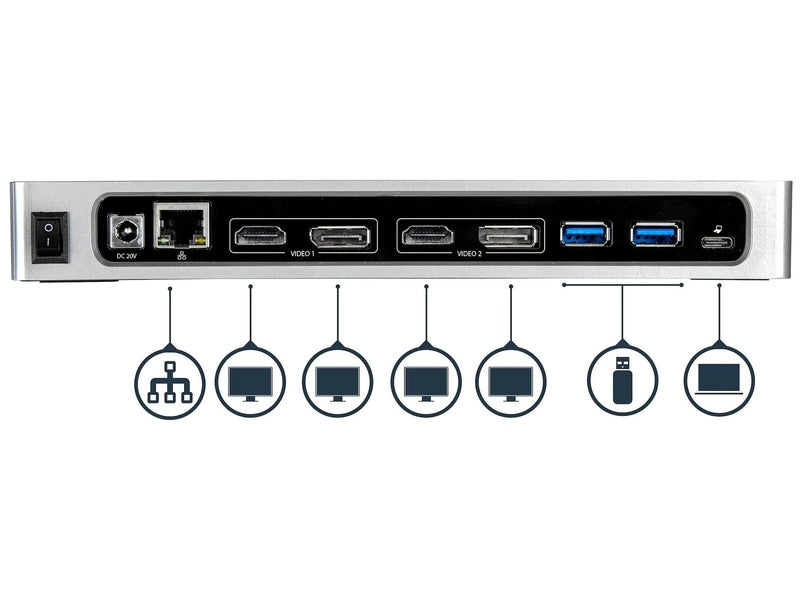

All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.2 Gen 1 - Mac/Windows
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
- 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
- 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
Docking Station Specifications | |
---|---|
Connector(s) | |
Connector Type(s) | 2 - DisplayPort (20 pin) 2 - HDMI (19 pin) 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - RJ-45 6 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 1 - 3.5 mm Mini-Jack (3 Position) 1 - 3.5 mm Mini-Jack (4 Position) |
Environmental | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity | 10~90% RH |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | No |
Displays Supported | 2 |
Bus Type | USB-C, USB 3.2 Gen 1 (5Gbps) |
Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
Chipset ID | DisplayLink - DL-6950 VIA/VLI - VL817 |
LED Indicators | 1 - Power |
Packaging Information | |
Shipping (Package) Weight | 1.7 lb [0.8 kg] |
Package Quantity | 1 |
Package Length | 5.6 in [14.3 cm] |
Package Width | 12.4 in [31.5 cm] |
Package Height | 2.5 in [6.4 cm] |
Performance | |
Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions |
Single Display - DisplayPort: 5120 x 2880 @ 60Hz (using two DP ports) 4096 x 2160 @ 60Hz 3840 x 2160 @ 60Hz Single Display - HDMI: 4096 x 2160 @ 60Hz 3840 x 2160 @ 60Hz Dual Displays - DisplayPort and HDMI: 4096 x 2160 @ 60Hz 3840 x 2160 @ 60Hz |
Type and Rate | USB 3.0 - 5 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
Auto MDIX | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Black & Silver |
Material | Aluminum and Plastic |
Cable Length | 3.3 ft [1 m] |
Product Length | 8.9 in [22.6 cm] |
Product Width | 3.4 in [8.7 cm] |
Product Height | 1.1 in [2.8 cm] |
Weight of Product | 10.6 oz [301.0 g] |
Power | |
Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC |
Input Current | 2A |
Output Voltage | 20V DC |
Output Current | 2A |
Center Tip Polarity | Positive |
Plug Type | N |
Power Consumption (In Watts) | 40W |
Software | |
OS Compatibility | Windows®️ XP (32-bit), Vista, 7, 8, 8.1, 10, 11 macOS 10.6 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0, 14.0, 15.0 Ubuntu 18.04, 20.04 Chrome OS™️ v55+ |
Special Notes / Requirements | |
System and Cable Requirements | A host laptop with an available USB-C port or a USB-A port. |
Note | USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. A USB-C to USB-C cable and a USB-C to USB-A cable are included. 4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolution. DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. |
What's in the Box | |
Included in Package | 1 - docking station 1 - 1 m USB-C to USB-A cable 1 - 1 m USB-C to USB-C cable 1 - universal power adapter (NA/JP, UK, EU, ANZ) 1 - quick-start guide |
