Description
Overview

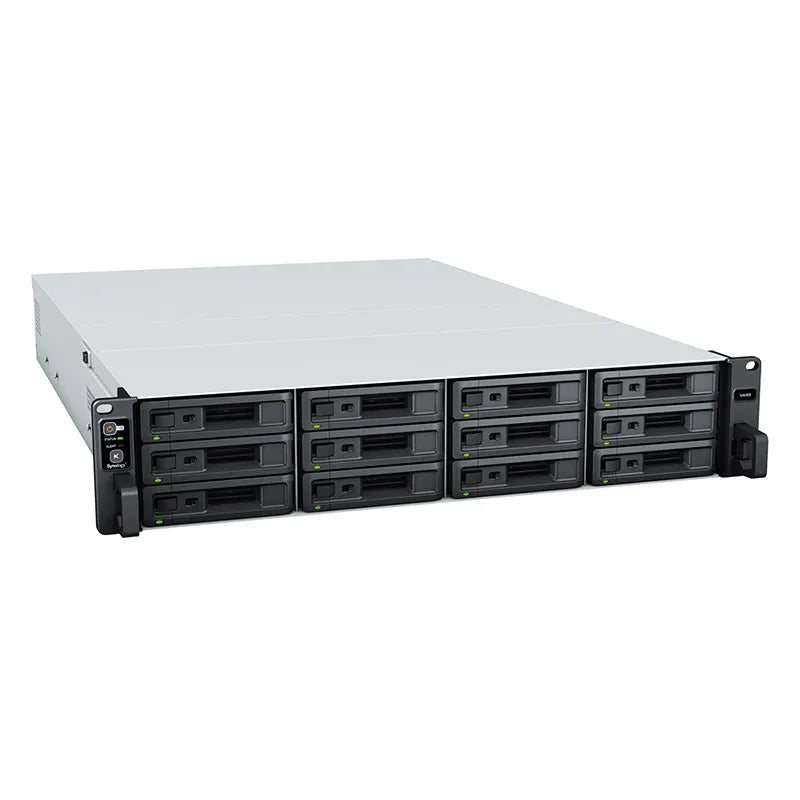

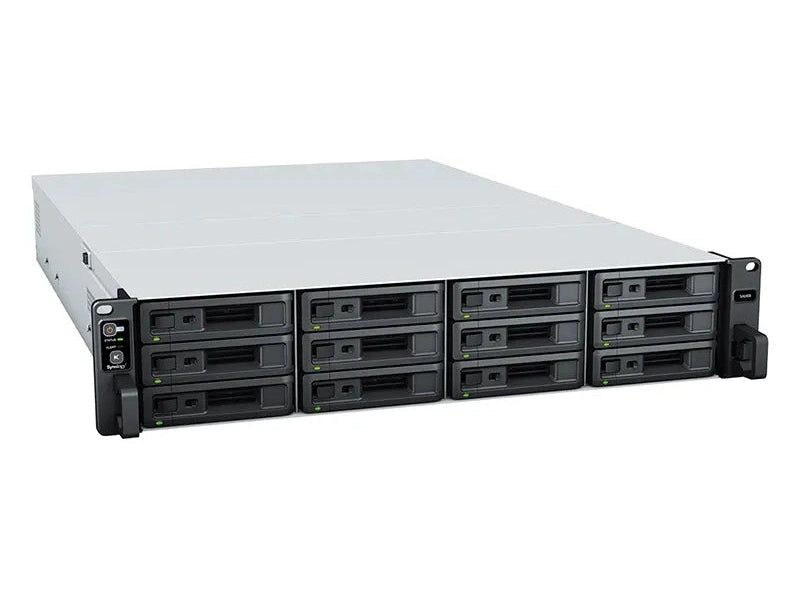

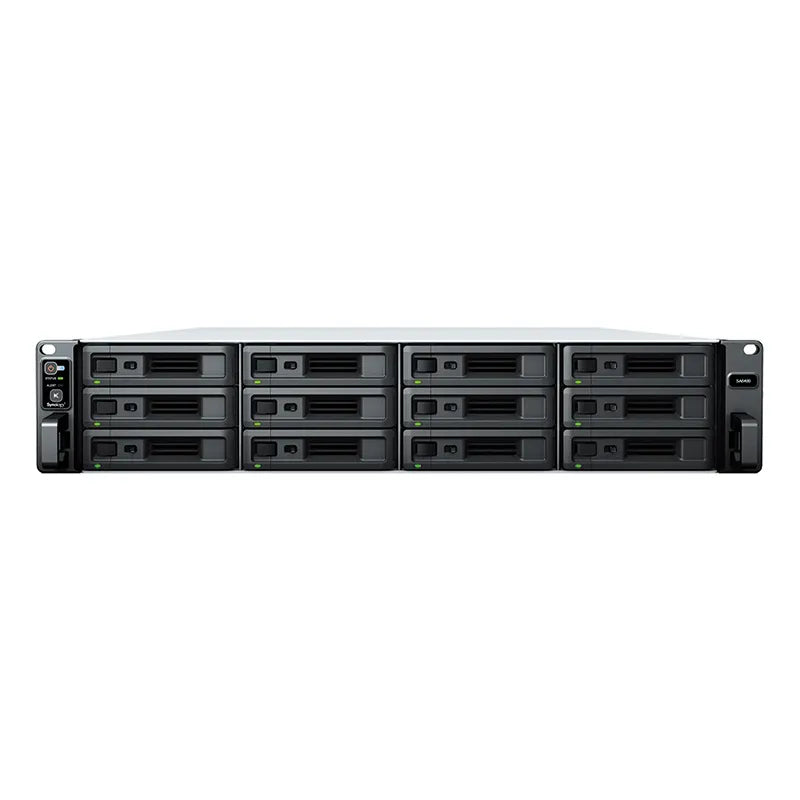

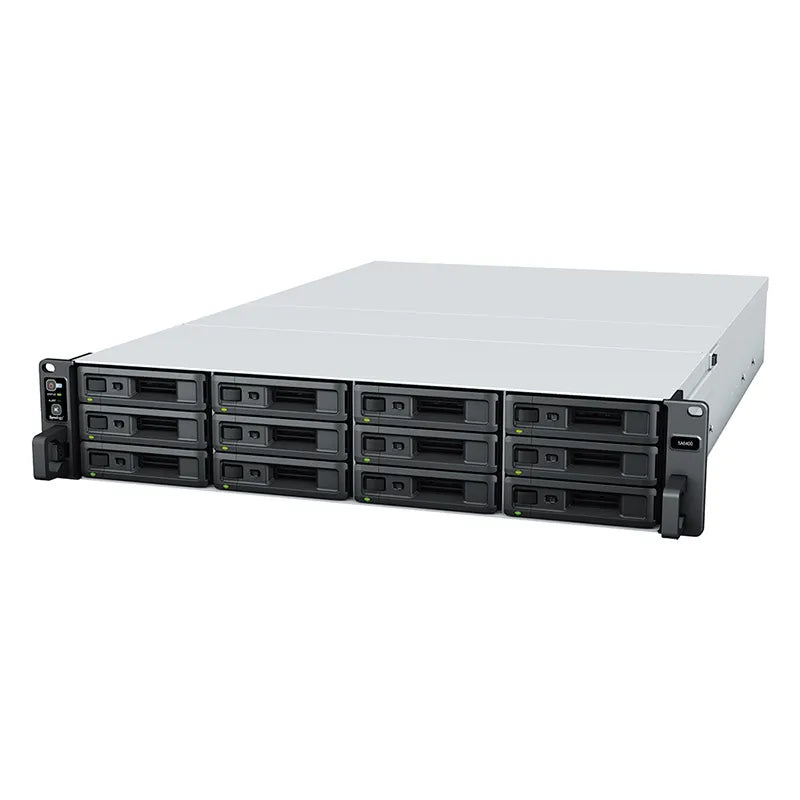

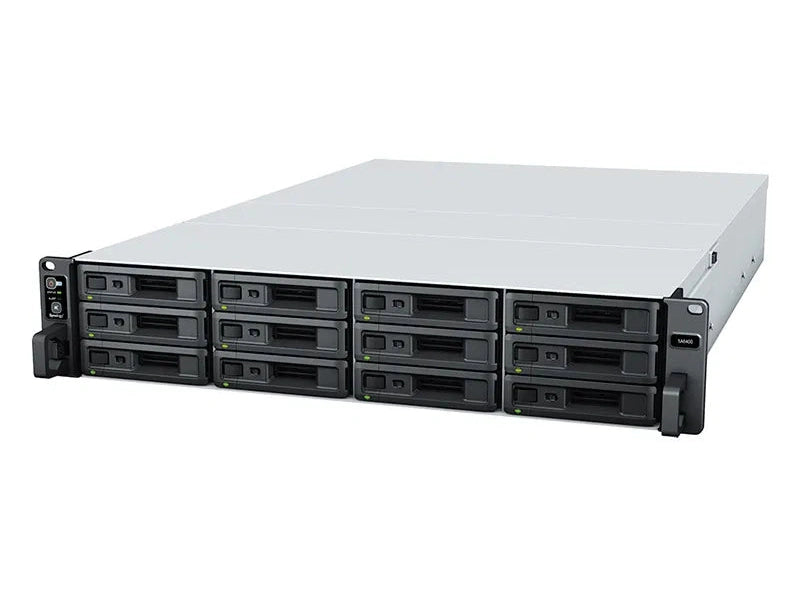

SA6400
Handle growing data storage demands with ease
Highly scalable storage for enterprise and studios
The SA6400 can accommodate up to 1.9 PB with support for eight 12-bay RX1223RP expansion units. Direct connections from host to expansion units ensure optimal performance.
Scalability
Up to 2.1 PB with 8 x RX1223RP expansion units
CPU
Over 6,500/4,000 MB/s sequential read/write
Networking
Optional 25/40GbE or Fibre Channel connectivity
Scalability with great performance
The SA6400 scales up flexibly whenever your data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.4
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage and business application platform
Provide easy access to business data, consolidate digital assets, or host cost-efficient business solutions.
Flexible file server
Take advantage of the SA6400’s high storage capacity and expansion capability to host large amounts of data on a central repository. Provide user-friendly access to business data and set up powerful cross-site syncing to empower remote and multi-site collaboration.
Private cloud
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
SMB/NFS implementation at scale
Leverage SMB or NFS protocols to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) through Active Directory/LDAP integration and protect files against tampering, loss, or removal with built-in snapshot technology.
Cross-site syncing
Secure site-to site file and folder syncing
Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Efficient cross-site syncing through the cloud
Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.5 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.
Central backup server
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.
Enterprise backup storage
Scalable storage to store growing backup demands
Safeguard your backups by storing backup copies in the SA6400 via ActiveProtect Vault without needing to drastically change your existing backup infrastructure.
Long-term backup storage for regulatory compliance
Store your backups with a secure and scalable storage solution that allows you to ensure compliance via long-term data retention.
Back up Synology storage systems
Backup destination for shares and LUNs
Use Hyper Backup to back up files, LUNs, installed applications, and system configurations from tens or hundreds of Synology servers to your SA6400. Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, reduce backup sizes with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.
Bare-metal backup for Synology systems
Manage bare-metal backups of all your Synology servers from a single centralized console on the SA6400. Leverage built-in deduplication technology to reduce backup sizes while multi-versioning provides flexible restoration options.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Synology productivity solutions
Collaboration in a secure cloud
Create and edit documents, spreadsheets, and slides together with your whole team in real time. Easily migrate existing documents from other platforms and take ownership of your files in a secure private cloud.
Synology’s private cloud mail solution provides ease of use, full data ownership, and robust data security with a low total cost of ownership thanks to its subscription-free licensing model.
Keep teams connected through encrypted one-on-one private chats, public channels, and group conversations. Efficiently organize discussions with bookmarks, searchable hashtags, and chatbots.
Containerization and virtualization-ready
Application test environment
Run Docker containers and VMs on SA6400 using Docker and Synology Virtual Machine Manager (VMM)6 — a hypervisor for virtualized versions of Windows®, Linux®, and DSM — to safely test and evaluate applications.
Virtual DSM serves as a test environment for package updates or to add an additional layer of security between applications, systems, and data.
Centralized monitoring and management
Stay on top of your fleet and keep it in optimal condition with our cloud and DSM-based monitoring and management solutions.
Central Management System (CMS)
Conveniently manage your fleet of Synology systems from a centralized console.
Active Insight
A powerful cloud-based platform for monitoring performance, backup status, login activity and performing lightweight management tasks.
SA6400
Handle growing data storage demands with ease
Highly scalable storage for enterprise and studios
The SA6400 can accommodate up to 1.9 PB with support for eight 12-bay RX1223RP expansion units. Direct connections from host to expansion units ensure optimal performance.
Scalability
Up to 2.1 PB with 8 x RX1223RP expansion units
CPU
Over 6,500/4,000 MB/s sequential read/write
Networking
Optional 25/40GbE or Fibre Channel connectivity
Scalability with great performance
The SA6400 scales up flexibly whenever your data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.4
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage and business application platform
Provide easy access to business data, consolidate digital assets, or host cost-efficient business solutions.
Flexible file server
Take advantage of the SA6400’s high storage capacity and expansion capability to host large amounts of data on a central repository. Provide user-friendly access to business data and set up powerful cross-site syncing to empower remote and multi-site collaboration.
Private cloud
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
SMB/NFS implementation at scale
Leverage SMB or NFS protocols to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) through Active Directory/LDAP integration and protect files against tampering, loss, or removal with built-in snapshot technology.
Cross-site syncing
Secure site-to site file and folder syncing
Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Efficient cross-site syncing through the cloud
Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.5 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.
Central backup server
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.
Enterprise backup storage
Scalable storage to store growing backup demands
Safeguard your backups by storing backup copies in the SA6400 via ActiveProtect Vault without needing to drastically change your existing backup infrastructure.
Long-term backup storage for regulatory compliance
Store your backups with a secure and scalable storage solution that allows you to ensure compliance via long-term data retention.
Back up Synology storage systems
Backup destination for shares and LUNs
Use Hyper Backup to back up files, LUNs, installed applications, and system configurations from tens or hundreds of Synology servers to your SA6400. Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, reduce backup sizes with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.
Bare-metal backup for Synology systems
Manage bare-metal backups of all your Synology servers from a single centralized console on the SA6400. Leverage built-in deduplication technology to reduce backup sizes while multi-versioning provides flexible restoration options.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Synology productivity solutions
Collaboration in a secure cloud
Create and edit documents, spreadsheets, and slides together with your whole team in real time. Easily migrate existing documents from other platforms and take ownership of your files in a secure private cloud.
Synology’s private cloud mail solution provides ease of use, full data ownership, and robust data security with a low total cost of ownership thanks to its subscription-free licensing model.
Keep teams connected through encrypted one-on-one private chats, public channels, and group conversations. Efficiently organize discussions with bookmarks, searchable hashtags, and chatbots.
Containerization and virtualization-ready
Application test environment
Run Docker containers and VMs on SA6400 using Docker and Synology Virtual Machine Manager (VMM)6 — a hypervisor for virtualized versions of Windows®, Linux®, and DSM — to safely test and evaluate applications.
Virtual DSM serves as a test environment for package updates or to add an additional layer of security between applications, systems, and data.
Centralized monitoring and management
Stay on top of your fleet and keep it in optimal condition with our cloud and DSM-based monitoring and management solutions.
Central Management System (CMS)
Conveniently manage your fleet of Synology systems from a centralized console.
Active Insight
A powerful cloud-based platform for monitoring performance, backup status, login activity and performing lightweight management tasks.
| Model | SA6400 |
| CPU | Intel Xeon Silver 4210R, 10-core 2.4 GHz (Turbo up to 3.2 GHz) |
| Memory | 64 GB DDR4 ECC RDIMM (expandable up to 512 GB) |
| Drive Bays | 12 × 3.5"/2.5" SATA HDD/SSD (expandable to 108 bays with 8× RX1223RP) |
| Max Raw Capacity | Up to 1.728 PB |

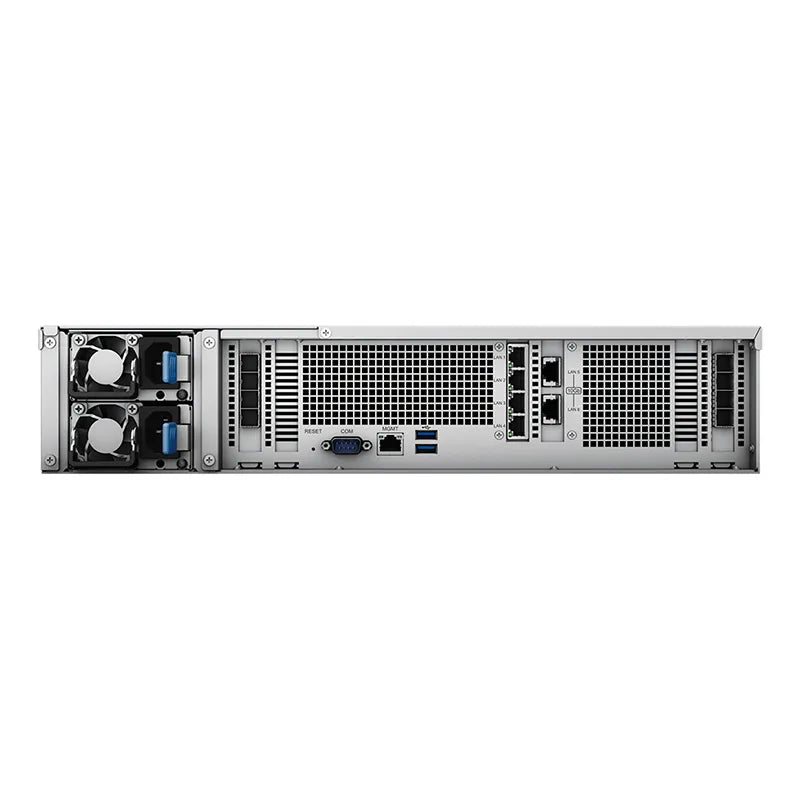

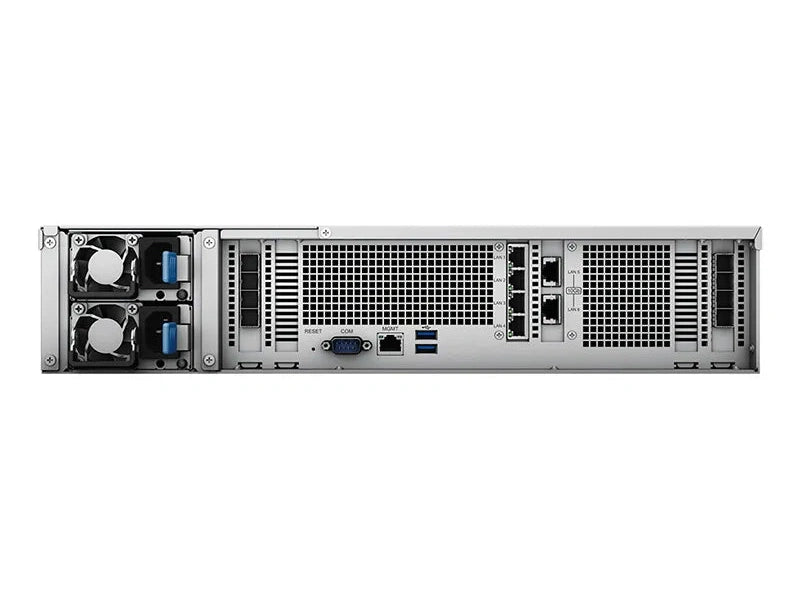

| Network Ports | 2 × 10GbE RJ-45 (built-in), 4 × 1GbE RJ-45 |
| PCIe Expansion | 2 × PCIe Gen 3 x8 slots |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Ports | 2 × Mini-SAS HD (for RX1223RP) |
| RAID Support | RAID 0, 1, 5, 6, 10, F1, JBOD |
| File System | Btrfs, EXT4 |
| Operating System | Synology DiskStation Manager (DSM) |
| Performance | Up to 6,500 MB/s sequential read, 3,100 MB/s write |
| Virtualization | VMware, Citrix, Microsoft Hyper-V, OpenStack |
| High Availability | Supports Synology High Availability (active-passive clustering) |
| Management | Out-of-band (OOB) management port |
| Dimensions (H × W × D) | 88 × 430.5 × 692 mm (2U rackmount) |
| Weight | 13.8 kg (without drives) |
| Power Supply | 2 × 800W redundant PSU |
| Operating Temperature | 5°C to 35°C |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA |
| Warranty | 5 years |
