AC500

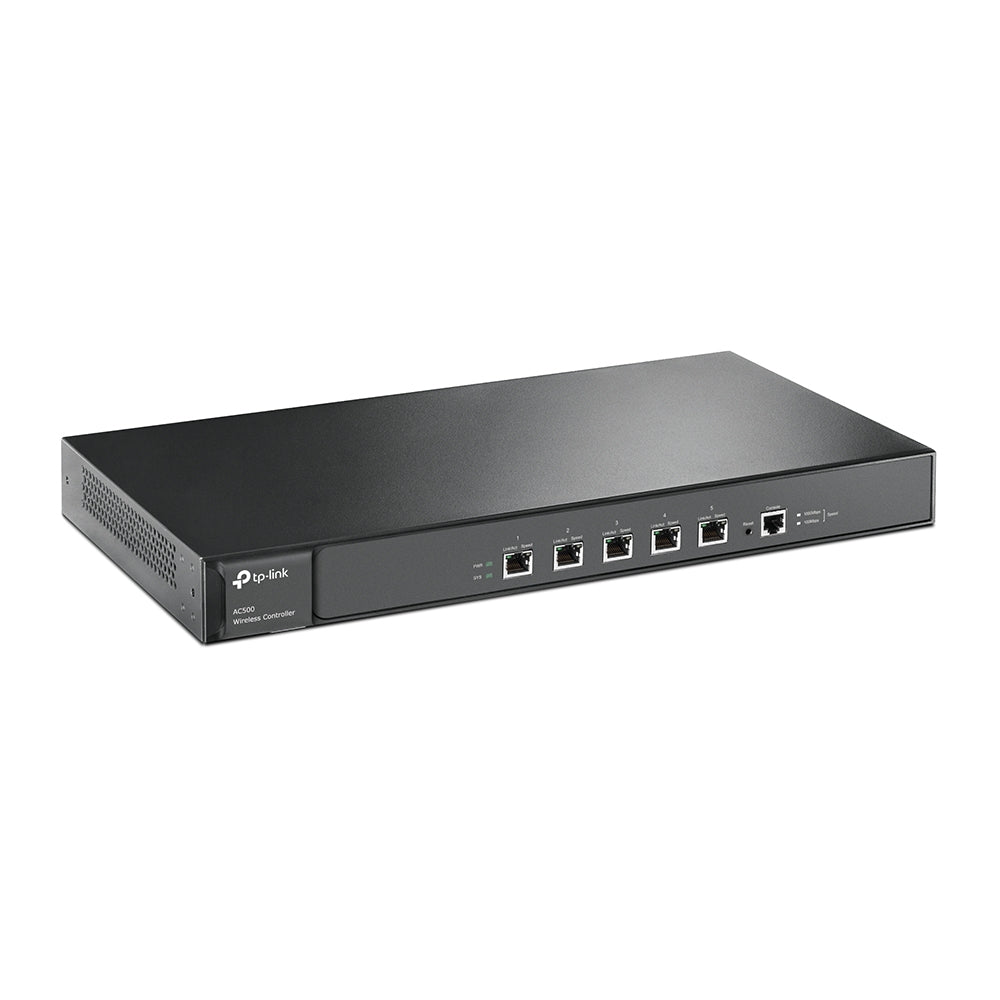

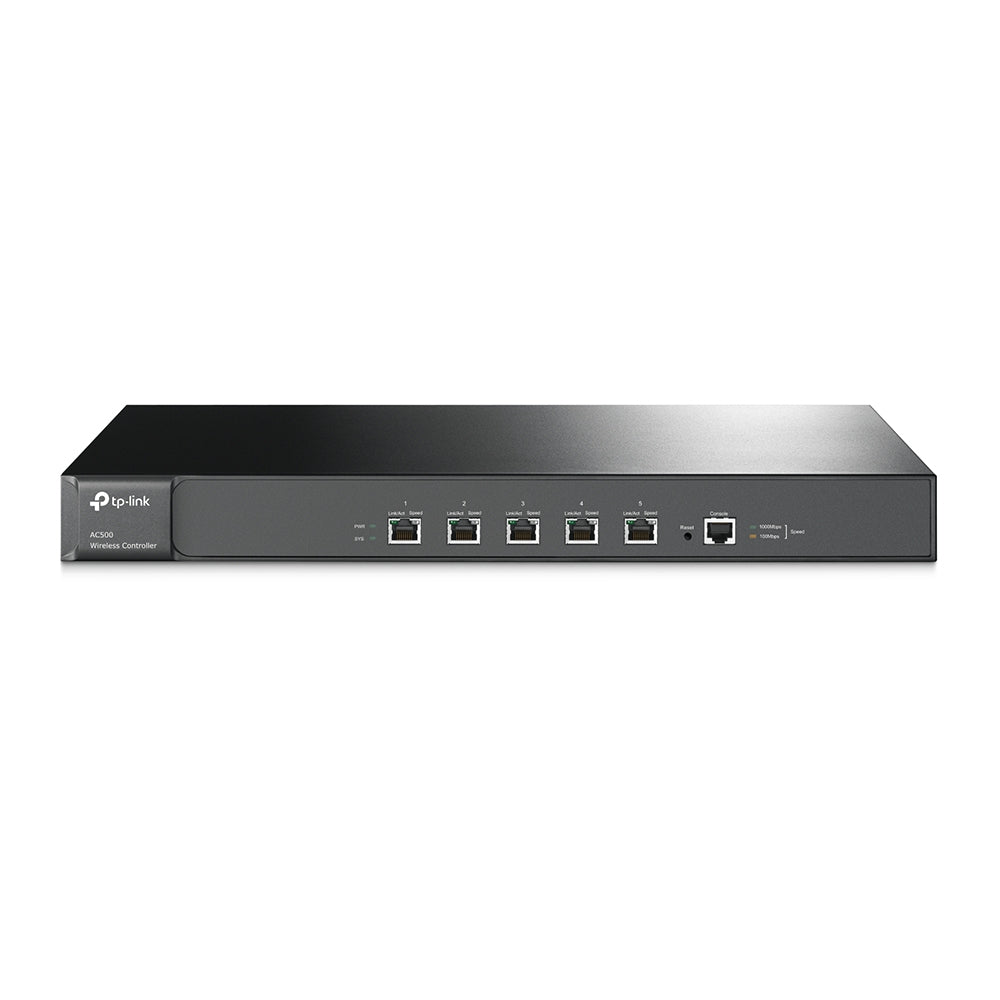

AC500 Wireless Controller
- Auto-detect and centralized management, up to 500 CAPs
- License-free management reduces the OPEX of enterprise network
- Easy deployment without changing the existing network topology
- Unified configuration of wireless networks, support mapping of SSID and VLAN
- Support MAC authentication, portal authentication
- Dual-link back up for management safety
AC500
AC500 Wireless Controller
- Auto-detect and centralized management, up to 500 CAPs
- License-free management reduces the OPEX of enterprise network
- Easy deployment without changing the existing network topology
- Unified configuration of wireless networks, support mapping of SSID and VLAN
- Support MAC authentication, portal authentication
- Dual-link back up for management safety
TP-Link AC500 Specifications | |
---|---|
Hardware Features | |
Processor | 1GHz Dual-core MIPS64 network dedicated processors |
Memory | 256MB DDR3 ×2, 32MB Flash |
Interfaces | (5) Gigabit Ethernet Ports, (1) Console Port |
Installation | Rack-mount |
Power Supply | 100–240V AC, 50/60Hz |
LED Indicators | Port: Link/Act, 1000M/100M; Device: PWR, SYS |
Dimensions (W × D × H) | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
Wireless & Management Features | |
Management Scale | Up to 500 APs |
Wireless Function | L3 Management Multi-SSID Load Balance Band Steering DHCP Server WMM Communication Protocol |
Wireless Security | SSID to VLAN Mapping AP Isolation SSID Isolation Encryption |
AP Management | AP Automatic Discovery AP Unified Configuration AP Reboot Schedule AP Batch Firmware Upgrade Grouped AP Management AP LED ON/OFF |
System Management | Web-Based Management Configuration Backup/Import Ping/Tracert Tool System Log |
Authentication | Captive Portal Authentication MAC Authentication |
System Status | AP Status Client Status Authenticated User Status |
Other Information | |
Certification | CE, FCC, RoHS |
Package Content | AC500, Power Cord, Quick Installation Guide |
System Requirements | Microsoft® Windows® 10, 8, 7, Vista™, XP macOS®, NetWare®, UNIX®, Linux |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | −40°C to 70°C (−40°F to 158°F) |
Operating Humidity | 10% to 90% non-condensing |
Storage Humidity | 5% to 90% non-condensing |
Warranty | Limited 5-Year Warranty Warranty Policy |
