Overview

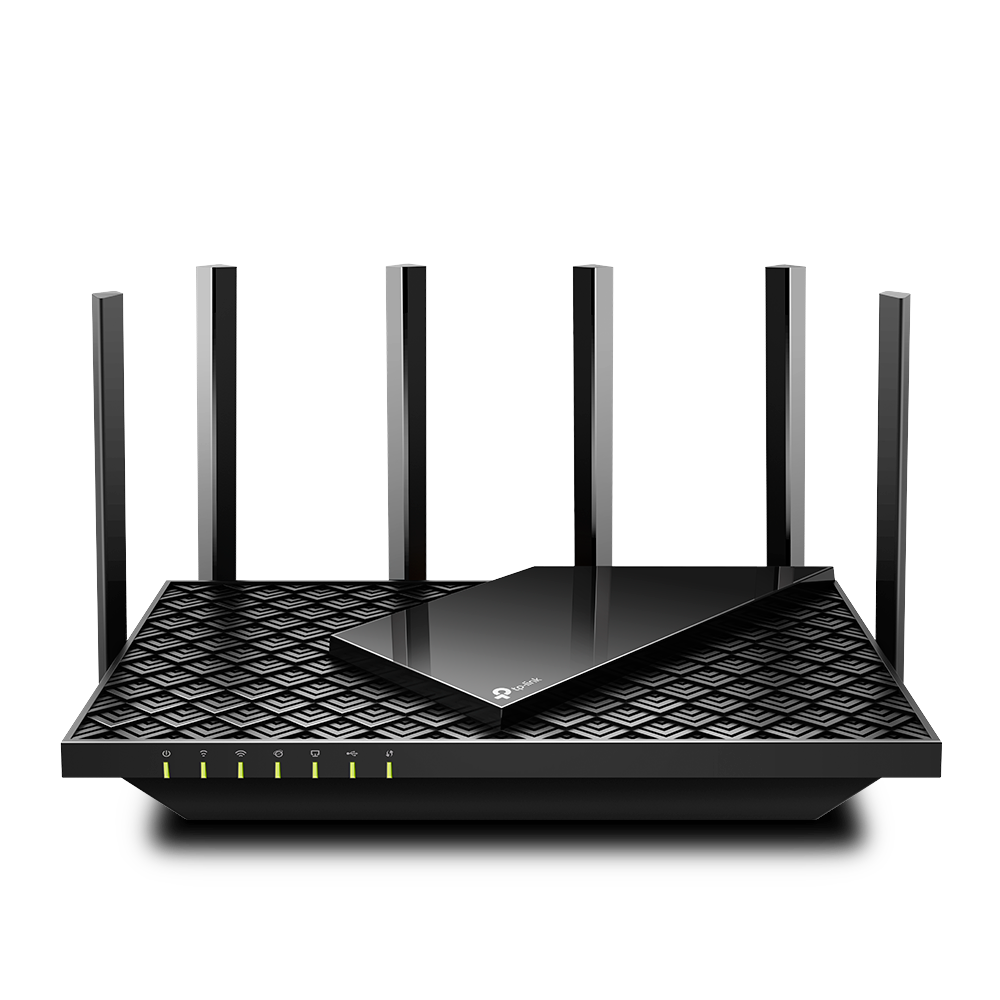

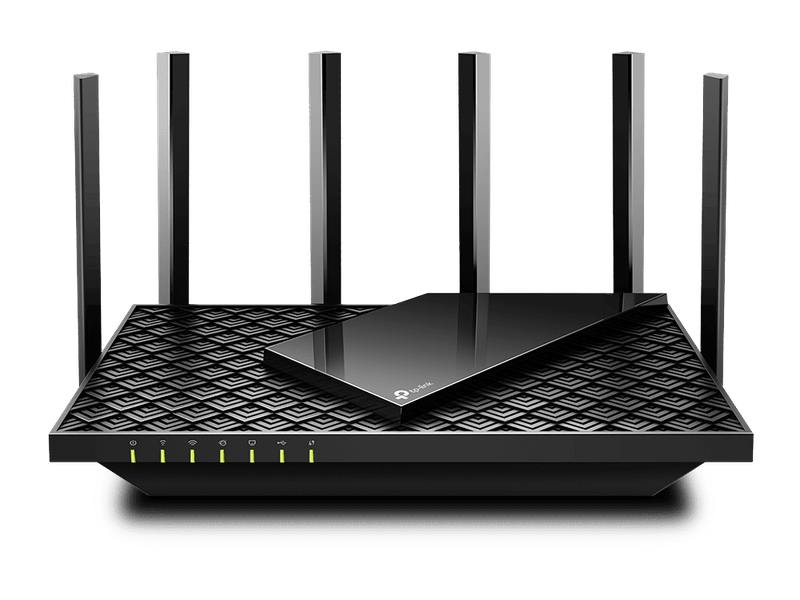

Archer AX72
AX5400 Dual-Band Gigabit Wi-Fi 6 Router
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleash the full power of the whole machine.
- Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, 1024-QAM, or HE160 require clients to also support the corresponding features.160 MHz bandwidth may be unavailable on the 5 GHz band in some regions/countries due to regulatory restrictions.
§Archer AX72 can connect 64 devices on the 5 GHz band, and 48 devices on the 2.4 GHz band. Performance may vary depending on the applications and environmental factors.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
**Use of MU-MIMO requires clients to also support the corresponding feature.
***This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.
****Further software upgrades for feature availability may be required.
Archer AX72
AX5400 Dual-Band Gigabit Wi-Fi 6 Router
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleash the full power of the whole machine.
- Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, 1024-QAM, or HE160 require clients to also support the corresponding features.160 MHz bandwidth may be unavailable on the 5 GHz band in some regions/countries due to regulatory restrictions.
§Archer AX72 can connect 64 devices on the 5 GHz band, and 48 devices on the 2.4 GHz band. Performance may vary depending on the applications and environmental factors.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
**Use of MU-MIMO requires clients to also support the corresponding feature.
***This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.
****Further software upgrades for feature availability may be required.
TP-Link AX5400 Wi-Fi 6 Router Specifications | |
---|---|
Wireless | |
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) |
WiFi Speeds | AX5400 • 5 GHz: 4804 Mbps (HE160) • 2.4 GHz: 574 Mbps |
WiFi Range | 3 Bedroom Houses 6× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
WiFi Capacity | High Dual-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 6 Streams |
Working Modes | Router Mode, Access Point Mode |
Security | |
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway |
HomeShield Security | • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
Guest Network | 1× 5 GHz, 1× 2.4 GHz |
VPN Server | OpenVPN, PPTP |
VPN Client | OpenVPN, PPTP, L2TP |
WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Hardware | |
Processor | 1 GHz Dual-Core CPU |

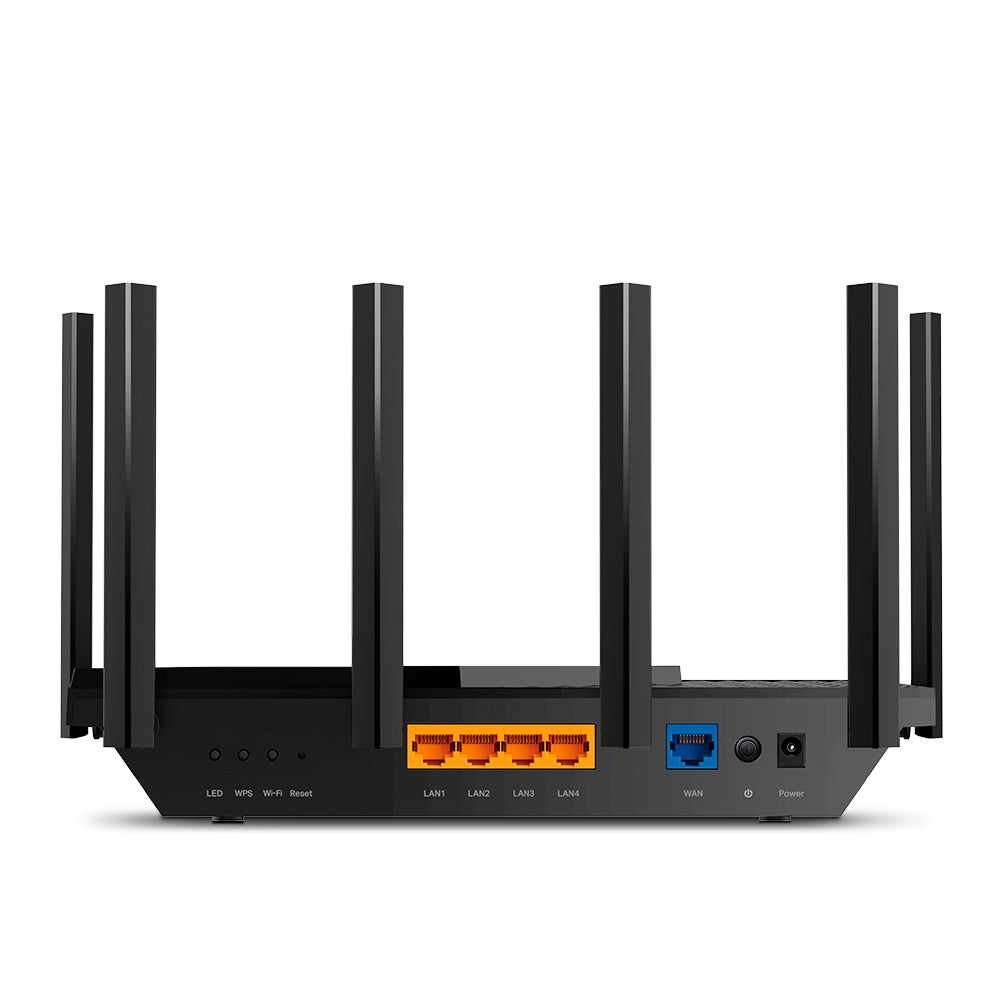

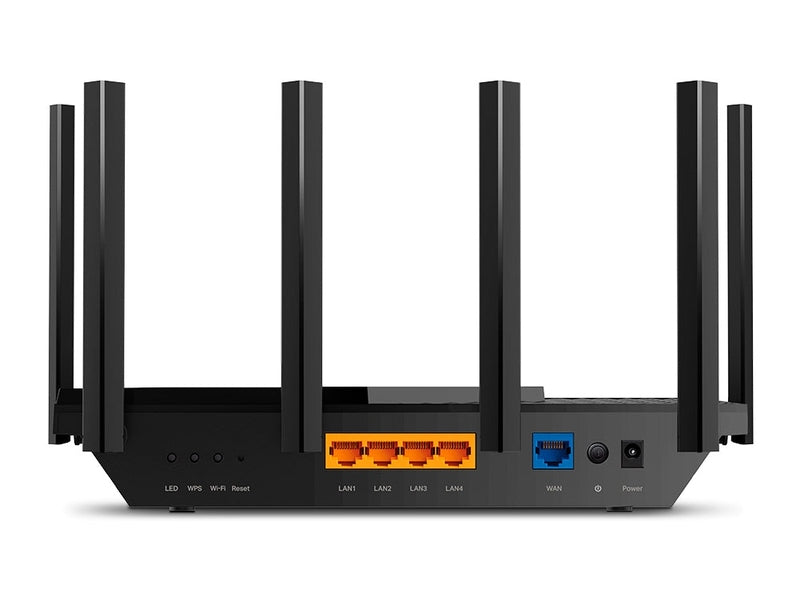

Ethernet Ports | 1× Gigabit WAN, 4× Gigabit LAN |

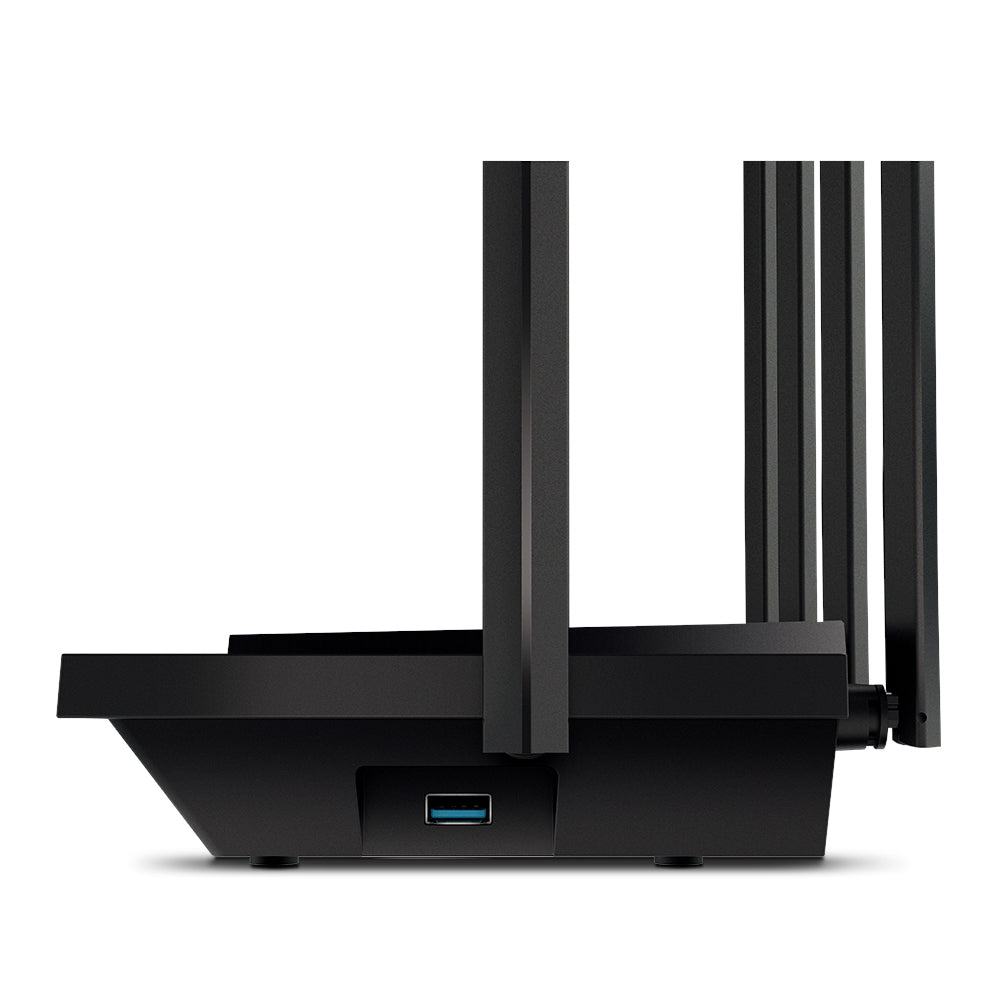

USB Support | • 1× USB 3.0 Port • Partition Formats: NTFS, exFAT, HFS+, FAT32 • Functions: Apple Time Machine, FTP Server, Media Server, Samba Server |
Buttons | Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset |
Power | 12 V ⎓ 2.5 A |
Software | |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
OneMesh™ | Supported |
Parental Controls | • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Webpage |
System Requirements | |
Browser Compatibility | Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+, or other JavaScript-enabled browser |
Connectivity | Cable or DSL Modem (if needed), ISP Subscription (for internet access) |
Certifications & Environment | |
Certifications | FCC, CE, RoHS |
Operating Temperature | 0℃ ~ 40℃ (32℉ ~ 104℉) |
Storage Temperature | −40℃ ~ 70℃ (−40℉ ~ 158℉) |
Operating Humidity | 10% ~ 90% RH (non-condensing) |
Storage Humidity | 5% ~ 90% RH (non-condensing) |
Test Data | |
WiFi Transmission Power |
CE: • <20 dBm (2.4 GHz) • <23 dBm (5.15–5.35 GHz) • <30 dBm (5.47–5.725 GHz) FCC: • <24 dBm (5.25–5.35 GHz & 5.47–5.725 GHz) • <30 dBm (2.4 GHz & 5.15–5.25 GHz & 5.725–5.825 GHz) |
WiFi Reception Sensitivity |
2.4 GHz: • 11ac VHT20 MCS0: −94.5 dBm • 11ac VHT20 MCS8: −72.5 dBm • 11ac VHT40 MCS0: −92.5 dBm • 11ac VHT40 MCS9: −69.5 dBm • 11ax HE20 MCS0: −95 dBm • 11ax HE20 MCS11: −64.5 dBm • 11ax HE40 MCS0: −92.5 dBm • 11ax HE40 MCS11: −62 dBm 5 GHz: • 11ac VHT20 MCS0: −97 dBm • 11ac VHT20 MCS8: −74 dBm • 11ac VHT40 MCS0: −95 dBm • 11ac VHT40 MCS9: −70 dBm • 11ac VHT80 MCS0: −91.5 dBm • 11ac VHT80 MCS9: −66 dBm • 11ac VHT160 MCS0: −86 dBm • 11ac VHT160 MCS9: −61 dBm • 11ax HE20 MCS0: −95 dBm • 11ax HE20 MCS11: −64 dBm • 11ax HE40 MCS0: −91.5 dBm • 11ax HE40 MCS11: −62 dBm • 11ax HE80 MCS0: −88 dBm • 11ax HE80 MCS11: −58 dBm • 11ax HE160 MCS0: −85.5 dBm • 11ax HE160 MCS11: −55 dBm |
Physical | |
Dimensions (W × D × H) | 272.5 × 147.2 × 49.2 mm (10.7 × 5.8 × 1.9 in) |
Package Contents | • Archer AX72 Wi-Fi Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
