Description
Overview
5G AX1800 Wireless Dual-Band Gigabit Router
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Plug & Play - Enjoy 5G network right after inserting a SIM card.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
- Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
5G AX1800 Wireless Dual-Band Gigabit Router
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Plug & Play - Enjoy 5G network right after inserting a SIM card.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
- Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
| TP-Link Archer NX200 5G AX1800 Router Specifications | |
|---|---|
| Hardware Features | |

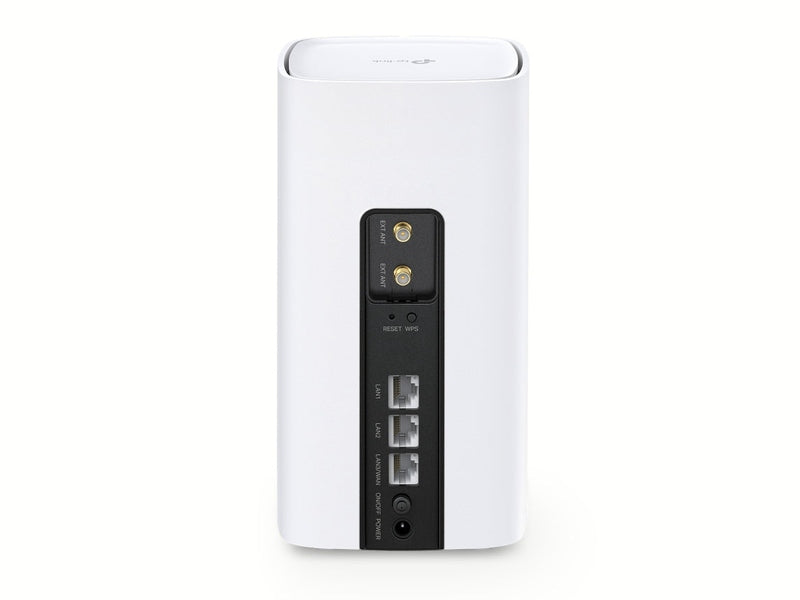

| Interface | • 1 × 10/100/1000 Mbps LAN/WAN Port • 2 × 10/100/1000 Mbps LAN Ports • 1 × Nano SIM Card Slot • 2 × External SMA-F Antenna Interface |
| Buttons | WPS, Reset, Power On/Off, Wi-Fi On/Off |
| External Power Supply | Input: 100–240V~50/60 Hz 0.6A Output: 12VDC 2A |
| Dimensions (W × D × H) | 99 × 99 × 190 mm (3.9 × 3.9 × 7.5 in) |
| Antenna | 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz |
| Reception Sensitivity |
5 GHz: 11a 54M: −80 dBm 11ax HE20: −68 dBm 11ax HE40: −65 dBm 11ax HE80: −62 dBm 11ac VHT20: −76 dBm 11ac VHT40: −72 dBm 11ac VHT80: −68 dBm 11n HT20: −79 dBm 11n HT40: −75 dBm 2.4 GHz: 11g 54M: −78 dBm 11ax HE20: −65 dBm 11ax HE40: −62 dBm 11ac VHT20: −73 dBm 11ac VHT40: −68 dBm 11n HT20: −75 dBm 11n HT40: −72 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Power | • <23 dBm (5.15–5.35 GHz) • <30 dBm (5.47–5.71 GHz) • <20 dBm (2.4 GHz) |
| Network Type | • 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 • FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 • TDD-LTE: B38/B40/B41/B42/B43 • DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 |
| Software Features | |
| Quality of Service | Device/Application-Based Traffic Prioritization |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP/MAC Binding, Access Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDNS, NO-IP |
| VPN | PPTP, IPSec, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI, IP/Domain Filter, IP/MAC Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz × 1, 5 GHz × 1 |
| Others | |
| Certification | CE, RoHS |
| Package Contents | • Archer NX200 Router • 1.5m Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| System Requirements | • Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10 • macOS, NetWare, UNIX, Linux • Java-enabled browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+ • Nano SIM Card |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–70°C (−40–158°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
