Description
Overview

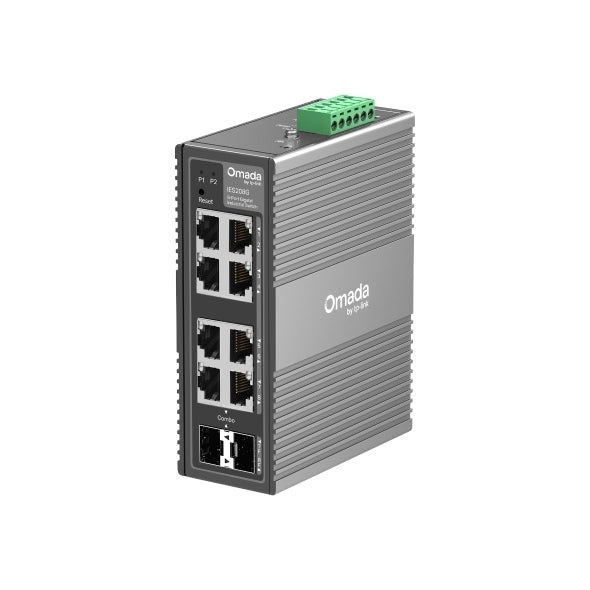

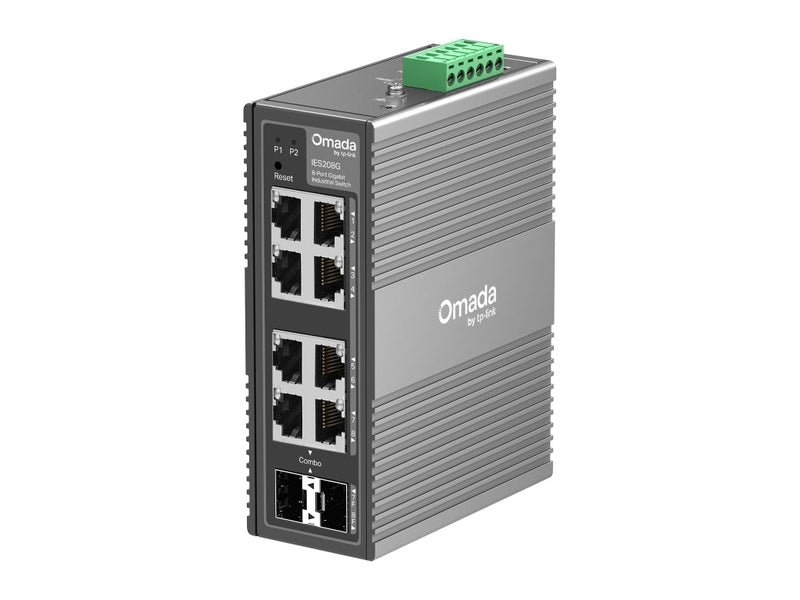

IES208G
Omada 8-Port Gigabit Industrial Easy Managed Switch

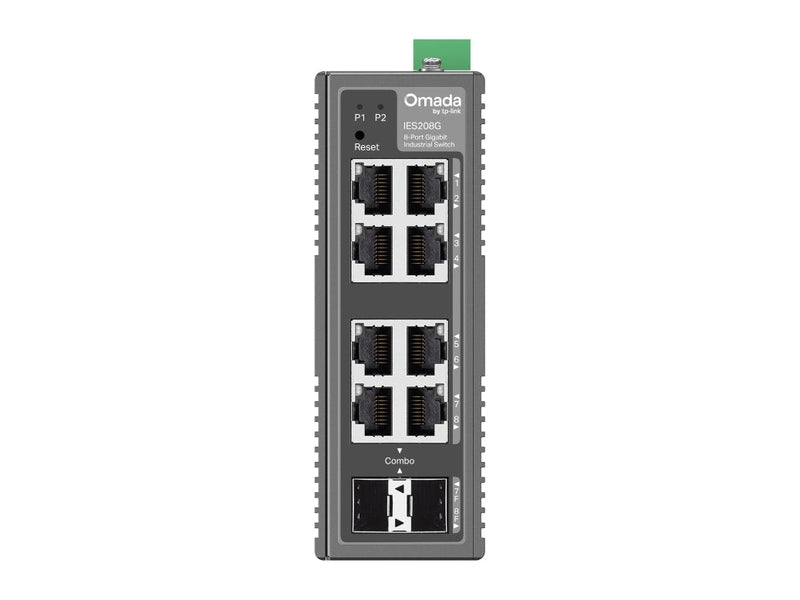

- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App†

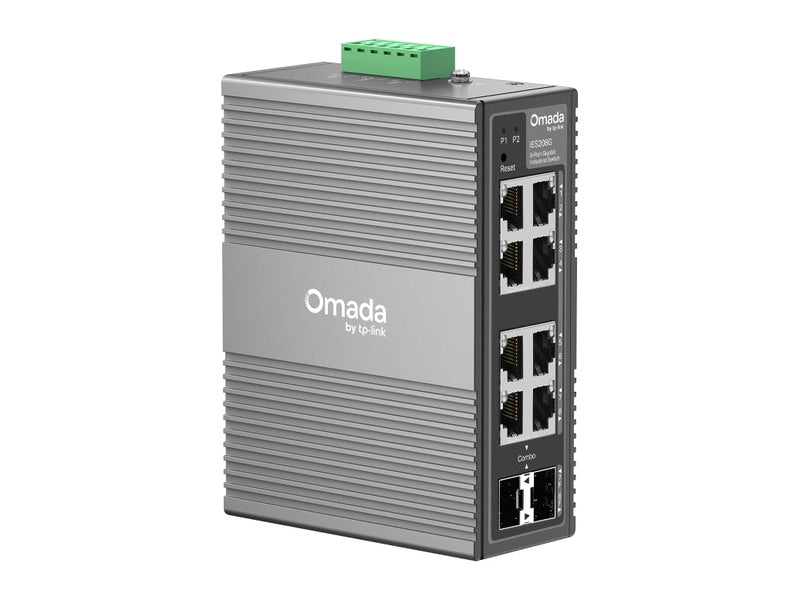

- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
IES208G
Omada 8-Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
| TP-Link IES208G Industrial Gigabit Switch Specifications | |
|---|---|
| Hardware Features | |
| Interface | • 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | DIN-Rail Mounting / Wall Mounting |

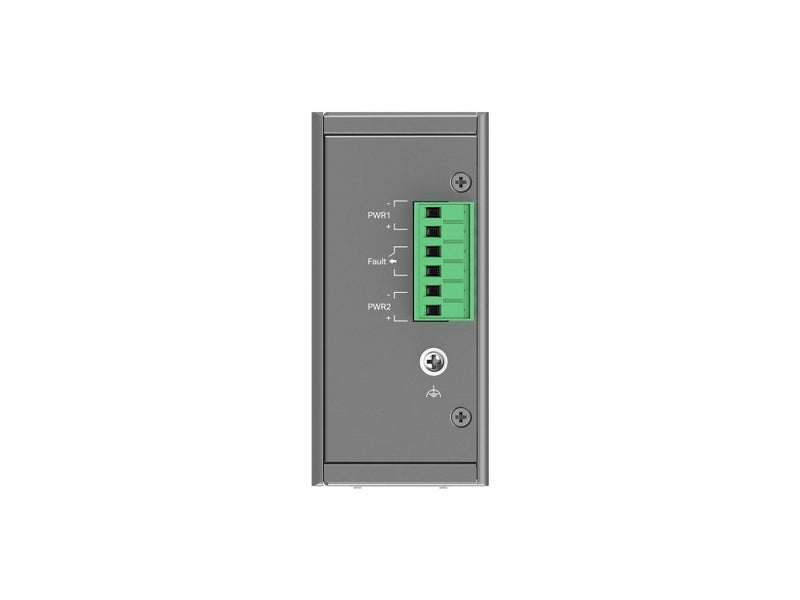

| Power Supply | 9.6–60 V DC, 1+1 Redundant Input |
| Dimensions (W × D × H) | 129 × 95 × 45 mm (5.1 × 3.7 × 1.8 in) |
| Surge Protection | • ±6 kV (Ethernet Ports, Common Mode) • ±4 kV (DC Power Input Ports, Common Mode) |
| Performance | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Software Features | |
| Quality of Service (QoS) | • 802.1p DSCP Priority • 8 Priority Queues • WRR Scheduling • Queue Weight Configuration • Port-Based Rate Limiting • Storm Control (kbps/pps for Broadcast/Multicast/Unknown-Unicast) |
| L2 Features | • Static Link Aggregation (2 groups, up to 4 ports/group) • Loopback Detection • 802.3x Flow Control • Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both) • Port Statistics • LLDP (802.1ab) • STP (802.1d), RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping v1/v2/v3 • Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN (Max 32 Groups, 4K VID) |
| Transmission Method | Store-and-Forward |
| Management Features | |
| Omada App | Yes (requires Omada Controller) |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes (via Omada Controller) |
| Zero-Touch Provisioning | Yes (via Omada Cloud-Based Controller) |
| Management Tools | • Web GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Auto Device Discovery • Batch Configuration & Firmware Upgrade • Unified Configuration |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | • IES208G Switch • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | |
| Operating Temperature | −40°C to 75°C (−40°F to 167°F) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
