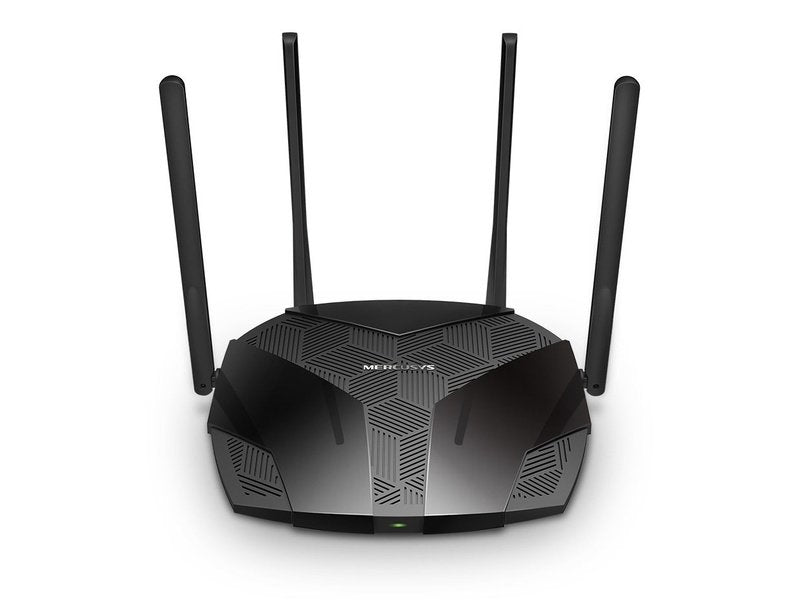

AX1800 Dual-Band WiFi 6 Router [MR70X]
- Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
- 4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect – Intelligently chooses the best available band for each device
- Access Point Mode – Extends a wired network and makes it wireless
Specifications
Category | Details |
---|---|
Wireless | |
Wireless Standards | Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards |
Signal Rate | 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
Reception Sensitivity |
11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7:-74dBm 11n HT20 MCS7:-77dBm 11a 6Mbps:-94dBm 11a 54Mbps:-76dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS8:-68dBm 11ac VHT80 MCS8:-65dBm |
Transmission Power |
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
Wireless Security |
WEP WPA / WPA2-Personal WPA2 / WPA3-Personal |
Wireless Functions | Enable/Disable Wireless Radio, WMM |
Software | |
Operation Modes |
Router Mode Access Point Mode |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control Local Management Remote Management |
DHCP | Server, DHCP Client List |
NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security | SPI Firewall, IP and MAC Address Binding |
Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
VPN Sever | OpenVPN, PPTP supported |
Hardware | |
Dimensions | 8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) |
Interfaces | 1× Gigabit WAN Port + 3× Gigabit LAN Ports |
Button | Reset/WPS Button |
Antenna Type | 4× 5 dBi Fixed Omni-Directional Antennas |
Others | |
Package Contents |
• AX1800 Wi-Fi 6 Router MR70X • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable |
Environment | |
Operating Temperature |
0°C~40°C (32°F~104°F) |
Operating Humidity | 10%~90% Non-Condensing |
Storage Humidity | 5%~90% Non-Condensing |
