Description

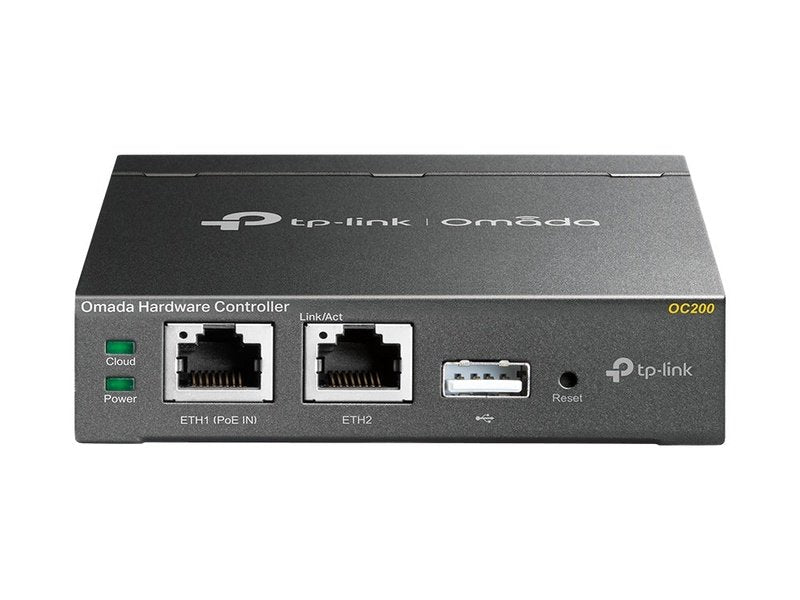

Omada Hardware Controller [OC200]
- Centralised Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
- Easier Network Maintenance: WiFi heatmap simulator, visualisable network report, and batch & multi-site management benefit network maintenance.
Specifications
HARDWARE FEATURES | |
---|---|
Interface | • 2× 10/100 Mbps Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port |
Power Supply | 802.3af/at PoE or Micro USB(DC 5V/Minimum 1A) |
Dimensions | 3.9×3.9×1.0 in (100×98×25 mm) |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 Clients Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 |
Cloud Access | Yes |
L3 Management | Yes |
Multi-site Management | Yes |
Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable |
System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
