Description
Overview

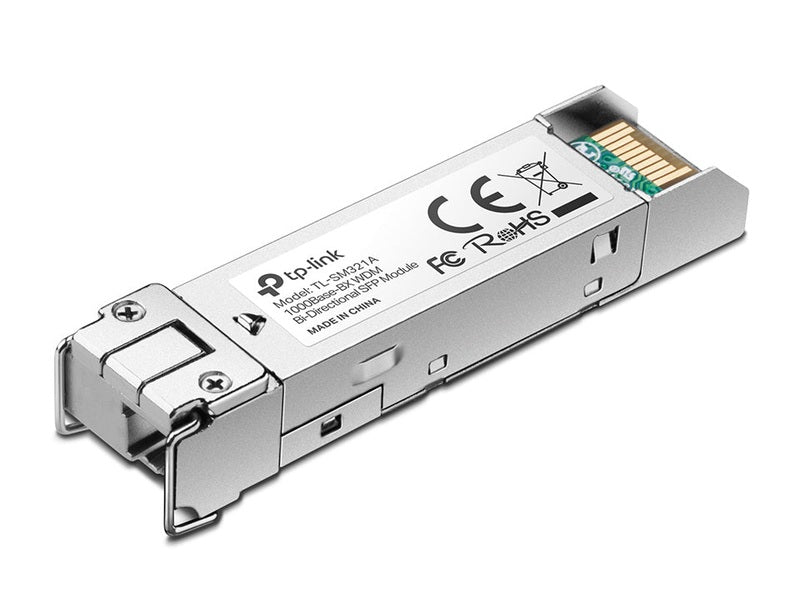

1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
| TL-SM321A / SM321A SFP Transceiver Specifications | |
|---|---|
| Hardware Features | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Media Converter & Module | |
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1550 nm RX: 1310 nm |
| Dimensions (W × D × H) | 55.4 × 14.6 × 12.9 mm (2.2 × 0.6 × 0.5 in) |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 km |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Environment | |
| Operating Temperature | 0–70°C (32–158°F) |
| Storage Temperature | −40–85°C (−40–185°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 5% to 90% RH (Non-condensing) |
| Package Content | |
| Included Items | • SM321A Transceiver • SFP Module TL-SM321A • Installation Guide |
