Overview

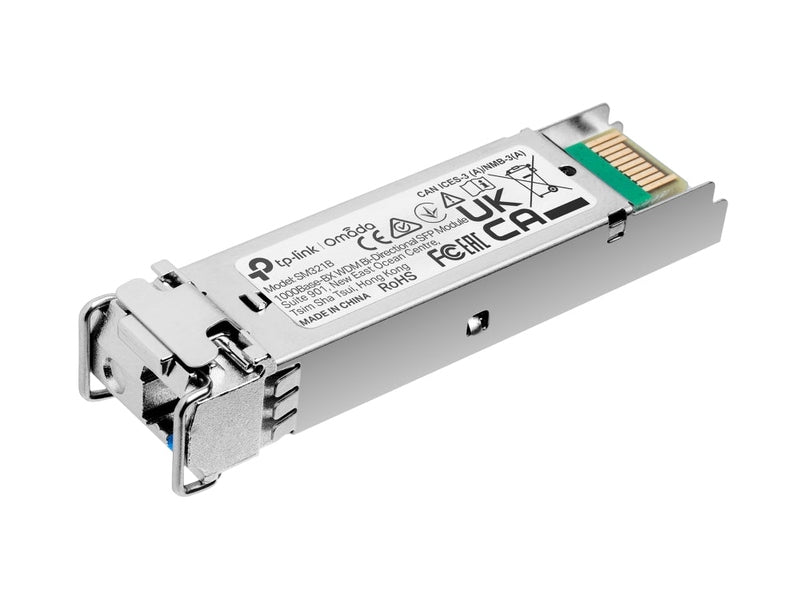

Omada 1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Omada 1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
SM321B SFP Transceiver Specifications | |
---|---|
Media Converter & Module | |
Standards and Protocols | IEEE 802.3z, TCP/IP |
Wave Length | TX: 1310 nm RX: 1550 nm |
Dimensions (W × D × H) | 55.4 × 14.6 × 12.9 mm (2.2 × 0.6 × 0.5 in) |
Power Supply | 3.3 V |
Safety & Emission | FCC, CE |
Cable | Single-Mode Fiber |
Fiber Type | 9/125 μm Single-Mode |
Max. Cable Length | 20 km |
Data Rate | 1.25 Gbps |
Port Type | LC Simplex |
Hardware Features | |
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Environment | |
Operating Temperature | 0–70°C (32–158°F) |
Storage Temperature | −40–85°C (−40–185°F) |
Operating Humidity | 10% to 90% RH (Non-condensing) |
Storage Humidity | 5% to 90% RH (Non-condensing) |
Package Content | |
Included Items | • SM321B Transceiver • Installation Guide |
