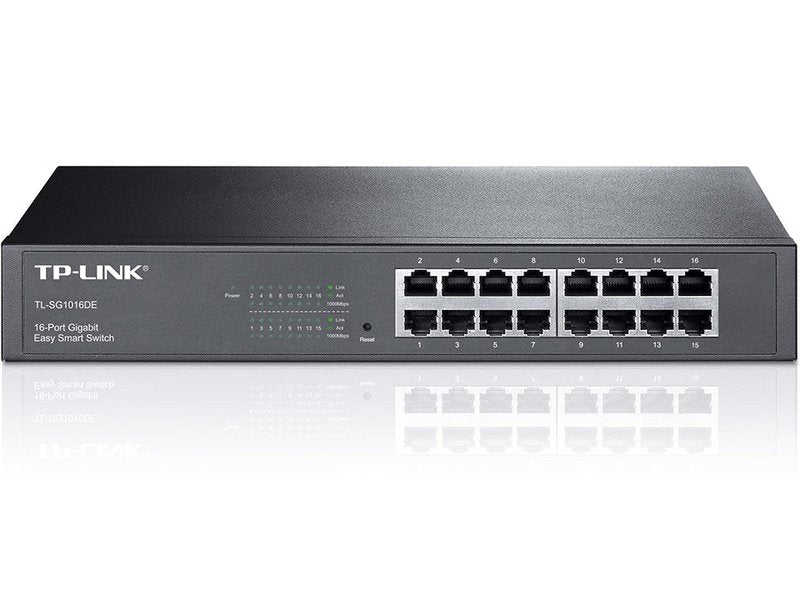

TP-Link TL-SG1016DE 16-Port Gigabit Smart Switch

TP-LinkSKU: TL-SG1024DE

  • Ports: 16× Gigabit RJ45 ports
  • Management Features: Network Monitoring, Traffic Prioritization, Loop Prevention, VLAN Support
  • Energy Saving: Green Ethernet technology reduces power consumption
  • Configuration: Web-based Management Interface and Configuration Utility
  • Deployment: Plug and Play installation

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$162.00
1

Estimate shipping

Description

TP-Link TL-SG1016DE 16-Port Gigabit Smart Switch



    What This Product Does

    The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 18% of power consumption, making it an eco-friendly solution for your business network.

    Effective Management

    TP-LINK’s Gigabit Easy Smart switch, TL-SG1016DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

    Go Green With Your Ethernet

    You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1016DE 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    Power down Idle Ports

    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016DE can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

    Power Budget According to Cable Length

    Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016DE analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    Ease to Use

    TL-SG1016DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.



    Specifications

    Hardware Features
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interface 16 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    100BASE-TX: UTP category 5, 5e cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    Fan Quantity Fanless
    Physical Security Lock No
    Power Supply 100-240VAC, 50/60Hz
    Dimensions (W x D x H) 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
    Mounting Rack Mountable
    Max Power Consumption 10.54W (220V/50Hz)
    Max Heat Dissipation 35.94 BTU/h
    Performance
    Switching Capacity 32Gbps
    Packet Forwarding Rate 23.8Mpps
    MAC Address Table 8K
    Packet Buffer Memory 4.1Mbit
    Jumbo Frame 10KB
    Software Features
    Quality of Service Support Port-based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
    L2 Features IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
    Transmission Method Store-And-Forward
    Others
    Certification FCC, CE, RoHS
    Package Contents TL-SG1016DE
    Power Cord
    Installation Guide
    Rackmount Kit
    Rubber Feet
    System Requirements Microsoft® Windows® for running Utility
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
