TP-Link TL-SG1016PE 8-Port PoE+ 110W Smart PoE Switch with 4-Port RJ45

TP-LinkSKU: TL-SG1016PE

  • Ports: 16× Gigabit RJ45 ports
  • PoE Ports: 8× PoE+ ports
  • PoE Budget: 110W total, up to 30W per PoE+ port
  • PoE Standards: IEEE 802.3af/at compliant
  • Management Features: Network Monitoring, Traffic Prioritization, VLAN Support
  • Configuration: Web-based Management Interface and Configuration Utility
  • Deployment: Plug and Play installation

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$189.00
1

Estimate shipping

Description

TP-Link TL-SG1016PE 8-Port PoE+ 110W Smart PoE Switch with 4-Port RJ45

    What This Product Does

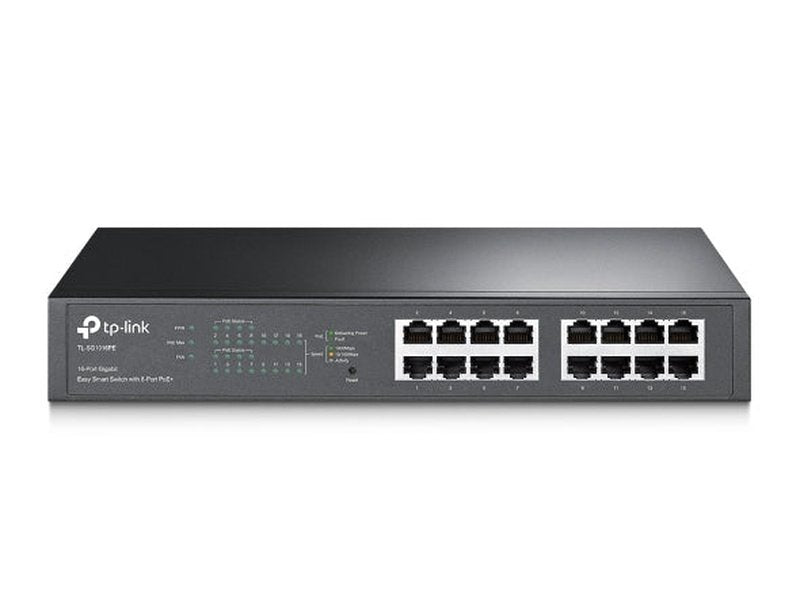

    The TL-SG1016PE is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

    How This Product Works

    8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.



    Overload Arrangement

    TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.



    Port Priority Function

    *Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.



    Easy To Use

    TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

    *PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

    **Actual power saving data may vary in different usage environments.

    Specifications

    Hardware Features
    Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interface 16 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    100BASE-TX: UTP category 5, 5e cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m)
    EIA/TIA-568 100Ω STP (max 100m)
    Fan Quantity 1
    Physical Security Lock Yes
    PoE Ports (RJ45) Standard: 802.3 at (30W)
    PoE Ports: Port 1- Port 8
    Total PoE Power Budget: 110W
    Dimensions (W x D x H) 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
    Mounting 13" and 19" 1U rack mountable
    Max Power Consumption 14.7W (no PD load)
    131.4W (with 110W PD load)
    Max Heat Dissipation 50.2 BTU/h (no PD load)
    448.4 BTU/h (with 110W PD load)
    Performance
    Switching Capacity 32Gbps
    Packet Forwarding Rate 23.8Mbps
    MAC Address Table 8K
    Packet Buffer Memory 4.1Mb
    Jumbo Frame 9KB
    Software Features
    Quality of Service Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
    L2 Features IGMP Snooping V1/V2/V3
    Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
    Management Web-based GUI
    Easy Smart Configuration Utility
    POE Auto Recovery
    Transmission Method Store-And-Forward
    Others
    Certification FCC, RoHS
    Package Contents TL-SG1016PE
    Power Cord
    Installation Guide
    Rackmount Kit
    Rubber Feet
    Environment Operating Temperature: 0℃40℃ (32℉104℉)
    Storage Temperature: -40℃70℃ (-40℉158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
