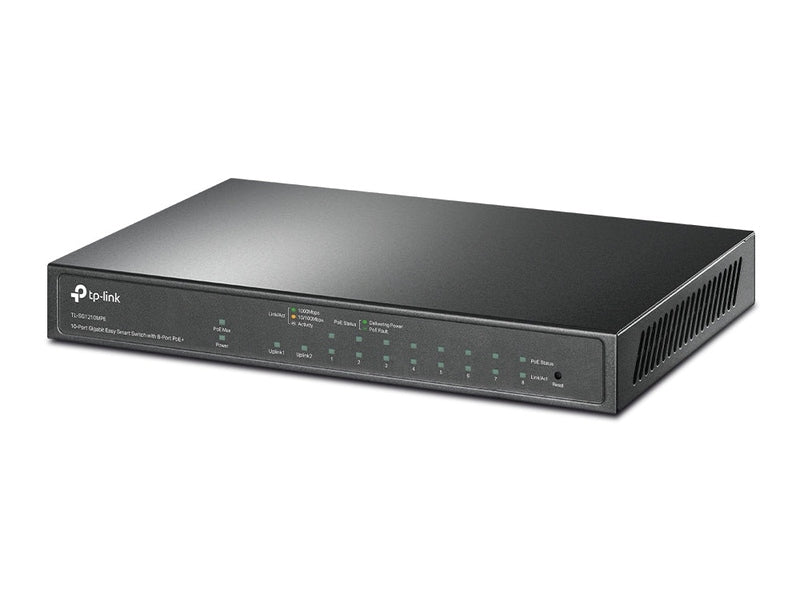

TP-Link TL-SG1210MPE 8-Port PoE+ 123W Gigabit Easy Smart Switch with 1-Port RJ45 and 1x Combo SFP/RJ45 Slots

TP-LinkSKU: TL-SG1210MPE

  • Ports: 9× Gigabit RJ45 ports and 1× Gigabit Combo SFP/RJ45 port
  • PoE Ports: 8× IEEE 802.3af/at PoE+ ports

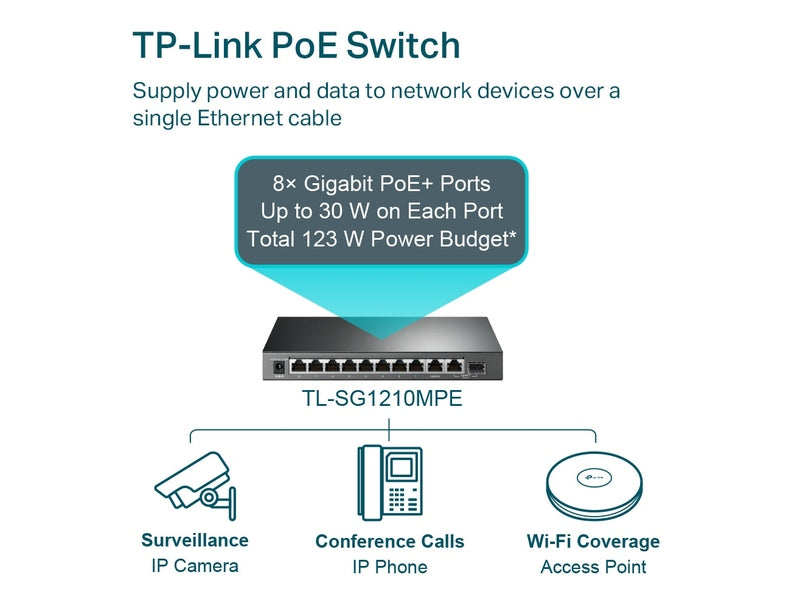

  • PoE Budget: 123W total, up to 30W per PoE+ port
  • Management Features: Network Monitoring, Traffic Prioritization, VLAN Support, PoE Auto Recovery
  • Configuration: Web-based Management Interface and Easy Smart Configuration Utility
  • Design: Fanless operation for silent and energy-efficient performance

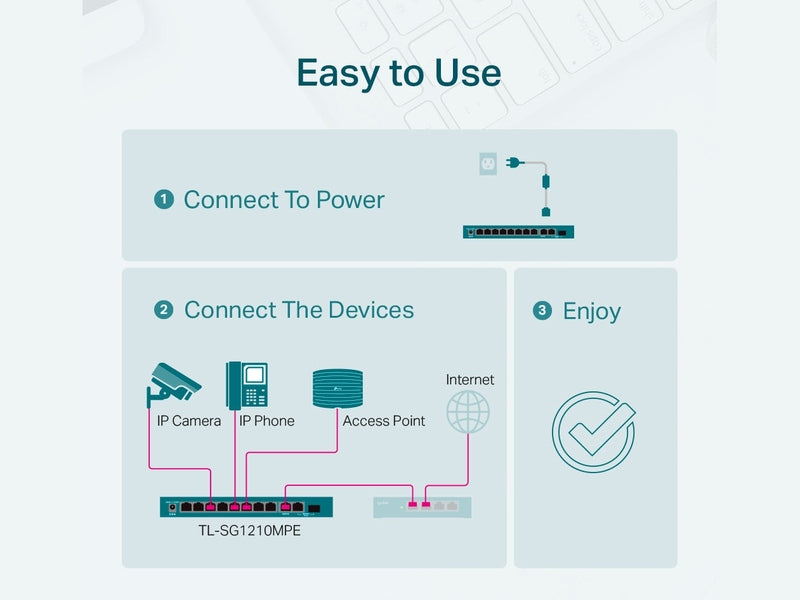

  • Deployment: Plug and Play installation

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$175.00
1

Estimate shipping

Description

TP-Link TL-SG1210MPE 8-Port PoE+ 123W Gigabit Easy Smart Switch with 1-Port RJ45 and 1x Combo SFP/RJ45 Slots

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4 K
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE Extend Mode**

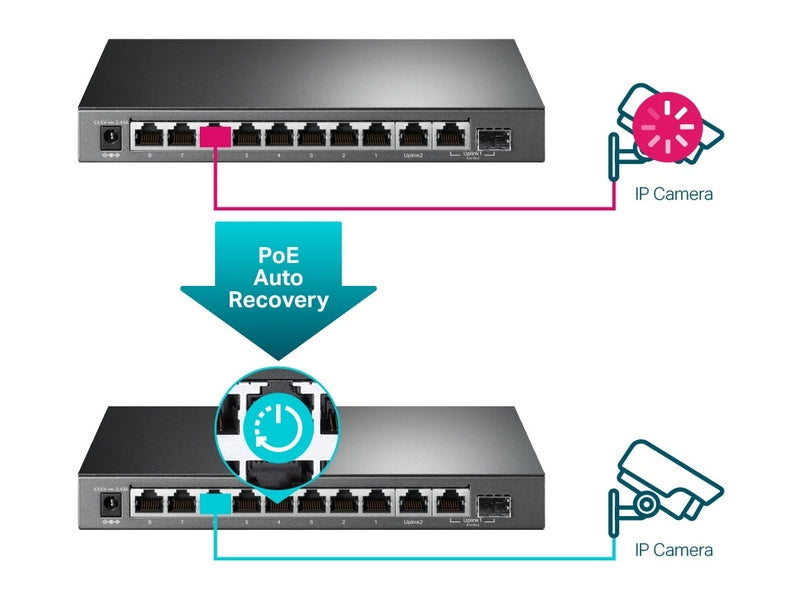

PoE Auto Recovery
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
