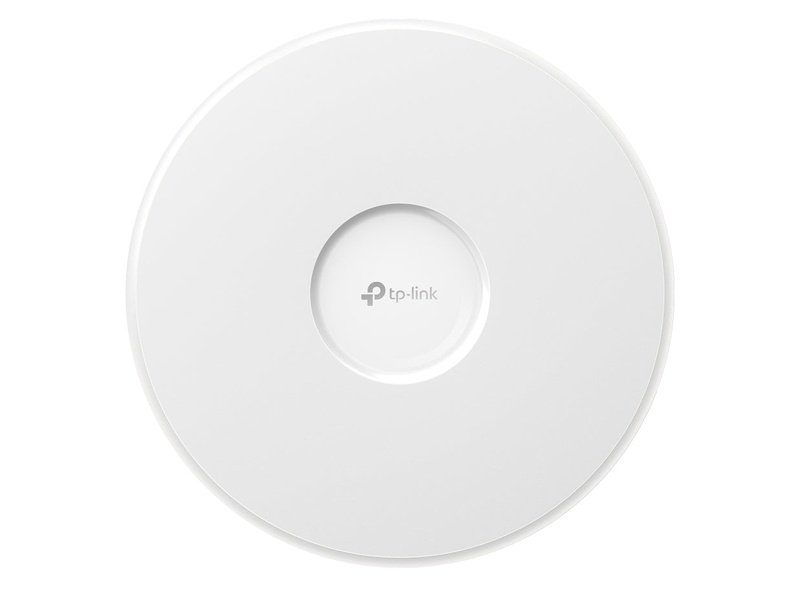

TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

TP-LinkSKU: EAP772

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$310.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point [EAP772]

  • BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
  • A clear 6 GHz band brings cleaner and wider band resources.
  • 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
  • 320 MHz bandwidth enables many more simultaneous transmissions.
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network.
  • Advanced Functions: Centralized management, mesh, and AI roaming.

Specifications

HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/2.5A DC
Power Consumption • 25.44 W (For PoE);
• 22.57 W (For DC)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Wireless Client Capacity 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions • MLO
• 4K-QAM
• MU-MIMO
• EHT320
• Mesh
• BSS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25dBm (2.4GHz)
< 25dBm (5GHz)
< 23dBm (6GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP772
• Installation Guide
• Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
