Description
Overview

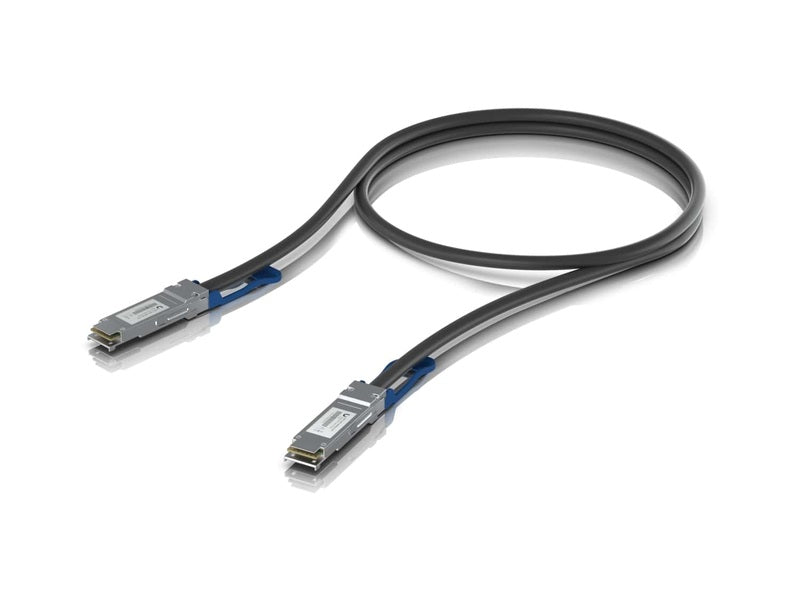

100G Direct Attach Cable
UACC-DAC-QSFP28-0.5M
QSFP28 direct attach cable with a 100 Gbps max data rate.
Supported data rates: 100 / 40 Gbps
Compatible with QSFP28 and QSFP+ interfaces
Cable length: 0.5 to 3 m
100G Direct Attach Cable
UACC-DAC-QSFP28-0.5M
QSFP28 direct attach cable with a 100 Gbps max data rate.
Supported data rates: 100 / 40 Gbps
Compatible with QSFP28 and QSFP+ interfaces
Cable length: 0.5 to 3 m
| UACC-DAC-QSFP28-0.5M Specifications | |
|---|---|
| Product Type | Passive Direct Attach Cable (DAC) |
| Connector Type | QSFP28 to QSFP28 |
| Cable Length | 0.5 meters (1.6 feet) |
| Supported Data Rates | 100 Gbps / 40 Gbps |
| Max Power Consumption | 2.5W |
| Wire Gauge | 30 AWG |
| Jacket Material | PVC |
| Jacket Color | Black |
| Jacket Outer Diameter | 7 mm |
| Minimum Bend Radius | 37 mm |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
| Environment | Indoor |
| Compatibility | QSFP28 and QSFP+ interfaces |
| NDAA Compliant | ✓ |
