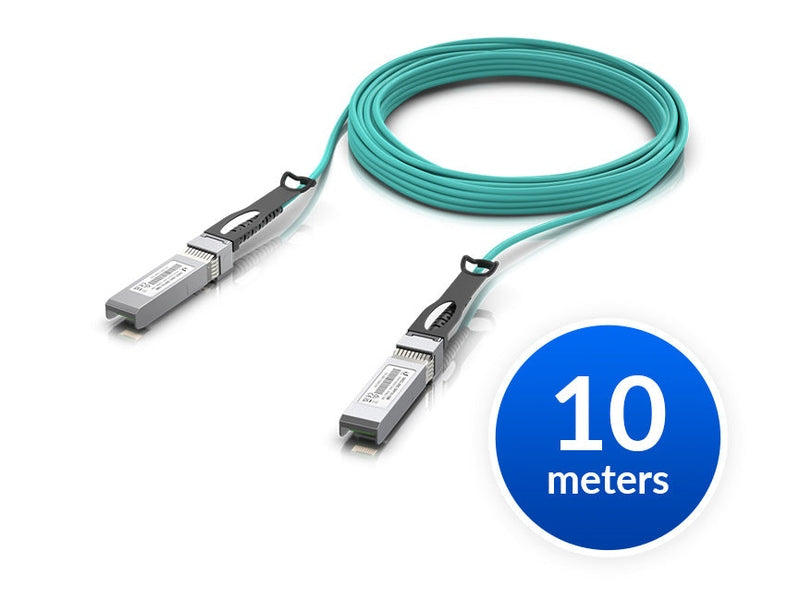

25G Long-Range Direct Attach Cable
UACC-AOC-SFP28-10M
Long-range SFP28 direct attach cable with a 25 Gbps max data rate.
Supported data rates: 25 / 10 / 1 Gbps
Compatible with SFP28, SFP+, and SFP interfaces
Cable length: 5 to 30 m
25G Long-Range Direct Attach Cable
UACC-AOC-SFP28-10M
Long-range SFP28 direct attach cable with a 25 Gbps max data rate.
Supported data rates: 25 / 10 / 1 Gbps
Compatible with SFP28, SFP+, and SFP interfaces
Cable length: 5 to 30 m
| UACC-AOC-SFP28-10M Specifications | |
|---|---|
| Product Type | 25G Active Optical Cable (AOC) |
| Connector Type | SFP28 to SFP28 |
| Cable Type | Multimode Fiber |
| Cable Length | 10 meters (32.8 feet) |
| Data Rate | 25 Gbps |
| Wavelength | 850 nm |
| Minimum Bend Radius | 7.5 mm |
| Wire Gauge | 30 AWG |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Outer Diameter | 3.0 mm |
| Jacket Color | Aqua |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Supported Standards | SFP28 MSA IEEE 802.3by (25GBASE-SR) SFF-8402 |
| Certifications | CE, FCC, RoHS, ISO9001 |
| NDAA Compliant | ✓ |
