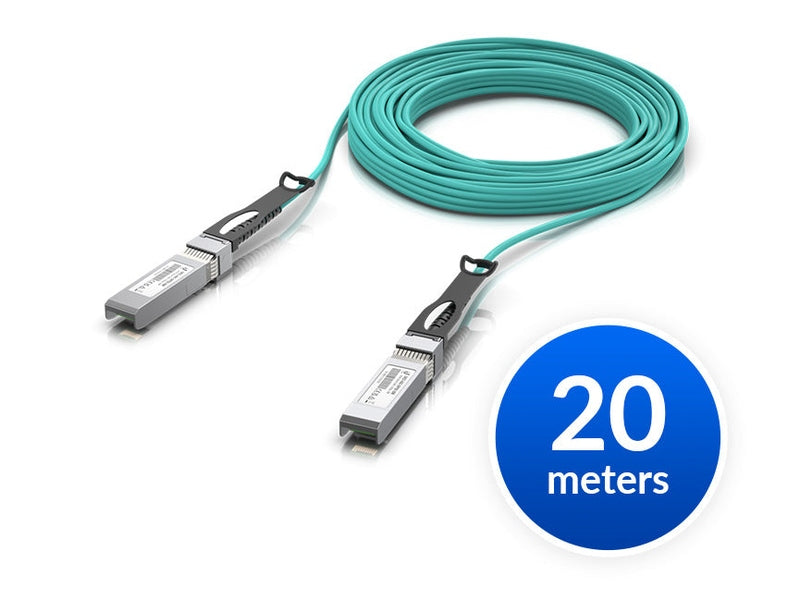

25G Long-Range Direct Attach Cable
UACC-AOC-SFP28-20M
Long-range SFP28 direct attach cable with a 25 Gbps max data rate.
Supported data rates: 25 / 10 / 1 Gbps
Compatible with SFP28, SFP+, and SFP interfaces
Cable length: 5 to 30 m
25G Long-Range Direct Attach Cable
UACC-AOC-SFP28-20M
Long-range SFP28 direct attach cable with a 25 Gbps max data rate.
Supported data rates: 25 / 10 / 1 Gbps
Compatible with SFP28, SFP+, and SFP interfaces
Cable length: 5 to 30 m
UACC-AOC-SFP28-20M Specifications | |
---|---|
Product Type | Active Optical Cable (AOC) |
Connector Type | SFP28 to SFP28 |
Cable Length | 20 meters (65.6 feet) |
Data Rate | 25 Gbps |
Wavelength | 850 nm |
Cable Type | Multimode fiber |
Jacket Material | PVC |
Jacket Outer Diameter | 3.0 mm |
Jacket Color | Aqua |
Minimum Bend Radius | 7.5 mm |
Wire Gauge | 30 AWG |
Operating Temperature | 0 to 70° C (32 to 158° F) |
Environment | Indoor |
Protocol Compliance | SFF-8402, SFP28 MSA |
NDAA Compliant | ✓ |
