Overview

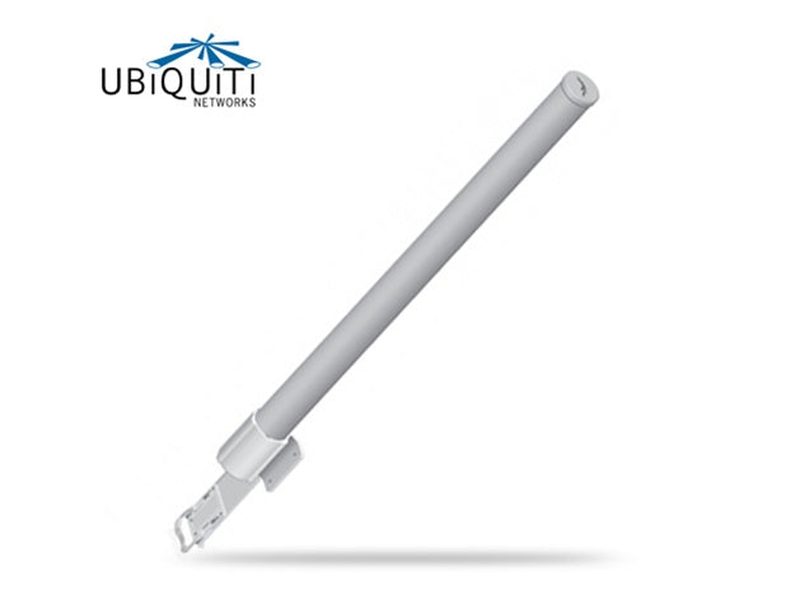

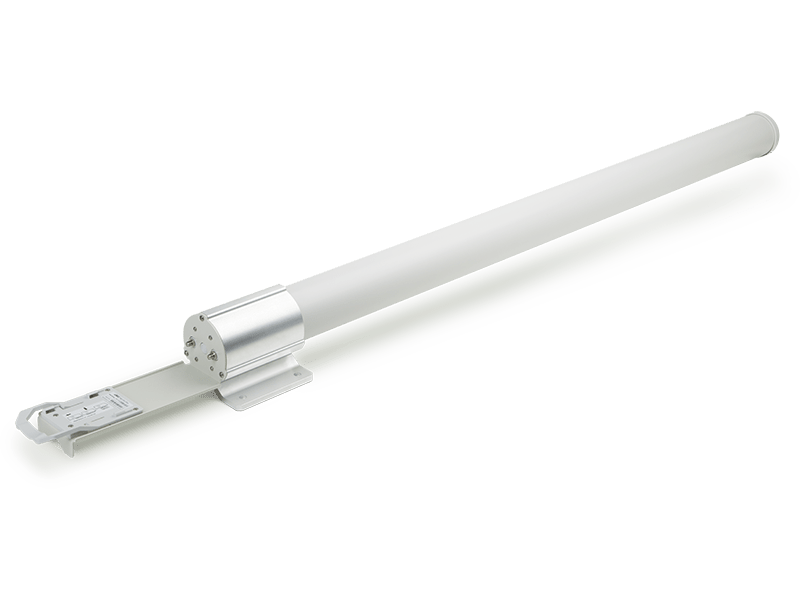

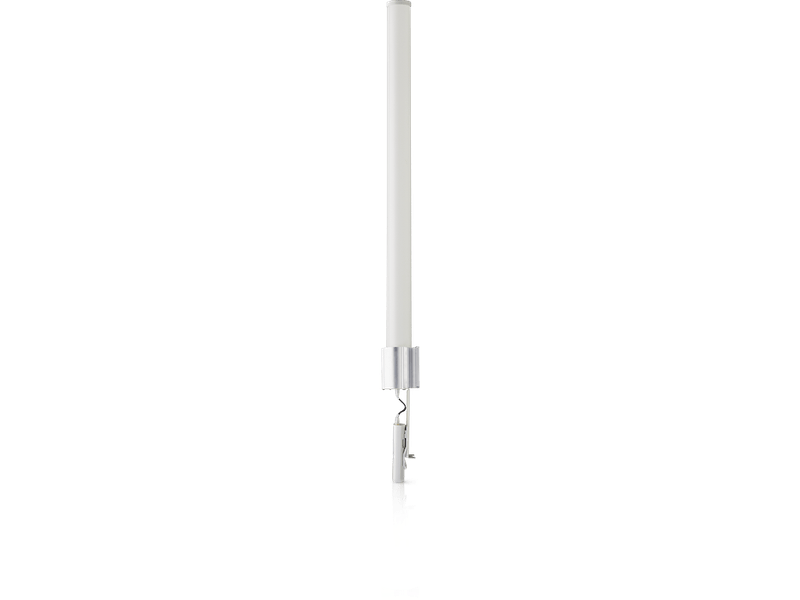

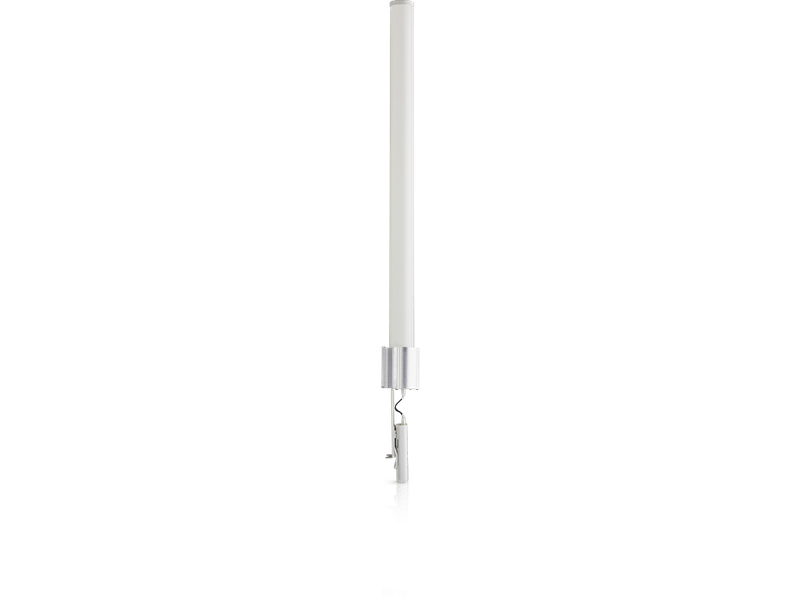

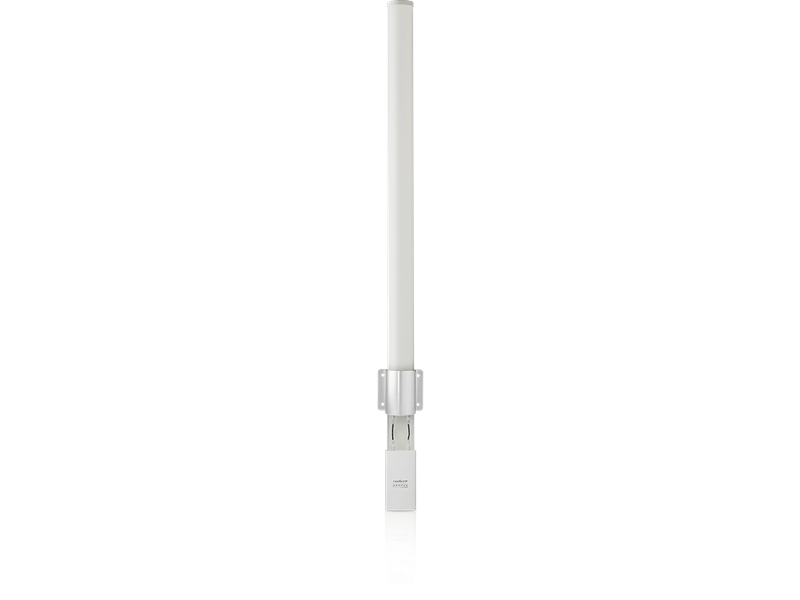

airMAX 2.4 GHz, 13 dBi, Omni
AMO-2G13
2.4 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.
airMAX 2.4 GHz, 13 dBi, Omni
AMO-2G13
2.4 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.
| AMO-2G13 Specifications | |
|---|---|
| Product Type | 2.4 GHz Omni-Directional Antenna |
| Application | Carrier-class PtMP deployments with Rocket radios |
| Compatibility | RocketM2 and other 2.4 GHz airMAX radios |
| MIMO Support | 2×2 Dual-Polarity |
| RF Characteristics | |
| Frequency Range | 2.35 – 2.55 GHz |
| Antenna Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Electrical Downtilt | 2° |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | ≥ 25 dB |
| Max VSWR | 1.7:1 |
| Mechanical | |
| Dimensions | 1390 × 122 × 105 mm (54.7 × 4.8 × 4.1") |
| Weight | 2.4 kg (5.3 lb) |
| Mounting | Universal pole mount, RocketM bracket, RF jumpers included |
| Environmental | |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 71.2 N @ 160 km/h (16 lbf @ 100 mph) |
| Installation Environment | Outdoor |
| Compliance | |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | ✓ |
