Description

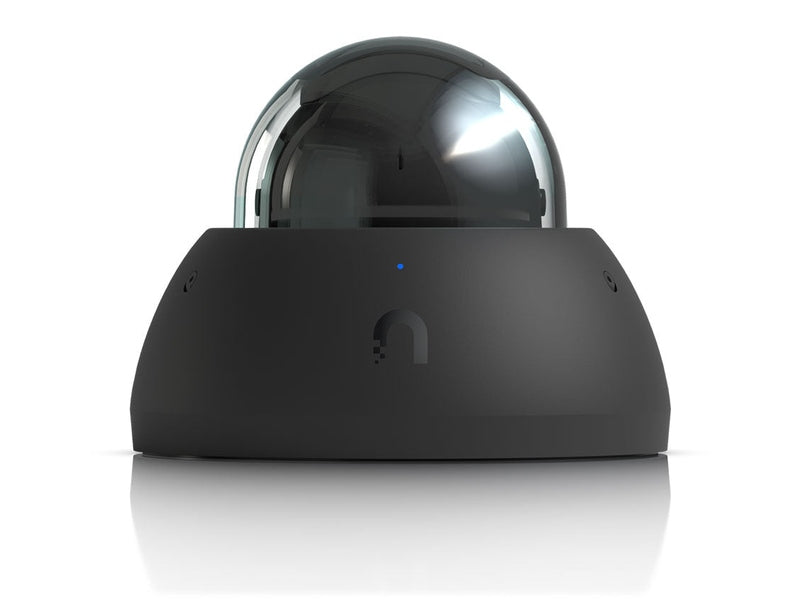

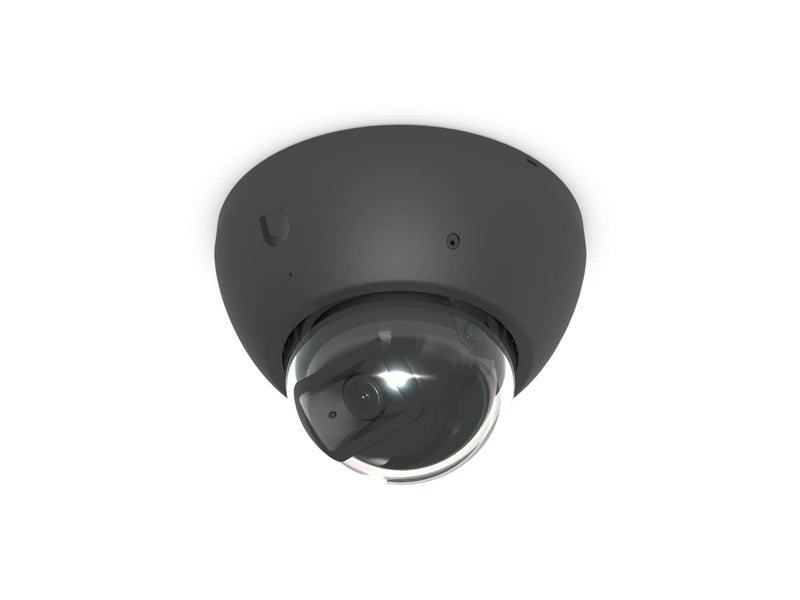

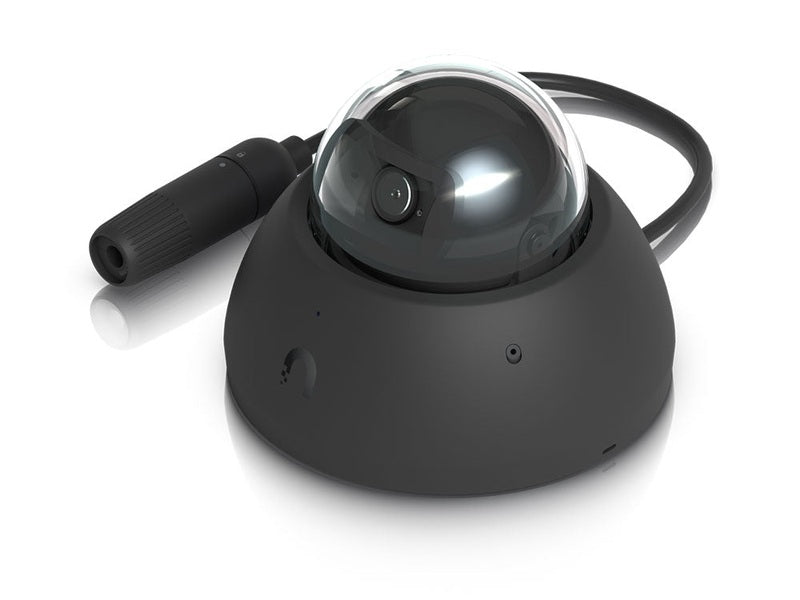

Ubiquiti UVC-AI-DOME-B AI Dome, Black, All-weather, Vandal-proof 4K PoE Dome Camera,Enhanc
Overview
AI Dome
UVC-AI-Dome-B
All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
AI Dome
UVC-AI-Dome-B
All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
UVC-AI-Dome-B Specifications | |
---|---|
Product Type | AI-powered 4K PoE Dome Camera |
Color | Black |
IR Night Vision | 40 m (131 ft) |
Smart Detection | ✓ (People, Vehicles, Animals) |
Face Recognition | ✓ |
License Plate Recognition | ✓ |
Weatherproofing | IP66 |
Tamper Resistance | IK10 |
Mounting Options | Arm, ceiling, pendant, wall, junction box |
Sensor | 1/1.8" 8MP CMOS |
Lens | Fixed focal length |
Resolution | 3840 × 2160 (16:9) |
Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
Max. Frame Rate | 30 FPS |
Night Mode | IR LED illumination + IR cut filter |
Audio | Microphone |
Video Features | HDR, 2DNR, 3DNR, motion-based NR Masking, text overlay, exposure control Color, brightness, sharpness, contrast, white balance |
Processor | Quad-core Arm® Cortex®-A53 |
Networking Interface | GbE RJ45 port |
Power Method | PoE |
Supported Voltage Range | 42.5–57V DC |
Max. Power Consumption | 10W |
Expansion Slot | MicroSD card |
Button | (1) Factory-reset |
Dimensions | Ø118 × 90.8 mm (Ø4.6 × 3.6") |
Weight | 700 g (1.5 lb) |
Enclosure Material | Aluminum alloy, polycarbonate |
Mount Material | Polycarbonate |
Cable Connector Type | RJ45 |
Cable Length | 30 cm (1 ft) |
Cable Diameter | 4.5 mm (0.2") |
Jacket Material | Thermoplastic elastomer |
Jacket Enclosure Dimensions | Ø20 × 70.6 mm (Ø0.8 × 2.8") |
Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
Operating Temperature | -30 to 50° C (-22 to 122° F) |
Operating Humidity | 0 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
