Description
Overview

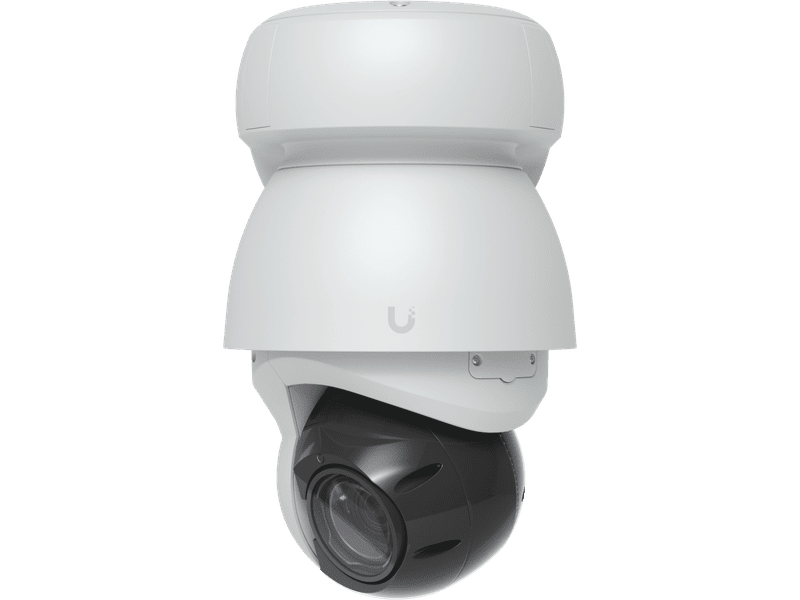

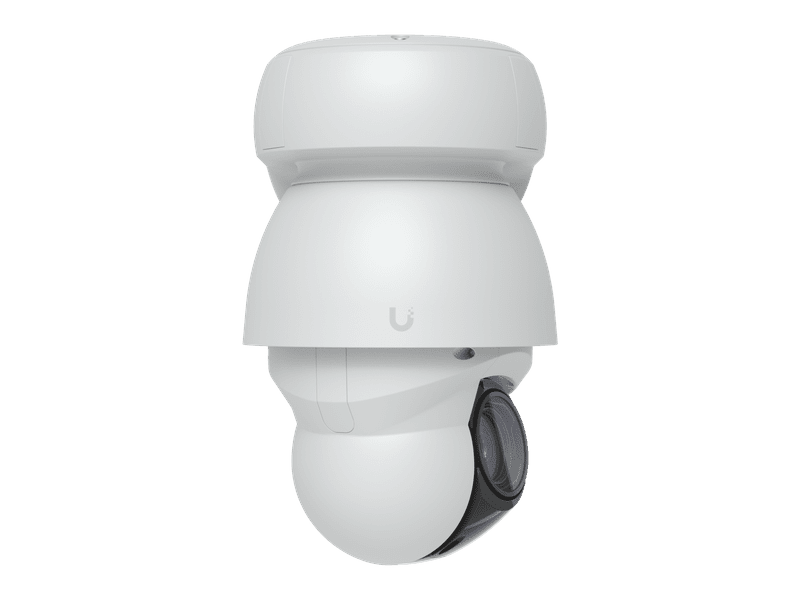

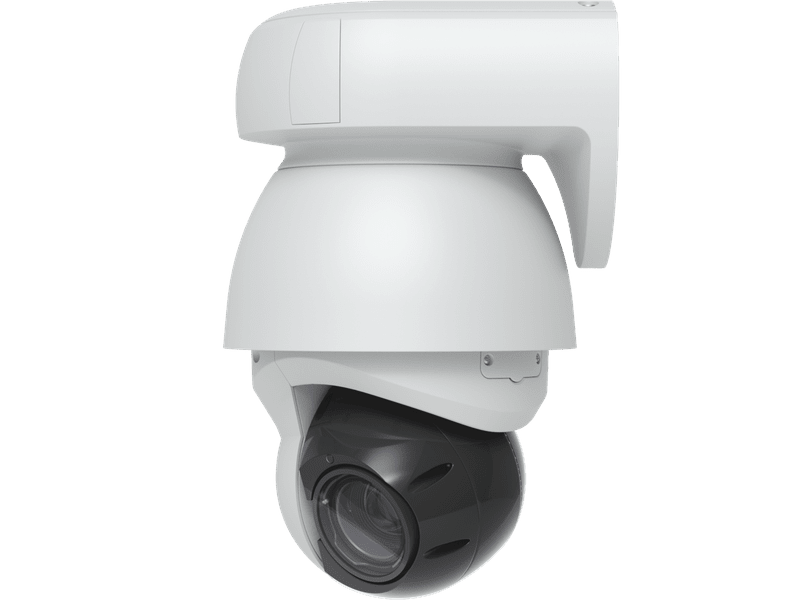

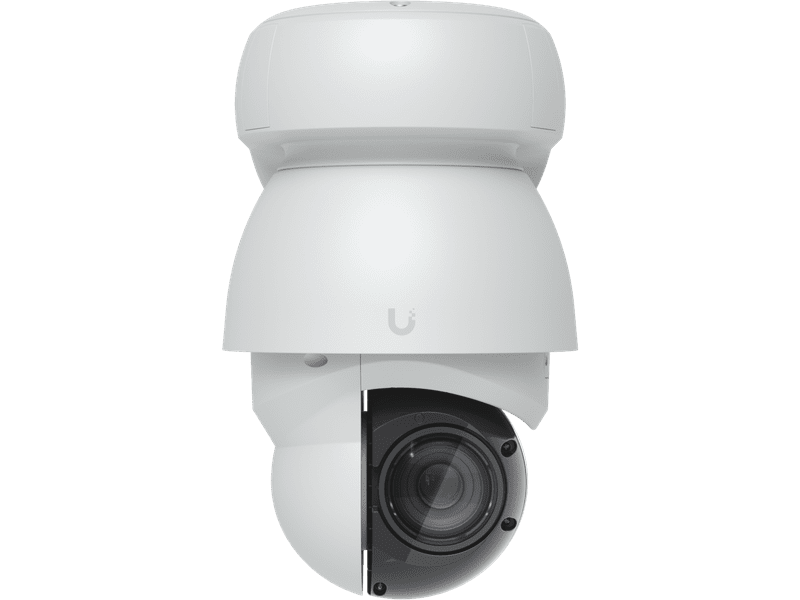

AI PTZ Industrial
UVC-AI-PTZ-W
Industrial-grade 4K PoE++ PTZ camera with enhanced AI capabilities, 22x optical zoom, and long-range adaptive IR LED night vision.
AI PTZ Industrial
UVC-AI-PTZ-W
Industrial-grade 4K PoE++ PTZ camera with enhanced AI capabilities, 22x optical zoom, and long-range adaptive IR LED night vision.
UVC-AI-PTZ-W Specifications | |
---|---|
Dimensions | 207 × 223.7 × 341.3 mm (8.2 × 8.8 × 13.4") |
Weight | Without mount: 3.8 kg (8.4 lb) Wall mount: 3 kg (6.6 lb) Table stand: 150 g (5.3 oz) Pole mount: 320 g (11.3 oz) |
Enclosure Material | Aluminum alloy, polycarbonate |
Mount Material | Powder-coated aluminum alloy |
Mounting Options | Wall, pole, desk stand (included) |
Weatherproofing | IP66 |
Sensor | 1/1.8" 8MP CMOS |
Resolution | 3840 × 2160 (4K UHD, 16:9) |
Max. Frame Rate | 30 FPS |
Lens | 6.36–138.5 mm, ƒ/1.5–ƒ/3.4 |
Optical Zoom | 22× |
Field of View | Wide: H 59.8°, V 44.4°, D 70° Tele: H 3°, V 2.24°, D 3.76° |
Pan-Tilt Range | Pan: 360° (endless), Tilt: 120° |
Night Mode | IR LED illumination + IR cut filter |
IR Range | 100 m (328 ft) |
Microphone | ✓ |
Face Recognition | ✓ |
License Plate Recognition | ✓ |
Smart Detection | ✓ (People, vehicles, animals) |
Adjustments | Color, brightness, sharpness, contrast White balance, exposure control 2DNR, 3DNR, motion-based noise reduction Masking, text overlay |
Processor | Quad-core Arm® Cortex®-A53 |
Networking Interface | 1 × GbE RJ45 port |
Power Method | PoE++ (802.3bt) |
Supported Voltage Range | 42.5–57V DC |
Max. Power Consumption | 51W |
Expansion Slot | MicroSD card |
Button | (1) Factory-reset |
Operating Temperature | -40 to 50° C (-40 to 122° F) |
Operating Humidity | 0 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
