Ubiquiti AFI-ALN-R Amplifi Alien Mesh Router - Wi-Fi 6 - 4x Gigabit Ethernet Ports, To
Overview

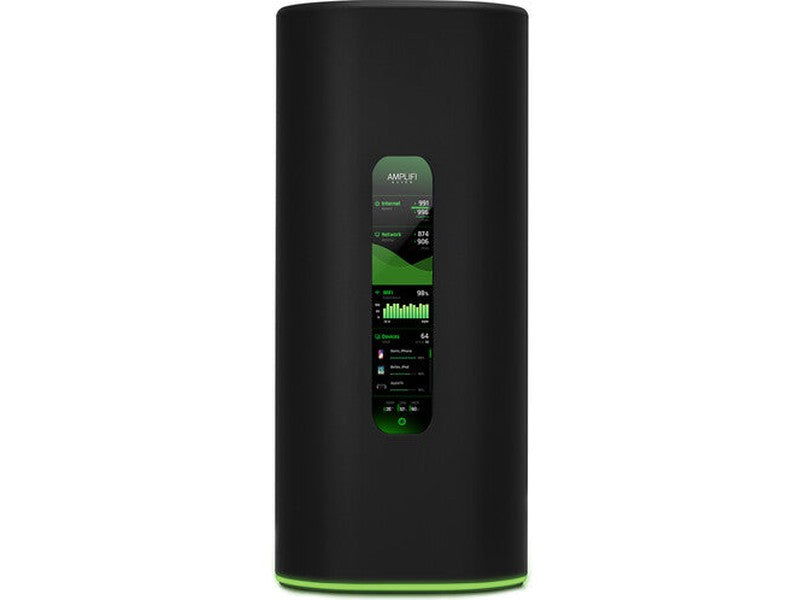

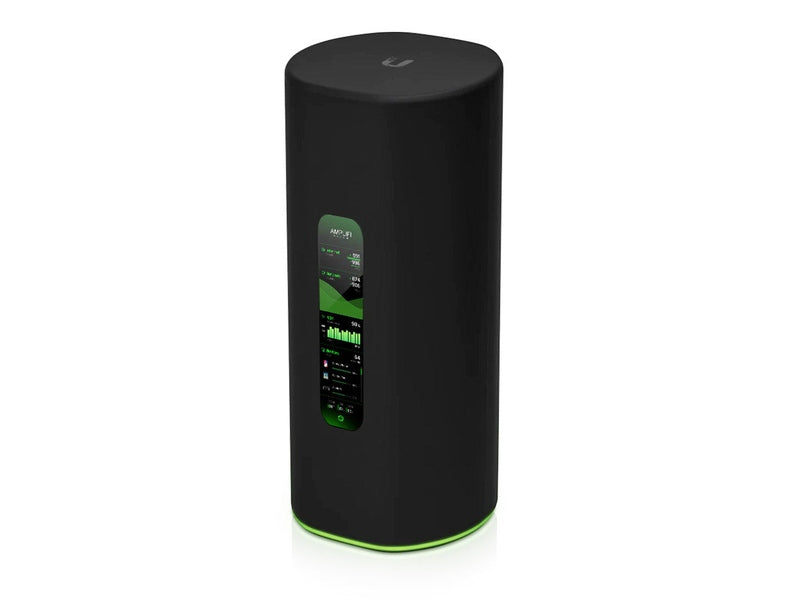

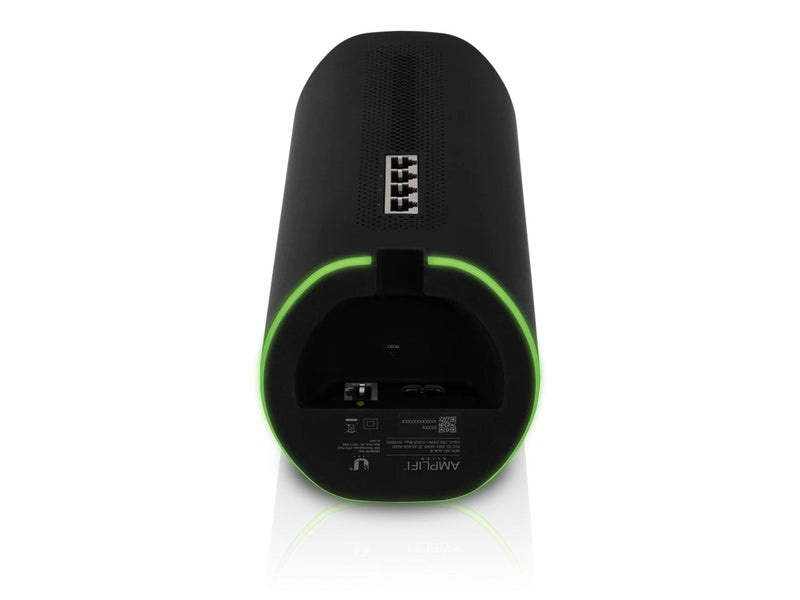

AmpliFi Alien Router
AFi-ALN-R
Experience out-of-this-world WiFi range and performance with the world's only 16-stream WiFi router.
AmpliFi Alien Router
AFi-ALN-R
Experience out-of-this-world WiFi range and performance with the world's only 16-stream WiFi router.
| AFi-ALN-R Specifications | |
|---|---|
| Product Type | Tri-Band Wi-Fi 6 Router |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), backward compatible |
| Use Case | Whole-home mesh networking with high throughput |
| Radios | 2.4 GHz: 4×4 MIMO 5 GHz Low Band: 4×4 MIMO 5 GHz High Band: 8×8 MIMO |
| Max Speeds | 2.4 GHz: 1148 Mbps 5 GHz Low Band: 1733 Mbps 5 GHz High Band: 4804 Mbps |
| Wi-Fi Features | MU-MIMO, OFDMA, Tx Beamforming WPA2 Security, Guest Network Isolation VLAN, Advanced QoS, Power Save |
| Operating Frequencies | 2.4 GHz: 2412–2472 MHz 5 GHz: 5150–5875 MHz (region-dependent) |
| Processor | Quad-Core ARM Cortex-A53 @ 2.2 GHz |
| Memory | 1 GB DDR3L |

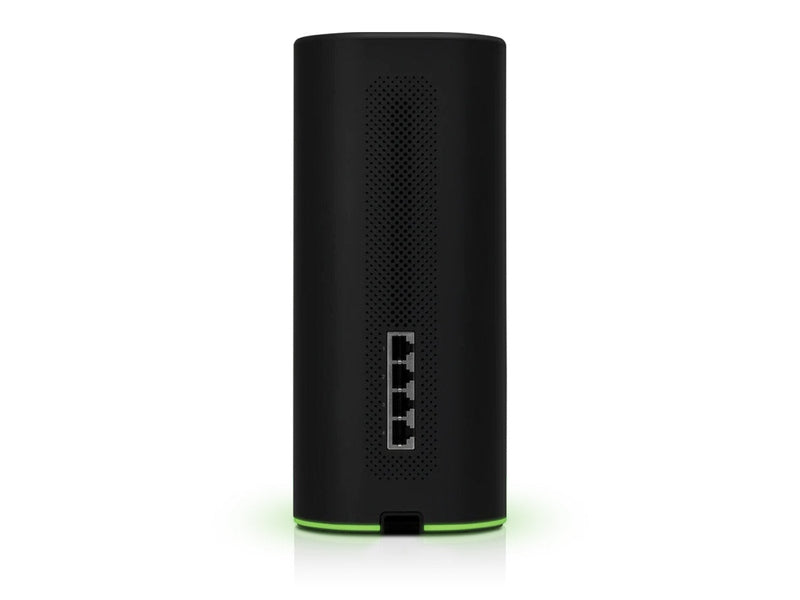

| Networking Interfaces | (1) Gigabit Ethernet WAN port (4) Gigabit Ethernet LAN ports |
| Power Method | Universal AC input, 100–240V AC, 1A, 50/60 Hz |
| Max Power Consumption | 35W |
| ESD/EMP Protection | ±24kV air/contact |
| Touchscreen Display | 4.7" diagonal 274 × 1268 resolution 279 ppi, full color, G+F touch |
| LED Indicator | Green ring |
| Button | Factory reset |
| Dimensions | 110 × 110 × 250 mm (4.3 × 4.3 × 9.8") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Material | Polycarbonate |
| Antenna Type | Internal dual-band metal stamp with 12 polarity |
| Antenna Gain | 2.4 GHz: 3 dBi / 5 GHz: 6 dBi |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
uch Screen Display, 5 GHz 8x8 WiFi 6 Radio
