Description
Overview

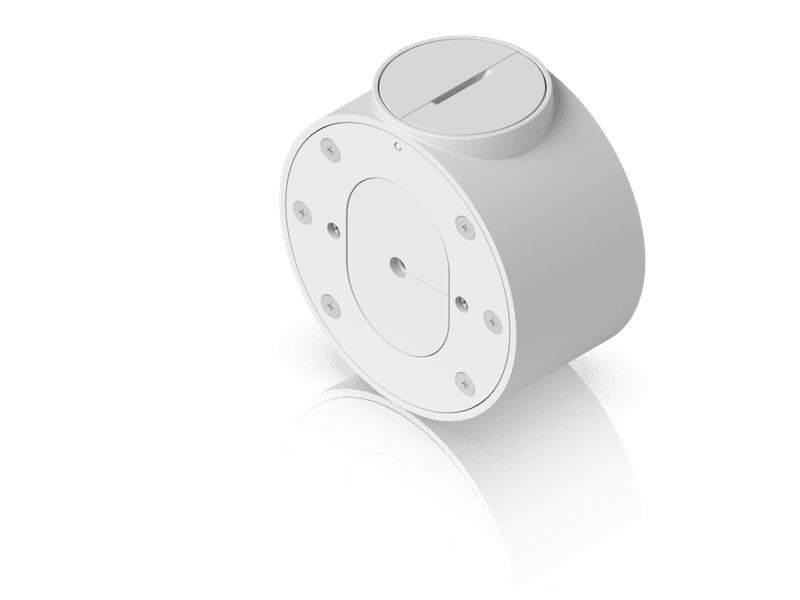

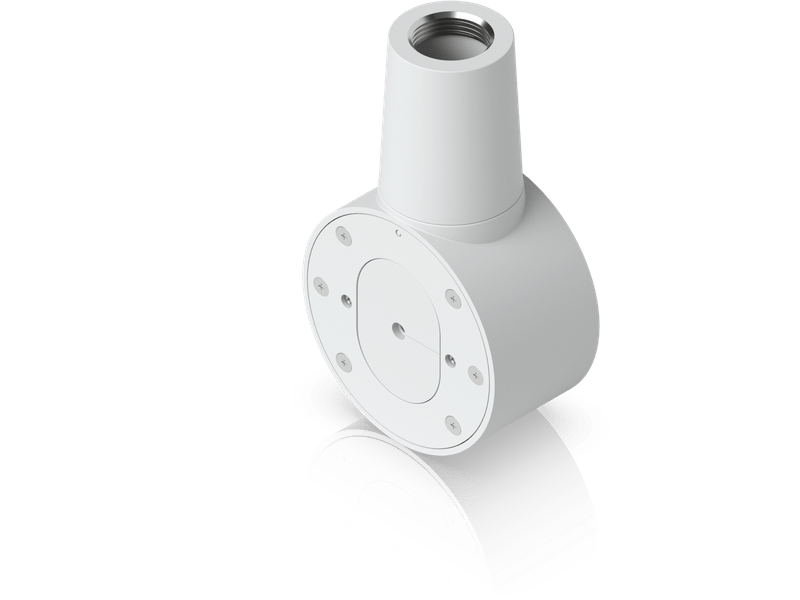

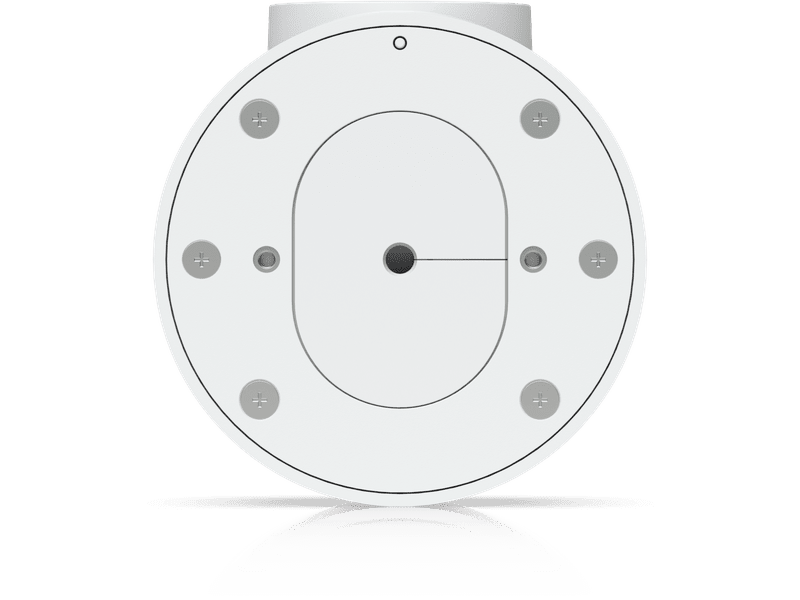

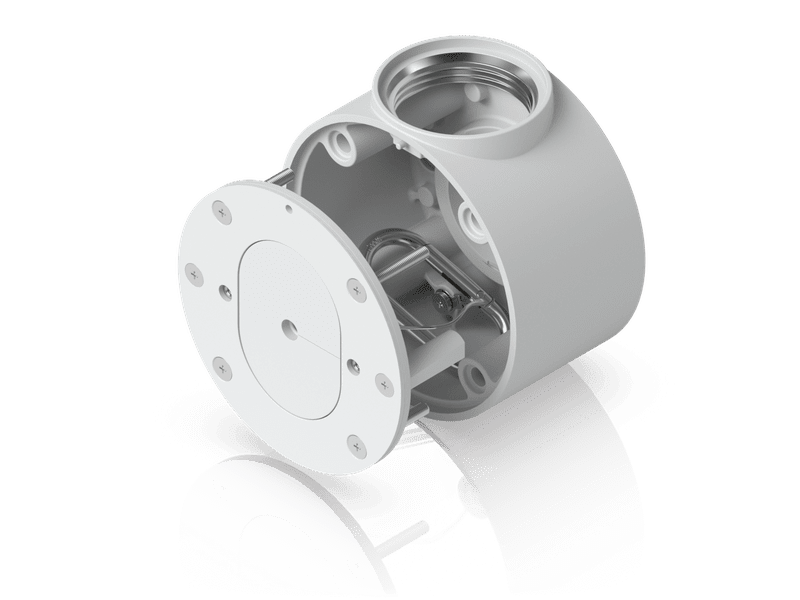

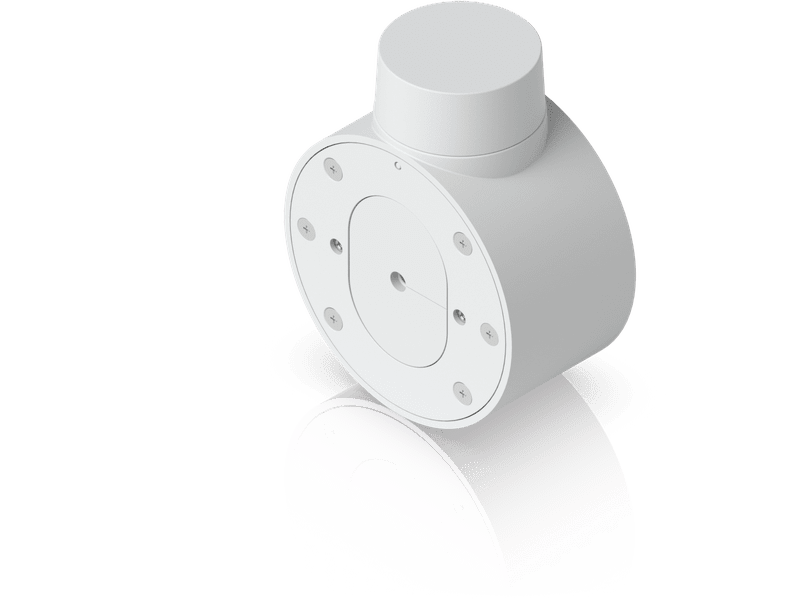

Camera Compact Junction Box
UACC-Camera-CJB-W
Tamper-resistant junction box for compact UniFi Dome and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
Compatibility
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G6-Bullet
Camera Compact Junction Box
UACC-Camera-CJB-W
Tamper-resistant junction box for compact UniFi Dome and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
Compatibility
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G6-Bullet
UACC-Camera-CJB-W Specifications | |
---|---|
Dimensions | Longer holder: 87 × 147 × 49 mm (3.4 × 5.8 × 1.9") Shorter cap: 87 × 110 × 49 mm (3.4 × 4.3 × 1.9") |
Weight | Box: 270 g (9.5 oz) Longer holder: 125 g (4.4 oz) Shorter cap: 80 g (2.8 oz) |
Enclosure Material | Aluminum alloy, polycarbonate |
Mounting Material | Aluminum alloy |
Color | White |
Mounting Options | Flat surface, pole, pendant |
Pole Mount Diameter | 1.5–2" (38–50 mm), torque: 6 Nm |
Conduit Entries | ¾" side and rear threaded outlets |
Compatible Devices | UVC-G5-Dome-Ultra UVC-G5-Turret-Ultra UVC-G6-Bullet |
Design Purpose | Tamper-resistant junction box for compact UniFi cameras |
Benefits | Improves durability, aesthetics, and maintenance access |
NDAA Compliant | ✓ |
