Ubiquiti UACC-CWDM-8 Mux Demux 8, Rack-mountable 8-channel 1450 to 1590 nm CWDM Mux Demux, For Increase Capacity Of Existing Fiber Infrastructure,

Overview

CWDM Mux Demux 8
UACC-CWDM-8

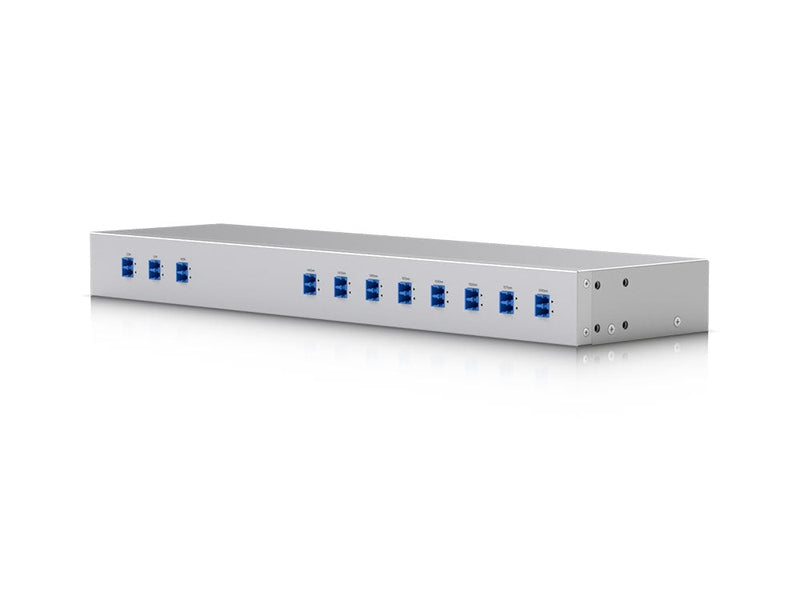

Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.

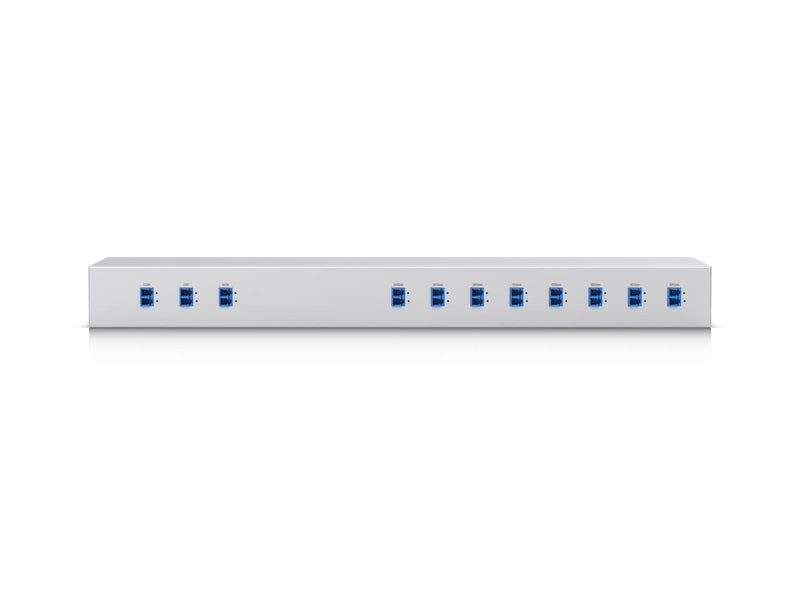

(8) 1450 to1590 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
(1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels

Compatibility: USW-Aggregation, USW-Pro-Aggregation

UACC-CWDM-8 Specifications
Dimensions	442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7")
Weight	1.4 kg (3.2 lb)
Enclosure Material	SGCC steel
Connector Type	(1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (8) Channel ports (LC/UPC)
Pigtail Type	COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC
Fiber Type	SMF-28e (Single-mode)
Fiber Length	≥ 0.5 to 1 m
Channel Count	8 CH Mux/Demux
Center Wavelengths	1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm
Min. Channel Passband	±6.5 nm
Insertion Loss	< 2.5 dB (Max)
Return Loss	≥ 50 dB
Isolation	Adjacent Channel: ≤ 30 dB Non-Adjacent Channel: ≥ 40 dB
Passband Ripple	≤ 0.3 dB
Polarization Dependent Loss	≤ 0.1 dB
Polarization Mode Dispersion	≤ 0.1 ps
Directivity	≥ 55 dB
Max. Power Handling	500 mW
Operating Temperature	-30 to 75° C (-22 to 167° F)
Storage Temperature	-40 to 90° C (-40 to 194° F)
Rack Mountable	✓
NDAA Compliant	✓
